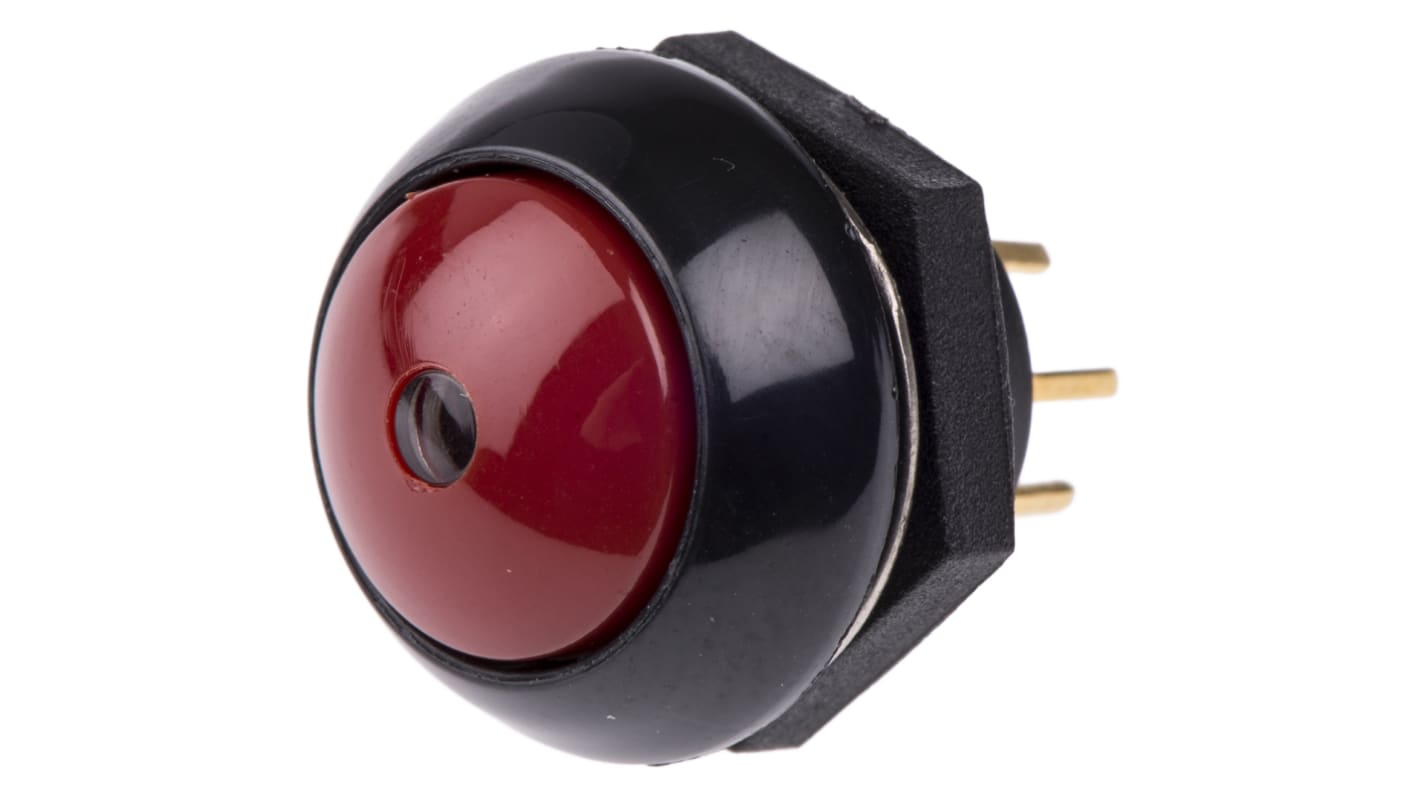

Otto P9 Series Illuminated Push Button Switch, Momentary, Panel, SPDT, Red LED, IP68S, 28 V dc 115 V ac
- RS庫存編號:
- 811-8045
- 製造零件編號:
- LP9-11231F21
- 製造商:
- Otto
暫時無法供應
抱歉，我們不知道何時會到貨。
- RS庫存編號:
- 811-8045
- 製造零件編號:
- LP9-11231F21
- 製造商:
- Otto
規格
產品概覽和技術數據資料表
法例與合規
產品詳細資訊
透過選取一個或多個屬性來查找類似產品。
選取全部 | 屬性 | 值 |
|---|---|---|
| 品牌 | Otto | |
| Product Type | Push Button Switch | |
| Switch Operation | Momentary | |
| Actuator Colour | Red | |
| Illuminated | Yes | |
| Series | P9 | |
| Mount Type | Panel | |
| Contact Configuration | SPDT | |
| Terminal Type | PCB Pin | |
| LED Colour | Red | |
| IP Rating | IP68S | |
| Minimum Operating Temperature | -55°C | |
| Contact AC Voltage | 115V ac | |
| Contact DC Voltage | 28V dc | |
| Actuator Style | Flush | |
| Maximum Operating Temperature | 85°C | |
| Switch Configuration | On-On | |
| Standards/Approvals | RoHS | |
| Switch Contact Current | 5A | |
| 選取全部 | ||
|---|---|---|
品牌 Otto | ||
Product Type Push Button Switch | ||
Switch Operation Momentary | ||
Actuator Colour Red | ||
Illuminated Yes | ||
Series P9 | ||
Mount Type Panel | ||
Contact Configuration SPDT | ||
Terminal Type PCB Pin | ||
LED Colour Red | ||
IP Rating IP68S | ||
Minimum Operating Temperature -55°C | ||
Contact AC Voltage 115V ac | ||
Contact DC Voltage 28V dc | ||
Actuator Style Flush | ||
Maximum Operating Temperature 85°C | ||
Switch Configuration On-On | ||
Standards/Approvals RoHS | ||
Switch Contact Current 5A | ||
- COO (Country of Origin):
- US
Otto LP9 Illuminated Pushbuttons (IP68)
Quality, precision flush dome switch, designed for use in panels, control grips, instruments and other applications where rugged Illuminated IP68 pushbutton switches are required
Positive tactile feedback
Withstands extreme shock and vibration
Short, behind-panel depth
Contact rating: 5A @ 28 Vdc or 115 Vac
Available in matte or standard finish
Note
The LED operating voltage is 12 Vdc
