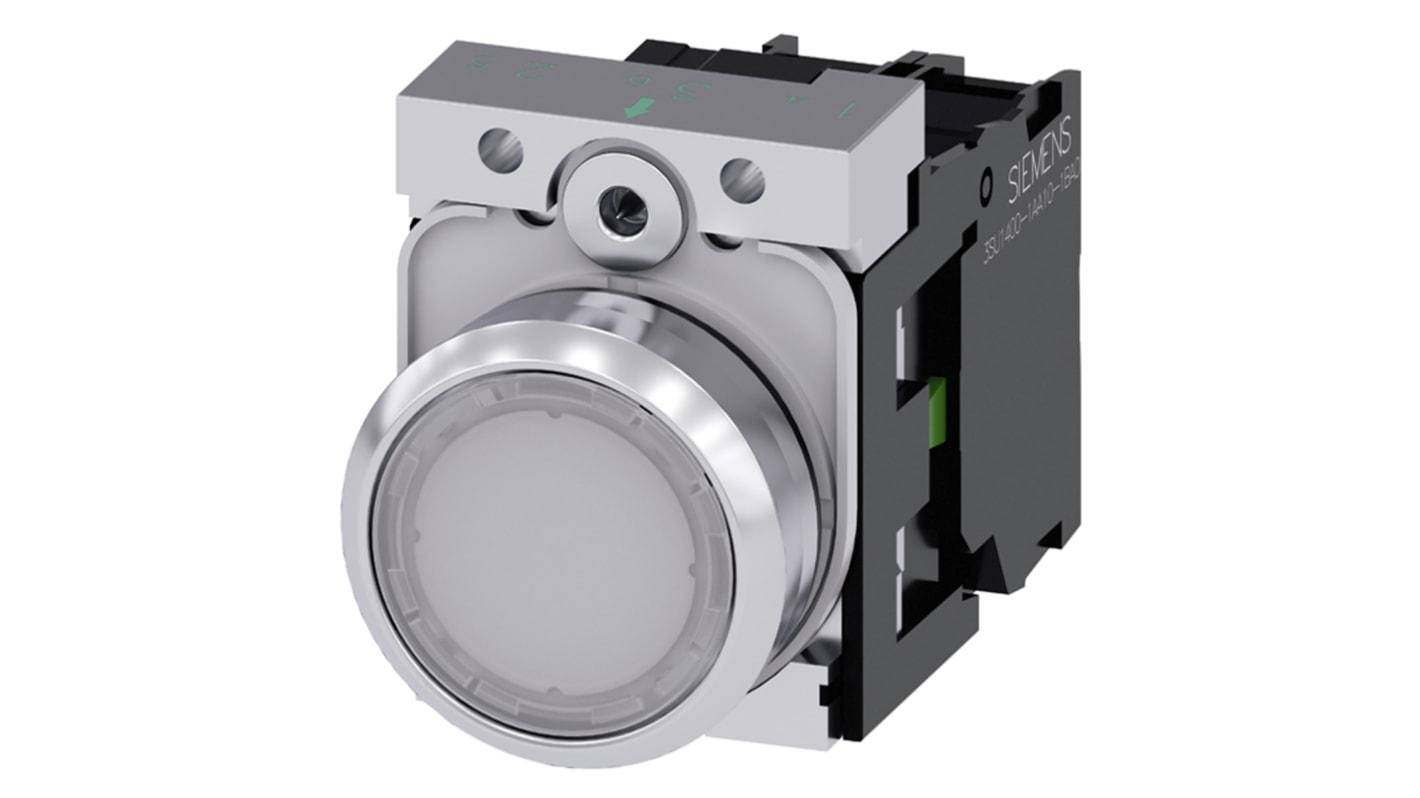

Siemens SIRIUS ACT 3SU11 Series Illuminated Push Button Switch, Panel Mount, 22 mm Cutout White, SPST, IP66, IP67, IP69K
- RS庫存編號:
- 874-2147
- Distrelec 貨號:
- 300-21-180
- 製造零件編號:
- 3SU1152-0AB60-1BA0
- 製造商:
- Siemens
可享批量折扣
查看批量定價選項小計（1 件）*
HK$627.80
訂單超過 HK$250.00 免費送貨
有庫存
- 加上 92 件從 2026年6月03日 起發貨
**需要更多嗎？**輸入您需要的數量，然後按一下「查看送貨日期」以查詢更多庫存和送貨詳細資訊。
單位 | 每單位 |
|---|---|
| 1 - 4 | HK$627.80 |
| 5 + | HK$516.80 |
* 參考價格
- RS庫存編號:
- 874-2147
- Distrelec 貨號:
- 300-21-180
- 製造零件編號:
- 3SU1152-0AB60-1BA0
- 製造商:
- Siemens
規格
產品概覽和技術數據資料表
法例與合規
產品詳細資訊
透過選取一個或多個屬性來查找類似產品。
選取全部 | 屬性 | 值 |
|---|---|---|
| 品牌 | Siemens | |
| Product Type | Push Button Switch | |
| Illuminated | Yes | |
| Cutout Diameter | 22mm | |
| Series | SIRIUS ACT 3SU11 | |
| Push Button Actuation | Momentary | |
| Mount Type | Panel Mount | |
| Push Button Colour | White | |
| Contact Configuration | SPST | |
| Push Button Style | Round | |
| Terminal Type | Screw | |
| Push Button Shape | Round | |
| IP Rating | IP66, IP67, IP69K | |
| Push Button Diameter | 29.45mm | |
| Minimum Operating Temperature | -25°C | |
| Illumination Voltage | 24V | |
| Maximum Operating Temperature | 70°C | |
| Push Button Material | Metal | |
| Standards/Approvals | cULus, CE, UKCA, EAC, CCC | |
| Hazardous Area Certification | No | |
| Better World Product | Yes | |
| Better World Claim | Extended Product Life, Low Carbon Manufacture | |
| Body Material | Metal | |
| 選取全部 | ||
|---|---|---|
品牌 Siemens | ||
Product Type Push Button Switch | ||
Illuminated Yes | ||
Cutout Diameter 22mm | ||
Series SIRIUS ACT 3SU11 | ||
Push Button Actuation Momentary | ||
Mount Type Panel Mount | ||
Push Button Colour White | ||
Contact Configuration SPST | ||
Push Button Style Round | ||
Terminal Type Screw | ||
Push Button Shape Round | ||
IP Rating IP66, IP67, IP69K | ||
Push Button Diameter 29.45mm | ||
Minimum Operating Temperature -25°C | ||
Illumination Voltage 24V | ||
Maximum Operating Temperature 70°C | ||
Push Button Material Metal | ||
Standards/Approvals cULus, CE, UKCA, EAC, CCC | ||
Hazardous Area Certification No | ||
Better World Product Yes | ||
Better World Claim Extended Product Life, Low Carbon Manufacture | ||
Body Material Metal | ||
- COO (Country of Origin):
- DE
Siemens Push Button Complete Unit, Metal Body, 500V AC/DC Maximum Voltage - SIRIUS ACT Series - 3SU1152-0AB60-1BA0
Looking for a fuss-free control panel actuation solution? Try this push button complete unit from Siemens. It provides everything you need to add an illuminated switch to your setup, with no special tools needed. The unit mounts simply onto a panel and calls for a cut-out diameter of 22mm, so it doesn't take up much valuable space. A SPST contact configuration makes it ideal for any application where you need straightforward on-off functionality, such as industrial automation controls and transportation equipment.
Features & Benefits
• IP69K rated for complete protection against dust and high-pressure water jets at close range
• Durable metal construction stands up to challenging environments
• Suitable for use in temperatures ranging between -25°C and +70°C
• White button commonly used for start/stop function
When I press the button, will the circuit open or close?
The unit has a single normally open contact. This means that if the circuit is off, it will switch on when you press the button.
How long will the circuit remain switched on?
This is a momentary switch, so the circuit will only be on while the button is pressed.
