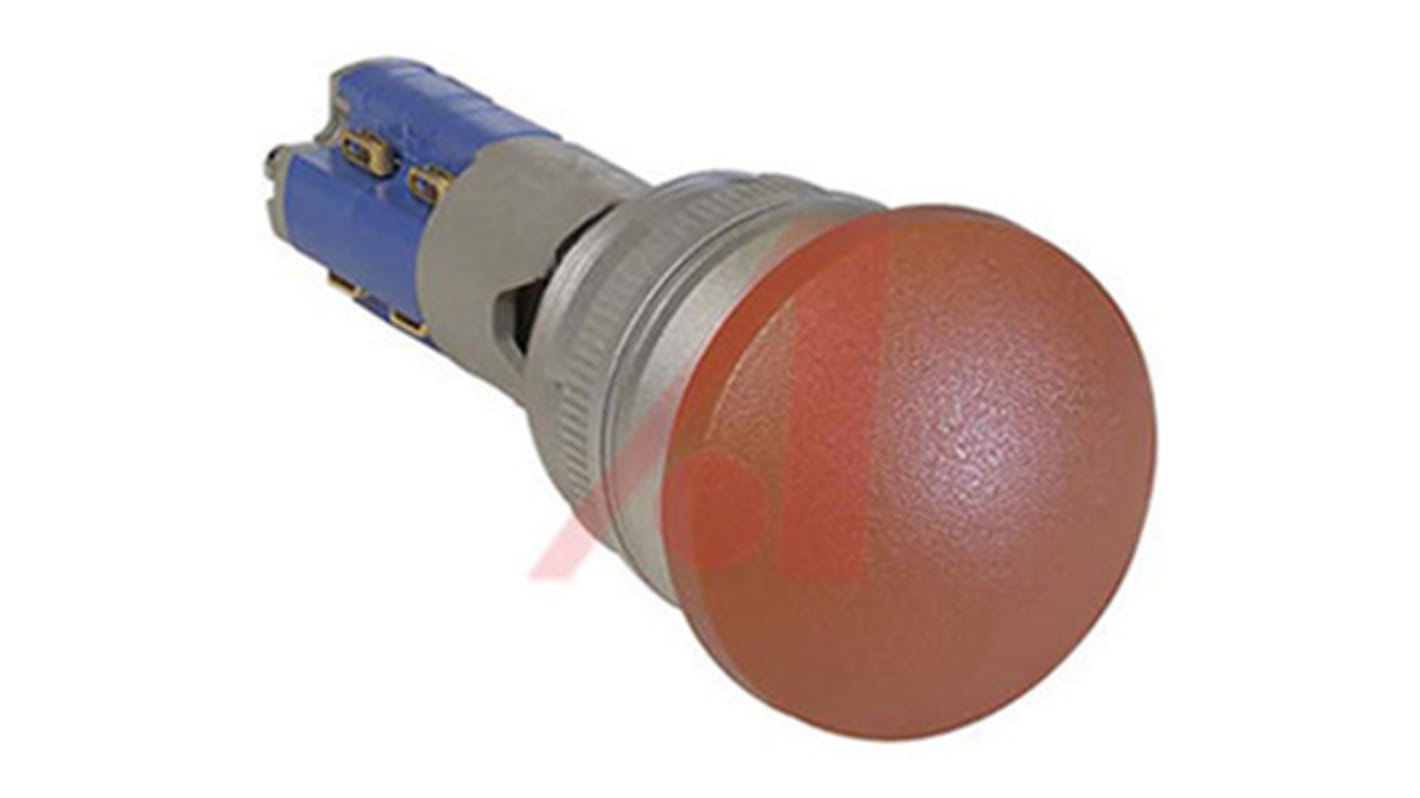

Johnson Electric Push Button Switch, Latching, Momentary, Panel Mount, 16.2mm Cutout, SPDT, 250V ac, IP40
- RS庫存編號:
- 883-1672
- 製造零件編號:
- TH414119RED
- 製造商:
- Johnson Electric
查看所有Push Button Switches
- RS庫存編號:
- 883-1672
- 製造零件編號:
- TH414119RED
- 製造商:
- Johnson Electric
- COO (Country of Origin):
- CN
產品概覽和技術數據資料表
法例與合規
- COO (Country of Origin):
- CN
產品詳細資訊
Circular Illuminated Pushbutton Switches
Designed for use in areas where a sealed front panel switch is required to work in hostile environments
Supplied with one contact block fitted, but up to two extra blocks may be added to make a total of three per switch maximum
Contact rating: 4A @ 24Vdc, 5A @ 250Vac
Head protected to IP65 when panel mounted
Dimensions: Depth behind panel 44mm, max. panel thickness 7mm, panel cut-out 22mm
Switching capacity 5A @ 250 Vac
Supplied with one contact block fitted, but up to two extra blocks may be added to make a total of three per switch maximum
Contact rating: 4A @ 24Vdc, 5A @ 250Vac
Head protected to IP65 when panel mounted
Dimensions: Depth behind panel 44mm, max. panel thickness 7mm, panel cut-out 22mm
Switching capacity 5A @ 250 Vac
Note
Two part polycarbonate lenses with synthetic rubber sealing glands can be ordered separately.
規格
| Attribute | Value |
| Switch Operation | Latching, Momentary |
| Push Button Colour | Red |
| Mounting Type | Panel Mount |
| Illuminated | No |
| Contact Configuration | SPDT |
| Push Button Style | Round |
| Panel Cut Out Diameter | 16.2mm |
| IP Rating | IP40 |
| Voltage Rating | 250V ac |
| Contact Current Rating | 5 A |
| Contact AC Voltage Rating | 250V |
| Legend | Arrows (symbol) |
| Terminal Type | Screw |
| Manufacturer Part No. | TH414119RED |
