Schneider Electric Residual Current Circuit Breaker with Overload Protection, 25 A Current Rating, 2-Pole, 30 mA Trip

查看所有RCBOs

小計（1 件）*

HK$9,004.57

Add to Basket
選擇或輸入數量
暫時缺貨
  • 從 2026年3月03日 發貨
**需要更多嗎？**輸入您需要的數量，然後按一下「查看送貨日期」以查詢更多庫存和送貨詳細資訊。
單位
每單位
1 +HK$9,004.57

* 參考價格

RS庫存編號:
346-784
製造零件編號:
A9D27225
製造商:
Schneider Electric
透過選取一個或多個屬性來查找類似產品。
選取全部

品牌

Schneider Electric

Product Type

Residual Current Circuit Breaker with Overload Protection

Current Rating

25 A

Number of Poles

2

Range

Acti9

Series

iC60 FI/LS

Trip Sensitivity

30mA

Tripping Characteristics

Type C

Mount Type

DIN Rail

Rated AC Voltage

240 V ac

Terminal Type

Tunnel

Earth Leakage Protection Type

Type A

Width

36 mm

Height

86mm

Depth

78mm

Tripping Mechanism

Thermal Magnetic

Application

Distribution

Standards/Approvals

EN/IEC 61009-2-1, EN/IEC 60947-2

Breaking Capacity

10000A

COO (Country of Origin):
PT

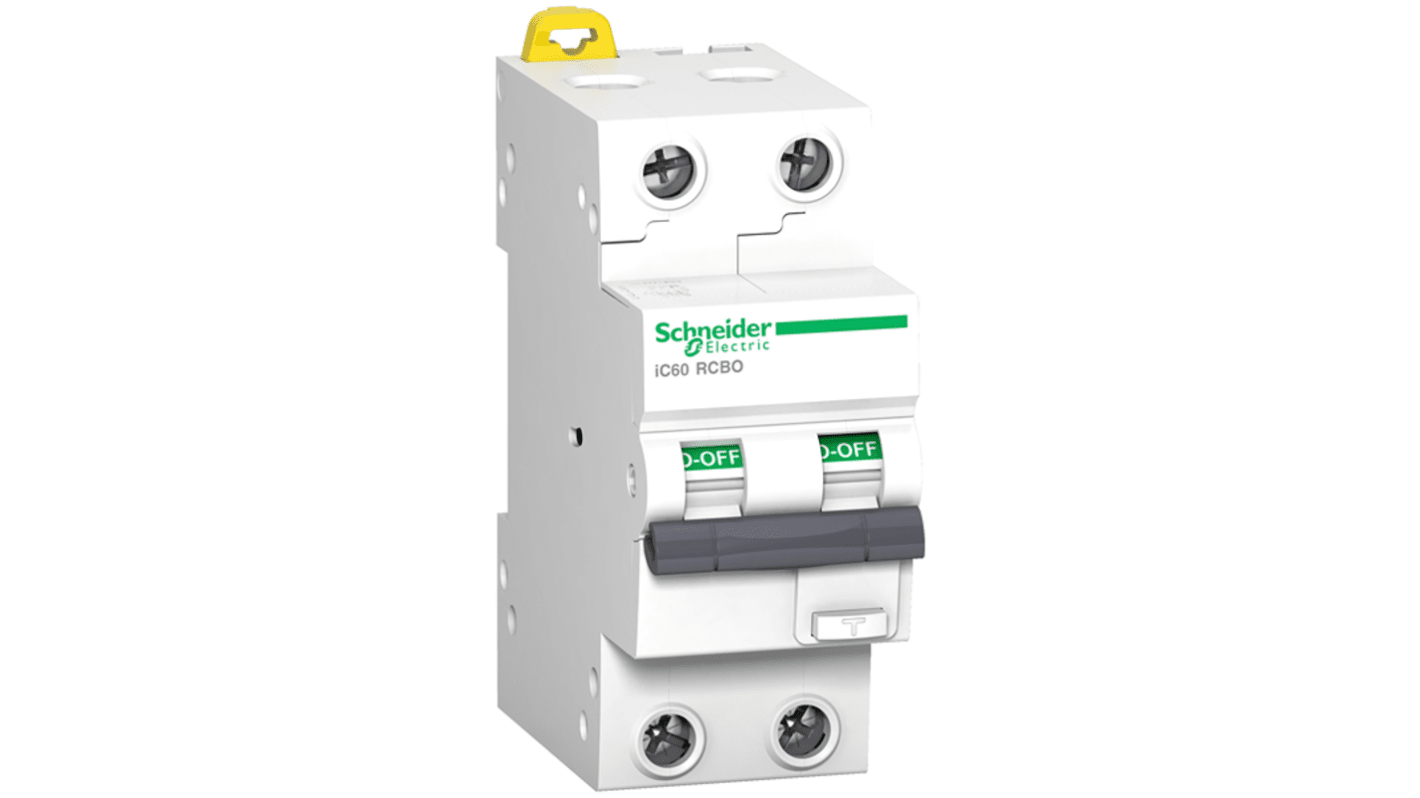

The Schneider Electric Acti9 iC60 RCBO is a modular residual current breaker with overcurrent protection. It is a 2P RCBO with 2 protected poles, rated current is 25A, and operating voltage is 220VAC to 240VAC. The earth leakage protection class is A-SI type with a sensitivity of 30mA. The earth leakage protection time delay is instantaneous. Breaking capacity at 220VAC to 240VAC is 10000A according to EN/IEC 61009-2-1

IP20 and IP40 protection rated

Mercury free

RoHS compliant

Overvoltage III category conforming to IEC 60364
