ABB Residual Current Circuit Breaker with Overload Protection, 6A Current Rating, 2-Pole, 30 mA Trip Sensitivity, Type

RS庫存編號:: 201-6952
製造零件編號:: 2CSR275080R1065 DS201 M B6 AC30
製造商:: ABB

ABB Residual Current Circuit Breaker with Overload Protection, 6A Current Rating, 2-Pole, 30 mA Trip Sensitivity, Type

查看所有RCBOs

小計（1 件）*

HK$908.90

訂單超過 HK$250.00 免費送貨

暫時缺貨

4 件從 2026年12月18日起裝運發貨

**需要更多嗎？**輸入您需要的數量，然後按一下「查看送貨日期」以查詢更多庫存和送貨詳細資訊。

單位	每單位
1 +	HK$908.90

* 參考價格

我們的 Better World 產品系列可讓您輕鬆選擇值得信賴的環保產品。

瞭解有關RS Better World產品的更多資訊

RS庫存編號:: 201-6952
製造零件編號:: 2CSR275080R1065 DS201 M B6 AC30
製造商:: ABB

規格

產品概覽和技術數據資料表

法例與合規

產品詳細資訊

透過選取一個或多個屬性來查找類似產品。

選取全部	屬性	值
	品牌	ABB
	Product Type	Residual Current Circuit Breaker with Overload Protection
	Current Rating	6A
	Number of Poles	2
	Range	System Pro M Compact
	Series	DS201
	Trip Sensitivity	30mA
	Tripping Characteristics	Type B
	Mount Type	DIN Rail
	Rated AC Voltage	240V ac
	Terminal Type	Screw
	Earth Leakage Protection Type	AC
	Height	85mm
	Width	69mm
	Depth	69mm
	Better World Claim	Designed for Disassembly, Extended Product Life
	Better World Product	Yes
	Breaking Capacity	15kA
	Standards/Approvals	RoHS, IEC
	Tripping Mechanism	Thermal Magnetic
	Reset Actuator Type	Toggle Switch

	選取全部
	品牌 ABB
	Product Type Residual Current Circuit Breaker with Overload Protection
	Current Rating 6A
	Number of Poles 2
	Range System Pro M Compact
	Series DS201
	Trip Sensitivity 30mA
	Tripping Characteristics Type B
	Mount Type DIN Rail
	Rated AC Voltage 240V ac
	Terminal Type Screw
	Earth Leakage Protection Type AC
	Height 85mm
	Width 69mm
	Depth 69mm
	Better World Claim Designed for Disassembly, Extended Product Life
	Better World Product Yes
	Breaking Capacity 15kA
	Standards/Approvals RoHS, IEC
	Tripping Mechanism Thermal Magnetic
	Reset Actuator Type Toggle Switch

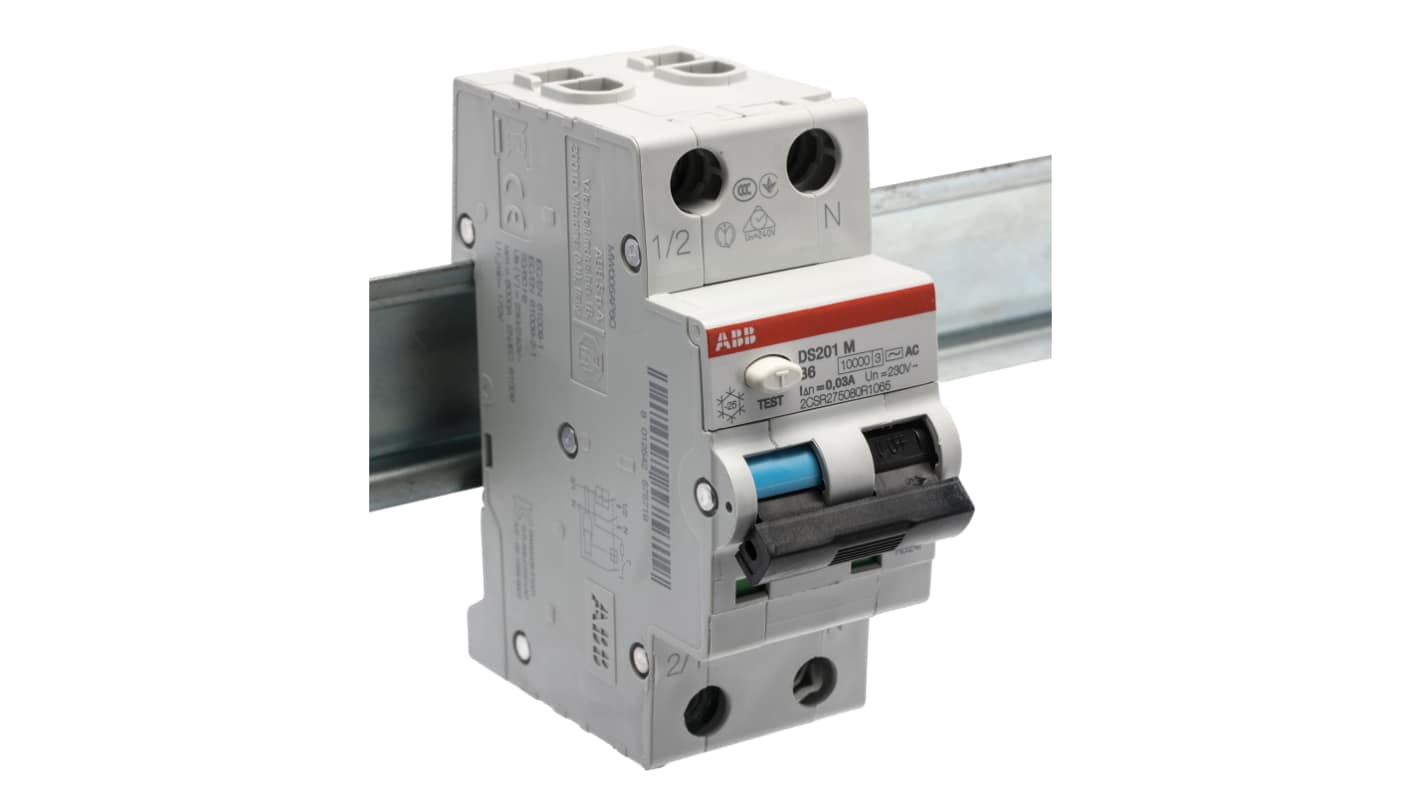

ABB DS201 Series RCBO, 6A Current Rating, 30mA Trip Sensitivity - 2CSR275080R1065 DS201 M B6 AC30

This RCBO is a vital component designed for protecting single-phase circuits. It provides dual protection against overload and short-circuit currents as well as sinusoidal alternating earth fault currents. Featuring a compact design of 69mm x 35mm x 69mm, this unit mounts directly onto a DIN rail.

Features & Benefits

• 6A rated current ensures compatibility with various applications

• 30 mA sensitivity offers effective earth fault protection

• Type B tripping characteristics for enhanced reliability

• Instantaneous breaking time for quick fault response

• Robust breaking capacity of 15kA to safeguard circuits

• Toggle switch actuator for straightforward operation

Applications

• Used for protecting residential wiring from overloads

• Ideal for commercial installations requiring earth fault protection

• Suitable for AC circuits needing reliable short circuit defence

• Perfect for integration in automation and control systems

• Applicable in mechanical and electrical maintenance environments

What specifications support efficient operation with this device?

It complies with IEC 61009 standards, ensuring dependable performance and safety across applications involving AC circuits.

How is the installation process simplified for users?

With a DIN rail mount design, it allows for quick and straightforward installation in various electrical setups.

What are the maximum cable sizes this device can accommodate?

It can accept cables up to 25 mm², making it flexible for different installation requirements.

What measures are in place to indicate faults effectively?

This unit features a blue flag on the toggle for instant fault indication, alerting users promptly.
