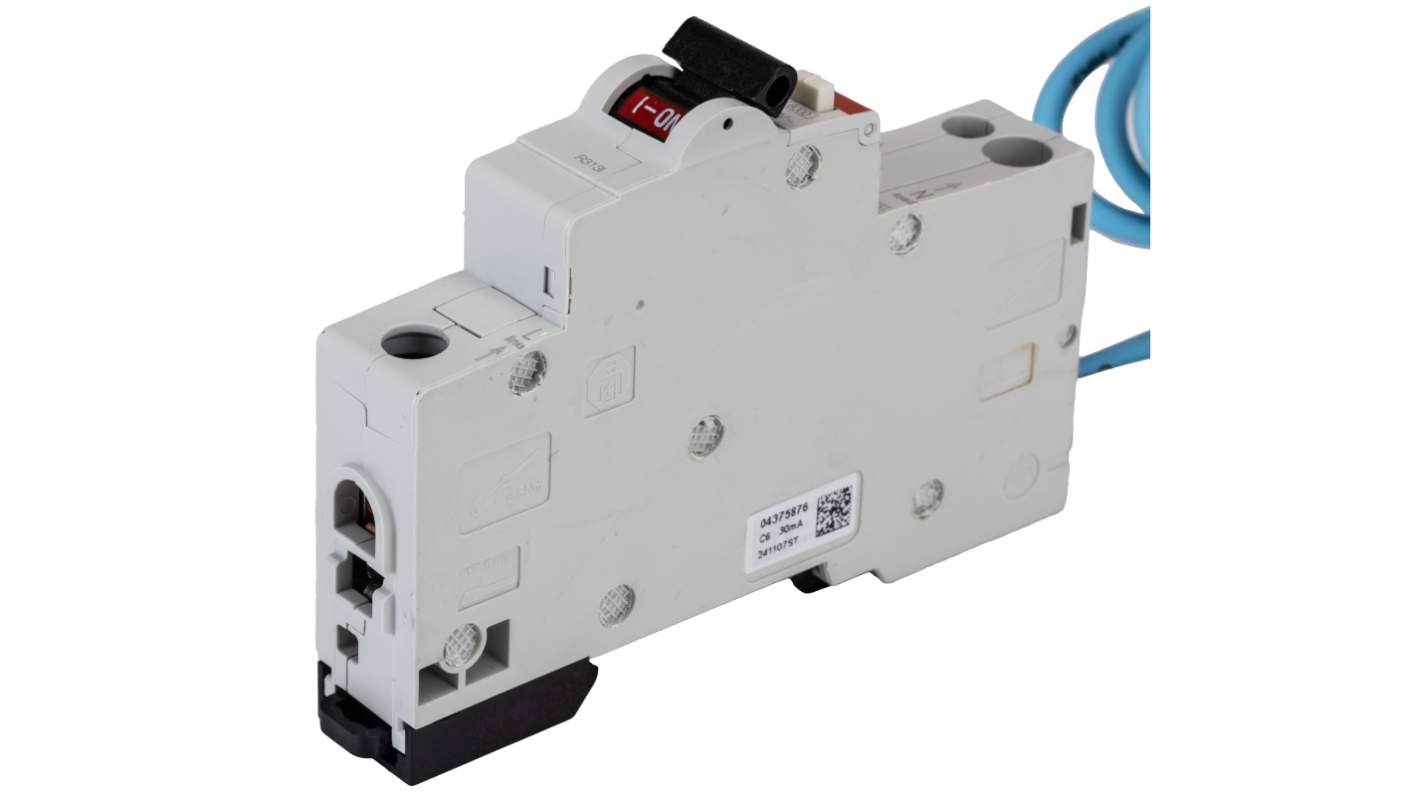

ABB RCBO, 6A Current Rating, 1P+N Poles, 30mA Trip Sensitivity, Type C, System Pro M Compact Range
- RS庫存編號:
- 914-4039
- 製造零件編號:
- 2CSR255051R1064 DSE201 C6 AC30 - N Blue
- 製造商:
- ABB
Price 个**
HK$655.20
10 現貨庫存,可於3工作日發貨。*
* 交貨日期可能會根據您選擇的數量和交貨地址而變更。
訂單金額滿 HK$250.00 即可享受 免費 送貨服務
即時庫存查詢
單位 | 每單位 |
---|---|
1 + | HK$655.20 |
** 參考價格
- RS庫存編號:
- 914-4039
- 製造零件編號:
- 2CSR255051R1064 DSE201 C6 AC30 - N Blue
- 製造商:
- ABB
透過選取一個或多個屬性來查找類似產品。
選取全部 | 屬性 | 值 |
---|---|---|
品牌 | ABB | |
Current Rating | 6A | |
Number of Poles | 1P+N | |
Trip Sensitivity | 30mA | |
Tripping Characteristics | Type C | |
Range | System Pro M Compact | |
Circuit Breaker Type | RCBO | |
Series | DSE201 | |
Rated AC Voltage | 240V | |
Mounting Style | DIN Rail Mount | |
Earth Leakage Protection Type | AC | |
Overall Depth | 68.9mm | |
Terminal Contact Type | Screw | |
Overall Length | 17.5mm | |
Standards Met | CE | |
Reset Actuator Type | Toggle Switch | |
Overall Dimensions | 17.5 x 100 x 68.9mm | |
Breaking Capacity at Maximum Voltage Rating | 6 kA | |
Overall Width | 100mm | |
Tripping Mechanism | Thermal-Magnetic | |
選取全部 | ||
---|---|---|
品牌 ABB | ||
Current Rating 6A | ||
Number of Poles 1P+N | ||
Trip Sensitivity 30mA | ||
Tripping Characteristics Type C | ||
Range System Pro M Compact | ||
Circuit Breaker Type RCBO | ||
Series DSE201 | ||
Rated AC Voltage 240V | ||
Mounting Style DIN Rail Mount | ||
Earth Leakage Protection Type AC | ||
Overall Depth 68.9mm | ||
Terminal Contact Type Screw | ||
Overall Length 17.5mm | ||
Standards Met CE | ||
Reset Actuator Type Toggle Switch | ||
Overall Dimensions 17.5 x 100 x 68.9mm | ||
Breaking Capacity at Maximum Voltage Rating 6 kA | ||
Overall Width 100mm | ||
Tripping Mechanism Thermal-Magnetic | ||
