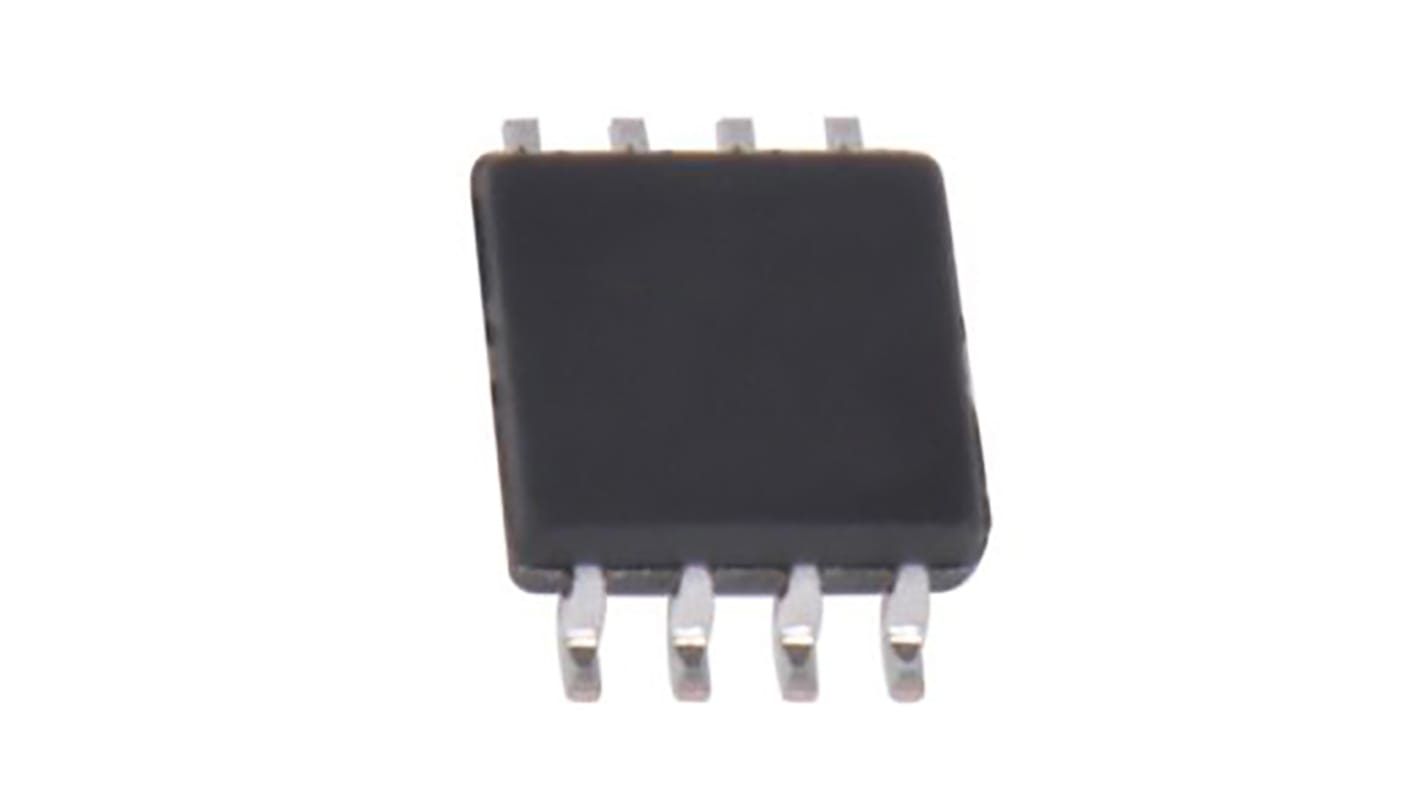

STMicroelectronics RF Transceiver, 12-Pin UFDFPN

此圖片僅供參考，請參閲產品詳細資訊及規格

查看所有RF ICs
可享批量折扣

小計（1 卷，共 4000 件）*

HK$21,272.00

Add to Basket
選擇或輸入數量
有庫存
  • 4,000 件準備從其他地點送貨
**需要更多嗎？**輸入您需要的數量，然後按一下「查看送貨日期」以查詢更多庫存和送貨詳細資訊。
單位
每單位
每卷*
4000 - 16000HK$5.318HK$21,272.00
20000 +HK$5.212HK$20,848.00

* 參考價格

RS庫存編號:
196-2002
製造零件編號:
ST25DV04K-IER6T3
製造商:
STMicroelectronics
透過選取一個或多個屬性來查找類似產品。
選取全部

品牌

STMicroelectronics

Product Type

RF Transceiver

Modulation Technique

ASK

Sub Type

Transceiver

Package Type

UFDFPN

Data Rate

53kbps

Pin Count

12

Mount Type

Surface

Operating Band 1 Frequency

13.567MHz

Minimum Supply Voltage

1.8V

Maximum Supply Voltage

5.5V

Minimum Operating Temperature

-40°C

Maximum Operating Temperature

85°C

Length

3.1mm

Width

3.1 mm

Standards/Approvals

No

Series

ST25DV04K

Height

0.6mm

Number of Operating Bands

1

Automotive Standard

AEC-Q100

COO (Country of Origin):
CN
The ST25DV04K, ST25DV16K and ST25DV64K devices are NFC RFID tags offering respectively 4 Kbit, 16 Kbit, and 64 Kbit of electrically erasable programmable memory (EEPROM). ST25DV04K, ST25DV16K and ST25DV64K offer two interfaces. The first one is an I2C serial link and can be operated from a DC power supply. The second one is a RF link activated when ST25DV04K, ST25DV16K or ST25DV64K act as a contactless memory powered by the received carrier electromagnetic wave. In I2C mode, the ST25DV04K, ST25DV16K and ST25DV64K user memory contains up to 512 bytes, 2048 bytes and 8192 bytes, which could be split in 4 flexible and protectable areas. In RF mode, following ISO/IEC 15693 or NFC forum type 5 recommendations, ST25DV04K, ST25DV16K and ST25DV64K user memory contains respectively up to 128 blocks, 512 blocks and 2048 blocks of 4 bytes which could be split in 4 flexible and protectable areas.
