可享批量折扣
小計（1 件）*
HK$95.40
添加 3 件 件可免費送貨
有庫存
- 46 件準備從其他地點送貨
**需要更多嗎？**輸入您需要的數量，然後按一下「查看送貨日期」以查詢更多庫存和送貨詳細資訊。
單位 | 每單位 |
|---|---|
| 1 - 9 | HK$95.40 |
| 10 - 24 | HK$90.70 |
| 25 + | HK$86.10 |
* 參考價格
- RS庫存編號:
- 274-2148
- 製造零件編號:
- Ai-RD-01
- 製造商:
- RF Solutions
規格
產品概覽和技術數據資料表
法例與合規
產品詳細資訊
透過選取一個或多個屬性來查找類似產品。
選取全部 | 屬性 | 值 |
|---|---|---|
| 品牌 | RF Solutions | |
| Product Type | RF Module | |
| Component Type | Module | |
| Modulation Technique | FM | |
| Maximum RF Data Rate | 72.2Mbps | |
| Maximum Output Power | 19dBm | |
| Mount Type | Surface | |
| Receiver Sensitivity | -98dBm | |
| Interface Type | ADC, UART, GPIO, SPI, I2C, PWM | |
| Minimum Supply Voltage | 3V | |
| Maximum Supply Voltage | 3V | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 85°C | |
| Standards/Approvals | IEEE 802.11 b/g/n agreement | |
| Series | Ai-RD | |
| 選取全部 | ||
|---|---|---|
品牌 RF Solutions | ||
Product Type RF Module | ||
Component Type Module | ||
Modulation Technique FM | ||
Maximum RF Data Rate 72.2Mbps | ||
Maximum Output Power 19dBm | ||
Mount Type Surface | ||
Receiver Sensitivity -98dBm | ||
Interface Type ADC, UART, GPIO, SPI, I2C, PWM | ||
Minimum Supply Voltage 3V | ||
Maximum Supply Voltage 3V | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 85°C | ||
Standards/Approvals IEEE 802.11 b/g/n agreement | ||
Series Ai-RD | ||
- COO (Country of Origin):
- CN

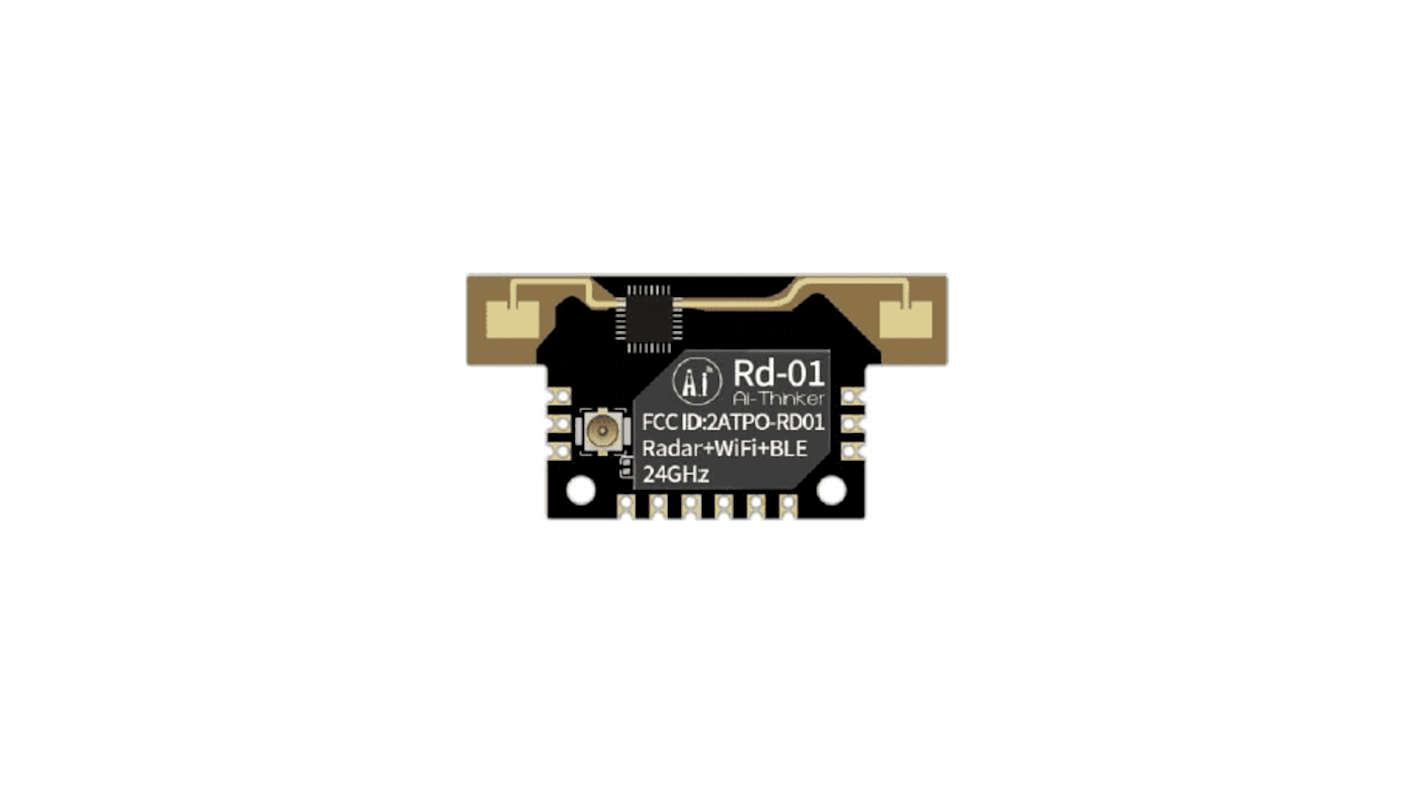

The RF Solutions Radar, WiFi and Bluetooth module can sense whether there is a moving or twitching human body in the area and transmit the detection result in real time through WiFi and Bluetooth. It provide visual configuration tools, it can be easily configured with induction distance range, induction sensitivity of different sections and unmanned delay time. It also supports Wi Fi and Bluetooth wireless configuration of radar parameters, greatly improving the efficiency of construction and operation and maintenance, convenient and fast.
SMD 12 package
Support 20 MHZ bandwidth
Supports a variety of sleep mode
Radar range and accurate recognition
Radar support 24 GHZ ISM frequency band
Support for real random number generators
