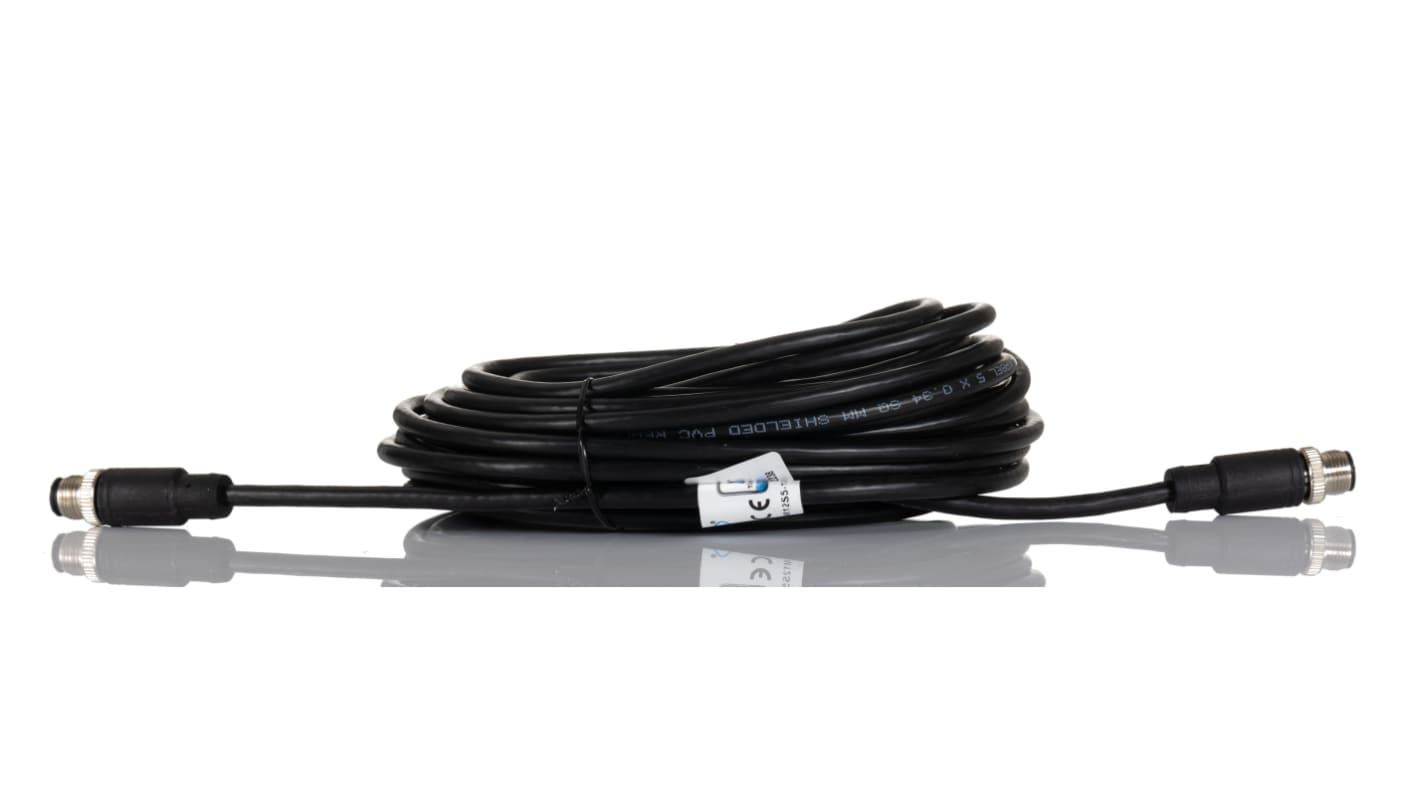

RS PRO Straight Male M12 to Straight Male M12 Sensor Actuator Cable, 10m
- RS庫存編號:
- 250-0725
- 製造商:
- RS PRO
可享批量折扣
Price 个**
HK$556.30
本地庫存暫不足，貨期請向RS查詢
訂單金額滿 HK$250.00 即可享受 免費 送貨服務
單位 | 每單位 |
|---|---|
| 1 - 9 | HK$556.30 |
| 10 - 24 | HK$545.10 |
| 25 - 99 | HK$528.80 |
| 100 + | HK$476.00 |
** 參考價格
- RS庫存編號:
- 250-0725
- 製造商:
- RS PRO
- COO (Country of Origin):
- IN
RS PRO 5 Core Shielded Straight Male M12 to Male M12 Connector Cable
The RS PRO M12 multicore cable assembly features a tough and durable design for the safe and reliable transmission of data in harsh industrial settings.
Featuring braided shielding for a high level of protection, a Brass Nickel plated coupling nut for a secure fit and a Neoprene O-ring for peace of mind from moisture and liquid penetration. Finally, its wrapped in a sturdy, flexible chemical resistant Polyvinyl Chloride (PVC) jacket, the RS PRO multicore cable is built for the industrial environment.
The RS PRO M12 cable is a straight Male to Male connector cable with Brass contacts complete with a Gold Flash plating, ideal for industrial use in a wide range of automation and sensor equipment.
Features and benefits
- Male to Male connector cable
- Shielded A coded cable
- High insulation resistance of at least 100 MΩ protects equipment against electrostatic discharge
- Neoprene O-ring to keep out liquid and moisture
- Nickel-plated brass coupling nut secures the connection and resists corrosion
- 5 Core cable
- Length 10m
- Operating temperature range from -25°C to +75˚C
- Voltage rating of 60V
- Brass contacts with Gold Flash plating
- Current rating of 4A
- Polyvinyl Chloride (PVC) sheath
- IP67 rating
Approvals and Standards: IEC 61076-2-101
Why RS PRO?
RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards; they’re only given the RS
Attribute | Value |
|---|---|
| Series | CDM12S |
| Number of Cores | 5 |
| Cross Sectional Area | 0.34mm² |
| Sheath Material | PVC |
| Length | 10m |
| Sheath Colour | Black |
| Connector 1 Orientation | Straight |
| Connector 1 Gender | Male |
| Connector 1 | M12 |
| Connector 2 | M12 |
| Connector 2 Gender | Male |
| Connector 2 Orientation | Straight |
| Coding | A |
| Shielded/Unshielded | Shielded |
| Shielding | Braid |
| Voltage Rating | 60V |
| Current Rating | 4A |
| IP Rating | IP67 |
| Maximum Operating Temperature | +75°C |
| Cable Shape | Multicore |
| Minimum Operating Temperature | -25°C |
| Outer Diameter | 5.3mm |
