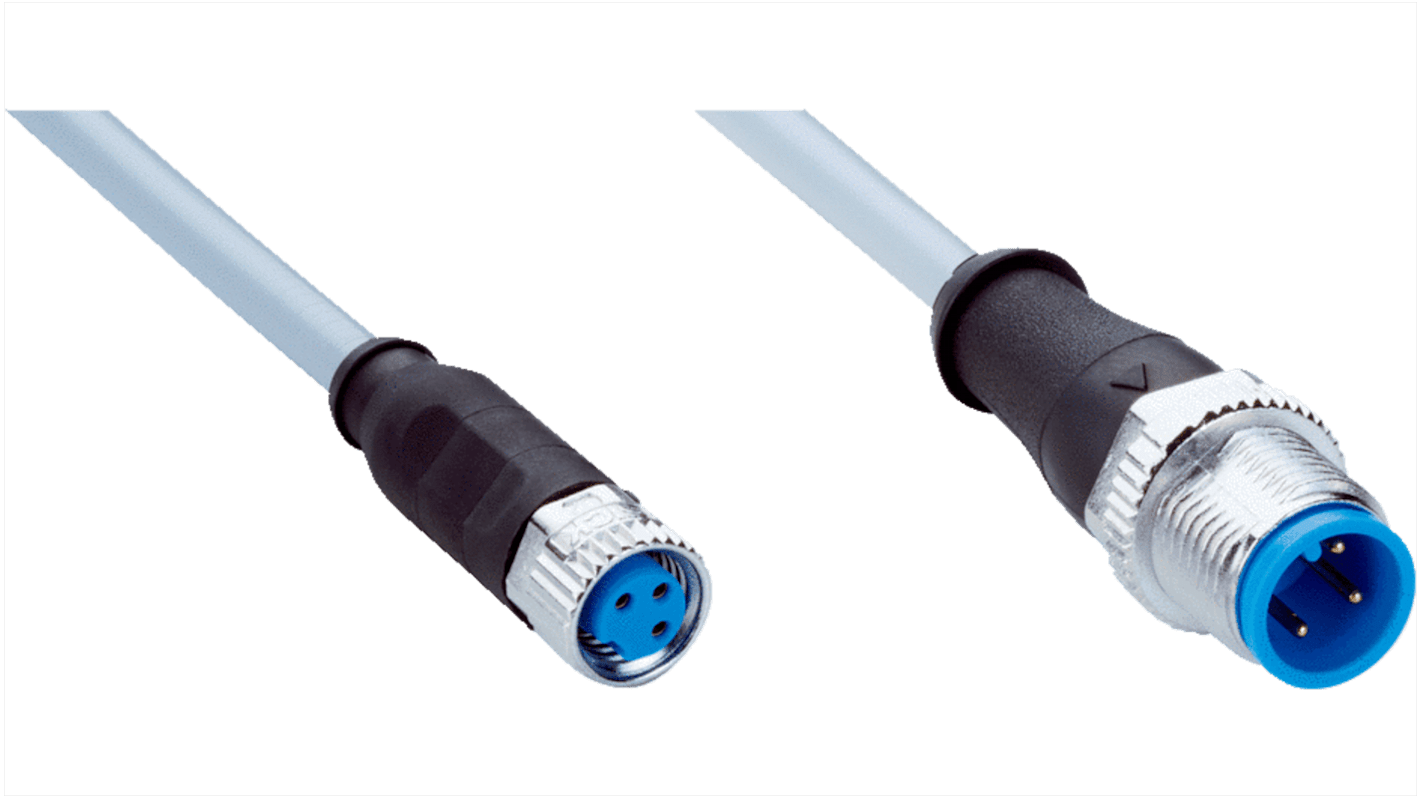

The connection cables are designed with a female connector for head A, featuring an M8, 3 pin, straight, A coded configuration. Head B comprises a Male connector with an M12, 3 pin, straight, A coded configuration. The locking plug connector employs a secure screw connection, and both connectors are made of TPU material in a sleek black color.
The locking nut is constructed from zinc die cast with nickel plating, and the seal material is FKM. The specified tightening torque is 0.4 Nm for M8 and 0.6 Nm for M12, with width across flats measuring 9 for M8 and 13 for M12. The cable spans a length of 10 meters, comprising 3 wires with a PVC jacket in grey. The cable diameter is 4.5 mm, and the conductor cross section is 0.25 mm².
