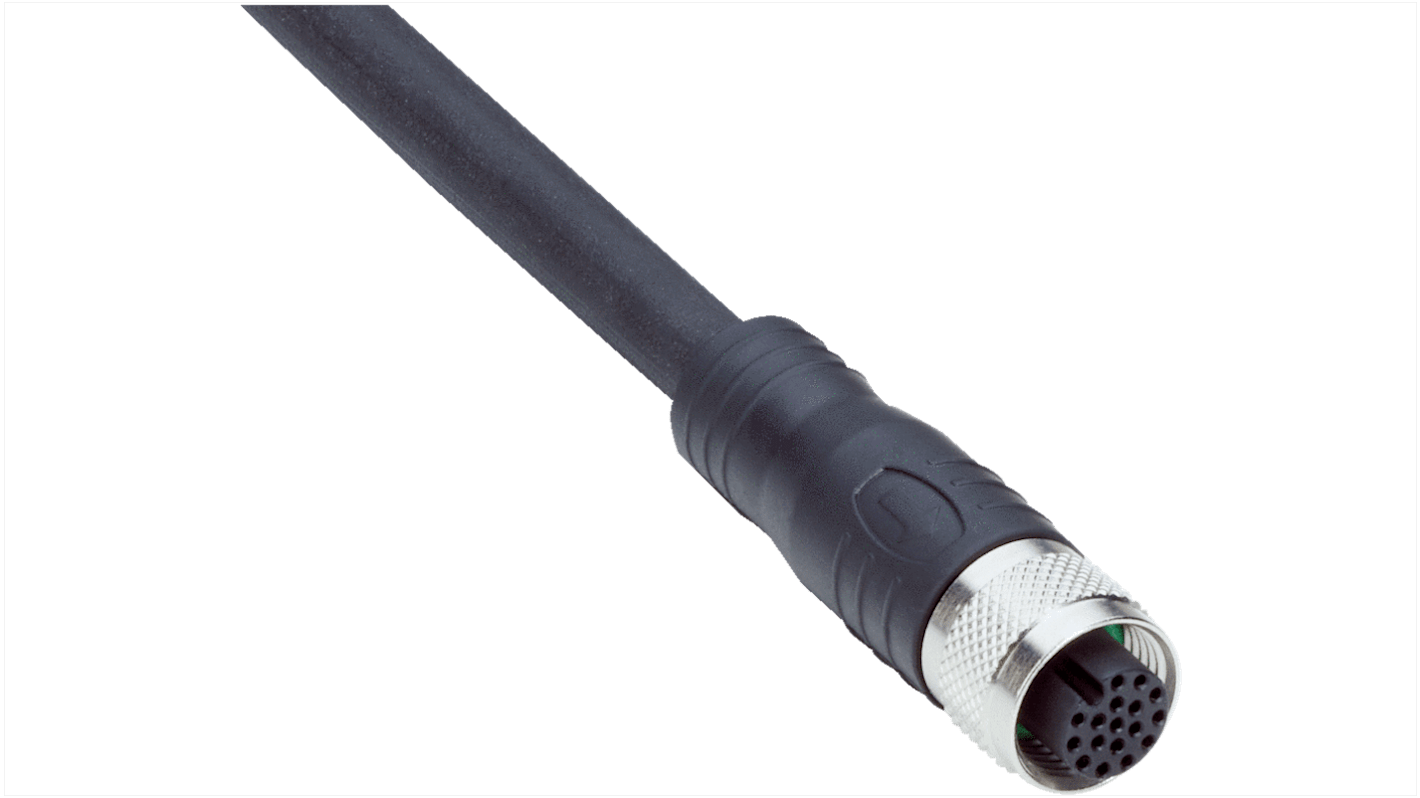

Sick Straight Female 17 way M12 to Unterminated Connector & Cable, 10m

RS庫存編號:: 285-9172
製造零件編號:: YF2A2D-100UV2XLEAX
製造商:: Sick

Sick Straight Female 17 way M12 to Unterminated Connector & Cable, 10m

當前暫無庫存，可於2024/9/20發貨，4 工作日送達。

HK$1,111.00

單位	每單位
1 +	HK$1,111.00

RS庫存編號:: 285-9172
製造零件編號:: YF2A2D-100UV2XLEAX
製造商:: Sick

Datasheet - YF2A2D-100UV2XLEAX

Attribute	Value
Series	YF2A2D
Number of Cores	17
Cross Sectional Area	0.14 mm²
Length	10m
Sheath Material	Polyurethane PUR
Sheath Colour	Black
Connector 1 Number of Contacts	17
Connector 1 Orientation	Straight
Connector 1	M12
Connector 1 Gender	Female
Connector 2	Unterminated
Coding	A
Shielded/Unshielded	Shielded
Shielding	Shielded
Current Rating	1.5 A
Voltage Rating	30 V ac/dc
IP Rating	IP67
Minimum Bend Radius	90 mm
Connector 1 Housing Gender	Female
Outer Diameter	7.5mm
American Wire Gauge	26 AWG
Operating Temperature Range	-20 → 80 °C
Minimum Operating Temperature	-20°C
Maximum Operating Temperature	+80°C
Standards Met	CE
