Brad from Molex 120248 Series Sensor Box, 4 Port
- RS庫存編號:
- 224-3412
- 製造零件編號:
- 1202480056
- 製造商:
- Brad from Molex
可享批量折扣
小計（1 件）*
HK$877.80
库存信息目前无法访问 - 请稍候查看
單位 | 每單位 |
|---|---|
| 1 - 4 | HK$877.80 |
| 5 + | HK$790.00 |
* 參考價格
- RS庫存編號:
- 224-3412
- 製造零件編號:
- 1202480056
- 製造商:
- Brad from Molex
規格
產品概覽和技術數據資料表
法例與合規
產品詳細資訊
透過選取一個或多個屬性來查找類似產品。
選取全部 | 屬性 | 值 |
|---|---|---|
| 品牌 | Brad from Molex | |
| Product Type | Sensor Box | |
| Number of Ports | 4 | |
| Maximum Operating Voltage | 30V dc | |
| Series | 120248 | |
| Housing Material | Polybutylene Terephthalate | |
| IP Rating | IP67, IP68 | |
| Minimum Operating Temperature | -25°C | |
| Maximum Operating Temperature | 85°C | |
| Standards/Approvals | UL E152210 | |
| Minimum Operating Voltage | 10V | |
| 選取全部 | ||
|---|---|---|
品牌 Brad from Molex | ||
Product Type Sensor Box | ||
Number of Ports 4 | ||
Maximum Operating Voltage 30V dc | ||
Series 120248 | ||
Housing Material Polybutylene Terephthalate | ||
IP Rating IP67, IP68 | ||
Minimum Operating Temperature -25°C | ||
Maximum Operating Temperature 85°C | ||
Standards/Approvals UL E152210 | ||
Minimum Operating Voltage 10V | ||

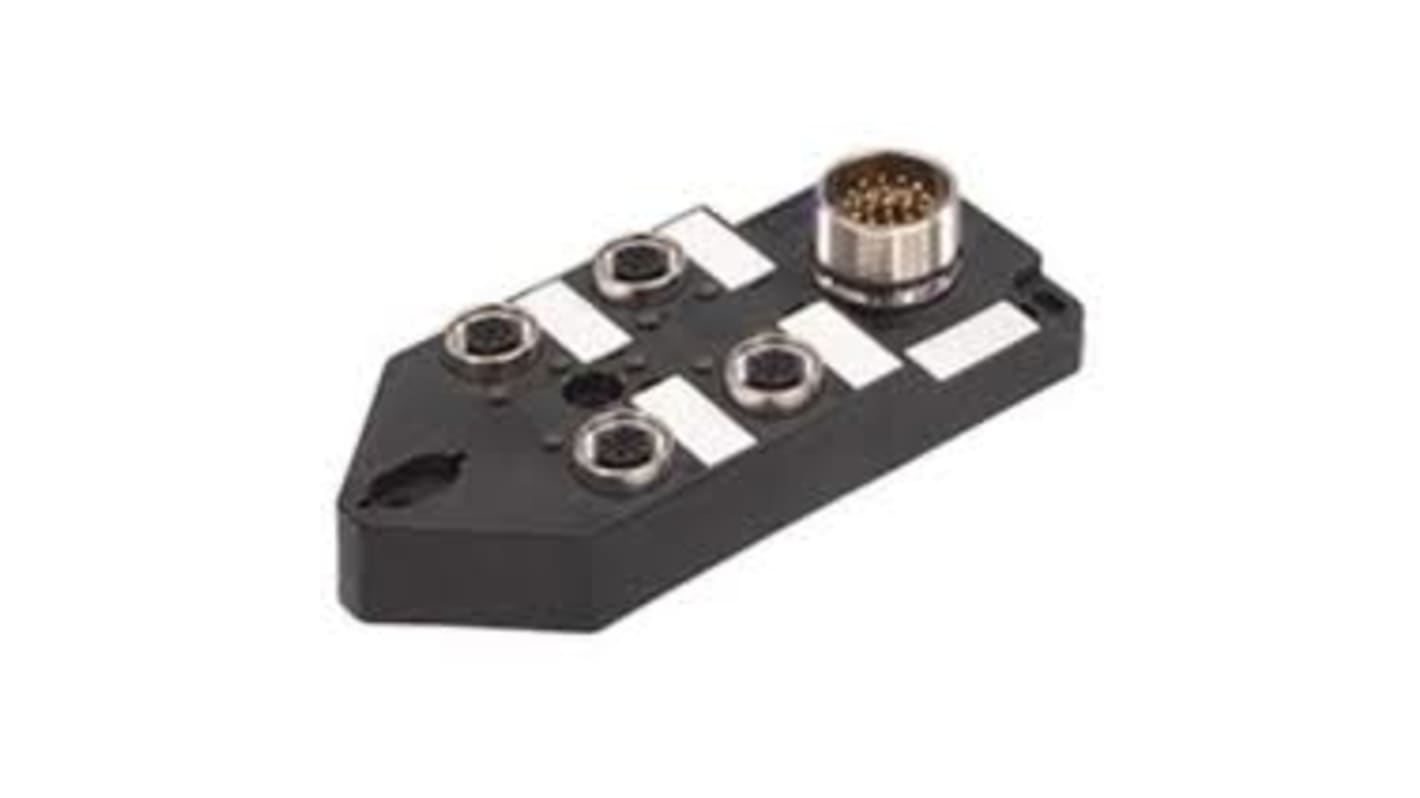

The Molex 120248 MPIS micro-change(M12) passive junction box, mounting type is top mount. It has a 4 Ports, with LED for PNP sensor.
4 ports
Top mounting
