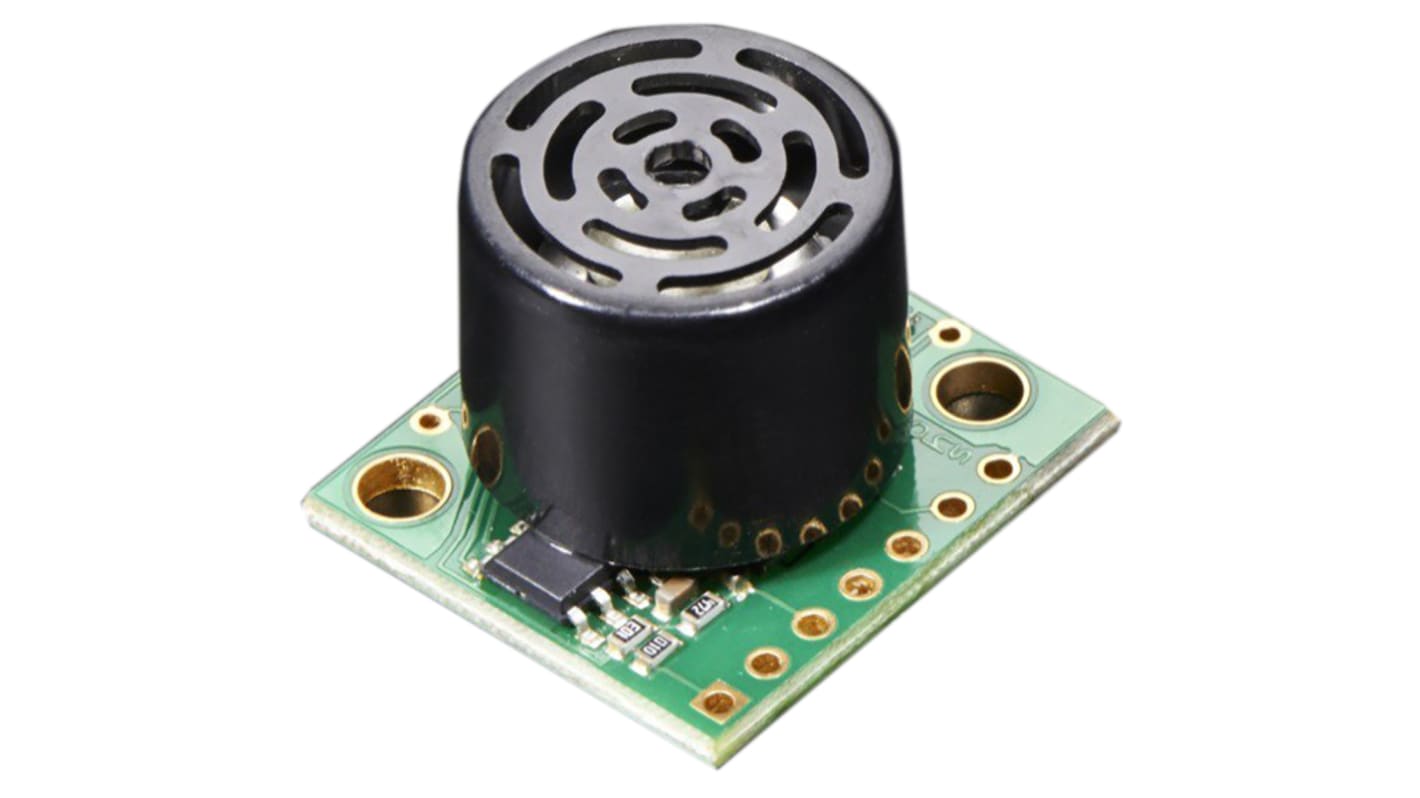

ADAFRUIT INDUSTRIES Maxbotix Ultrasonic Distance Sensor Module for LV-EZ4

查看所有Sensor Development Tools

小計（1 件）*

HK$234.30

Add to Basket
選擇或輸入數量
有庫存
  • 10 件準備從其他地點送貨
**需要更多嗎？**輸入您需要的數量，然後按一下「查看送貨日期」以查詢更多庫存和送貨詳細資訊。
單位
每單位
1 +HK$234.30

* 參考價格

RS庫存編號:
124-5448
製造零件編號:
982
製造商:
ADAFRUIT INDUSTRIES
透過選取一個或多個屬性來查找類似產品。
選取全部

品牌

ADAFRUIT INDUSTRIES

Sensor Technology

Ultrasonic Distance Sensor

Featured Device

LV-EZ4

Kit Classification

Module

Kit Name

Maxbotix

LV-EZx Series Maxbotix Ultrasonic Rangefinder Sensors


LV-MaxSonar-EZ™ modules are in air, ultrasonic non-contact ranging sensors that detect objects within an area. These sensors are not affected by the colour or other visual characteristics of the detected object. Ultrasonic sensors measure the time of flight for ultrasound that has been transmitted to and reflected back from nearby objects. Based on the time of flight, the sensor then outputs a range reading.

Basic Features


• Sensor frequency: 42kHz

• Max reading rate: 20Hz

• Object range: 150 to 6000mm

• Continuously variable gain for control and side-lobe suppression

• Available in five versions with different preset beam- patterns

• Triggered operation provides a single-shot range reading

• Free run operation continually measures and outputs range information

• Output interfaces are active simultaneously

• Output formats: UART serial, Analogue (Vcc/512)/inch, PWM (147μs/inch)

• Learns ringdown pattern when commanded to start ranging

• Multiple sensors can be used in a single system

• Designed for protected indoor environments

• Power supply: +2.5V to +5.5Vdc @ 2mA typical current

• Dimensions: 19.9 x 22.1 x 15.5mm

• Applications: Mobile robot navigation, Collision avoidance, Security

RS Product Codes


• 124-5445 LV-MaxSonar-EZ0 Widest & most sensitive beam, people detect 3000mm

• 124-5441 LV-MaxSonar-EZ1 Most popular sensor, people detect 2400mm

• 124-5446 LV-MaxSonar-EZ2 Less sensitive than EZ1, people detect 1800mm

• 124-5447 LV-MaxSonar-EZ3 Excellent side object rejection, people detect 1500mm

• 124-5448 LV-MaxSonar-EZ4 Best side object rejection, people detect 1200mm
