	品牌	TE Connectivity
	Product Type	Sensor Development Tool
	Sensor Technology	Temperature & Humidity Sensor
	For Use With	Digilent Pmod
	Kit Classification	Add On Board
	Standards/Approvals	RoHS
	Kit Name	HTU21

	選取全部
	品牌 TE Connectivity
	Product Type Sensor Development Tool
	Sensor Technology Temperature & Humidity Sensor
	For Use With Digilent Pmod
	Kit Classification Add On Board
	Standards/Approvals RoHS
	Kit Name HTU21

Datasheet

COO (Country of Origin):: CN

The HTU21D peripheral module provides the necessary hardware to interface the HTU21D digital relative humidity and temperature sensor to any system that utilizes Pmod compatible expansion ports configurable for I2C communication. The HTU21D sensor is a selfcontained humidity and temperature sensor that is fully calibrated during manufacture. The sensor can operate from 1.5V to 3.6V, has selectable resolution, low battery detect, and checksum capability. The HTU21D has a low power standby mode for power sensitive applications.

Measures relative humidity from 0 to 100

Measures temperature from 40°C to 125°C

I2C communication

Fully calibrated

Fast response time

Selectable resolution

Very low power consumption

12pin Pmod compatible connector

I2C interface

Secondary 12pin connector allows daisy chain

FPGA fabric available for download

4C C code available for download

Selectable 812 bit resolution for humidity

Selectable 1114 bit resolution for temperature

Electronic ID code stored on chip

單位	每單位
1 - 4	HK$222.40
5 - 9	HK$218.00
10 +	HK$213.60

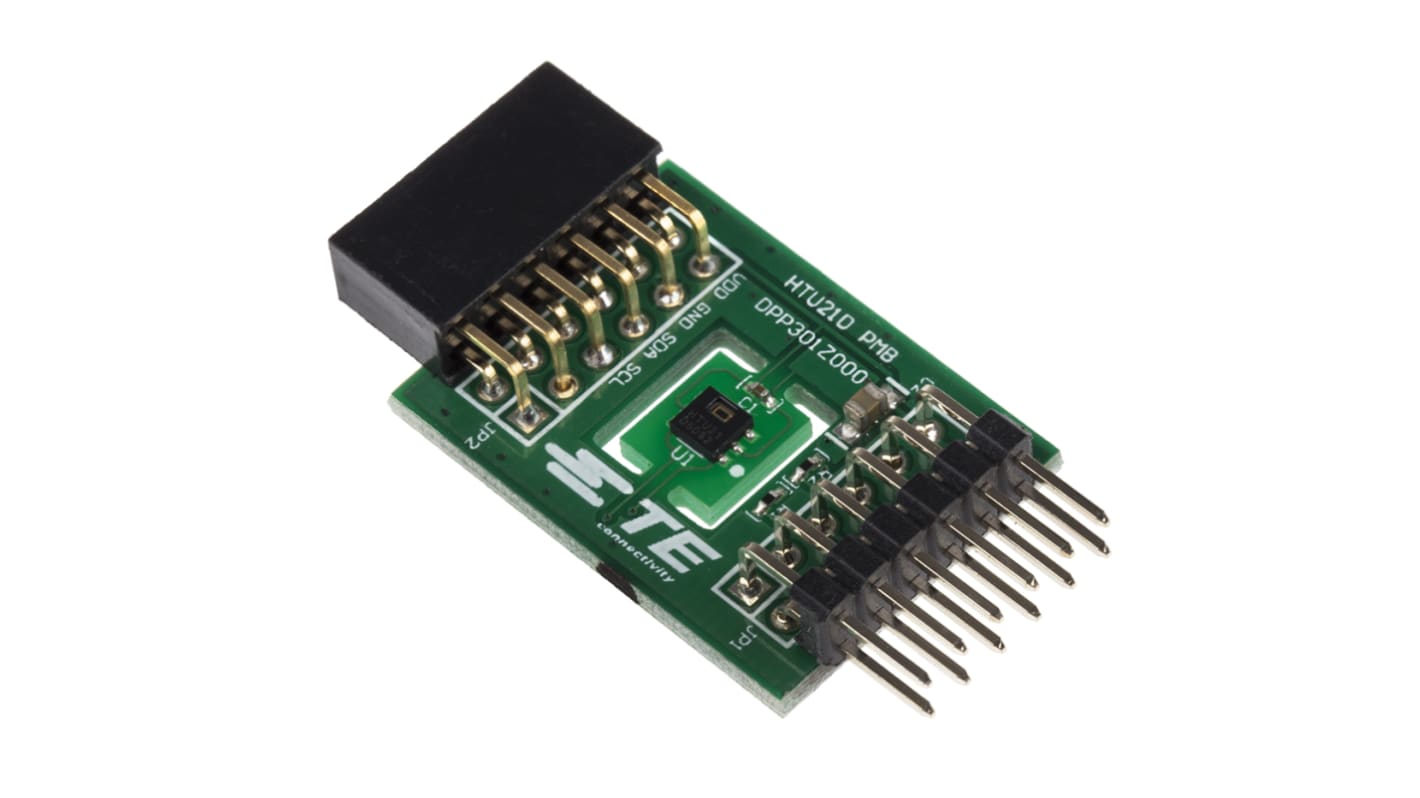

TE Connectivity HTU21 Temperature & Humidity Sensor Add On Board Digilent Pmod
