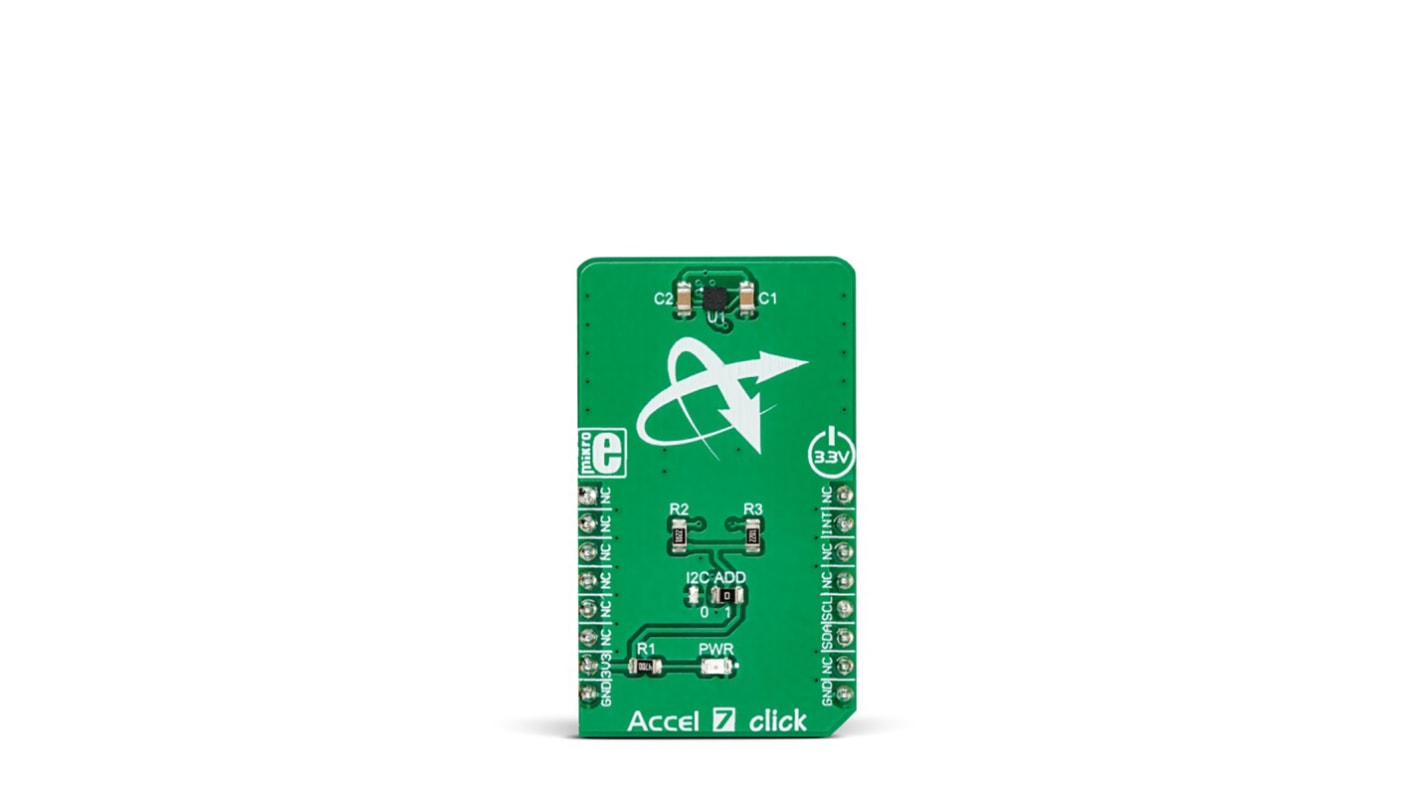

MikroElektronika Accel 7 Click Board

查看所有Sensor Development Tools
暫時無法供應
我們無法確定此產品何時有貨，RS 預計將其從我們的產品目錄中移除。
RS庫存編號:
181-7529
製造零件編號:
MIKROE-3244
製造商:
MikroElektronika
透過選取一個或多個屬性來查找類似產品。
選取全部

品牌

MikroElektronika

Product Type

Sensor Development Tool

Kit Name

Accel 7 Click Board

Standards/Approvals

RoHS

Small footprint: 2 x 2 x 0.9 mm LGA 12-pin package (pin-to-pin compatible with KXTJ2)

Low current consumption: 0.9 μA in standby, 10 μA in Low Power, and 155 μA in High Resolution modes

Extended user-configurable g-ranges: ±2g, ±4g, ±8g, ±16g

8-bit, 12-bit, and 14-bit resolution modes

Wide supply voltage range: 1.71V – 3.6V with internal voltage regulator

High resolution Wake-Up function with threshold configurable down to 3.9 mg

User-configurable Output Data Rates from 0.781Hz to 1600Hz

I2C digital communication interface up to 3.4MHz

Highly configurable interrupt control

Embedded Low Pass filter

Improved design to virtually eliminate post reflow offset and sensitivity shifts

Improved noise performance

Stable performance over temperature

High shock survivability

Self-test function
