Package type: surface-mount

Dimensions (L x W x H in mm): 4.0 x 2.36 x 0.75

Integrated modules: ambient light sensor (ALS), proximity sensor (PS), and signal conditioning ICL

Operates ALS and PS in parallel structure

FiltronTM technology adoption for robust background light cancellation

Temperature compensation: -40 °C to +105 °C

Low power consumption I2C (SMBus compatible interface

Output type: I

2C bus (ALS / PS)

Operation voltage: 2.5 V to 3.6 V

Floor life: 168 h, MSL 3, according to J-STD-020

Immunity to red glow (≥ 890 nm IREDs)

Programmable IRED sink current

Intelligent cancellation to reduce cross talk phenomenon

Smart persistence scheme to reduce PS response time

Selectable for 12- / 16- bit PS output data

High accuracy of ALS ± 10 %

Fluorescent light flicker immunity

Spectrum close to real human eye responses

Selectable maximum detection range (262 / 524 / 1048 / 2096 / 4192) lux with highest sensitivity 0.004 lux/step

Programmable interrupt function for ALS and PS with upper and lower thresholds

Adjustable persistence to prevent false triggers for ALS and PS

Handheld device

Notebook, tablet PC

Consumer device

Industrial application

選取全部	屬性	值
	品牌	MikroElektronika
	Product Type	Sensor Development Tool
	For Use With	Screen Backlight Adjustments, Proximity Activated Surveillance Systems, Lux Meters, Equipment LID Closing
	Kit Classification	Development Kit
	Standards/Approvals	RoHS

	選取全部
	品牌 MikroElektronika
	Product Type Sensor Development Tool
	For Use With Screen Backlight Adjustments, Proximity Activated Surveillance Systems, Lux Meters, Equipment LID Closing
	Kit Classification Development Kit
	Standards/Approvals RoHS

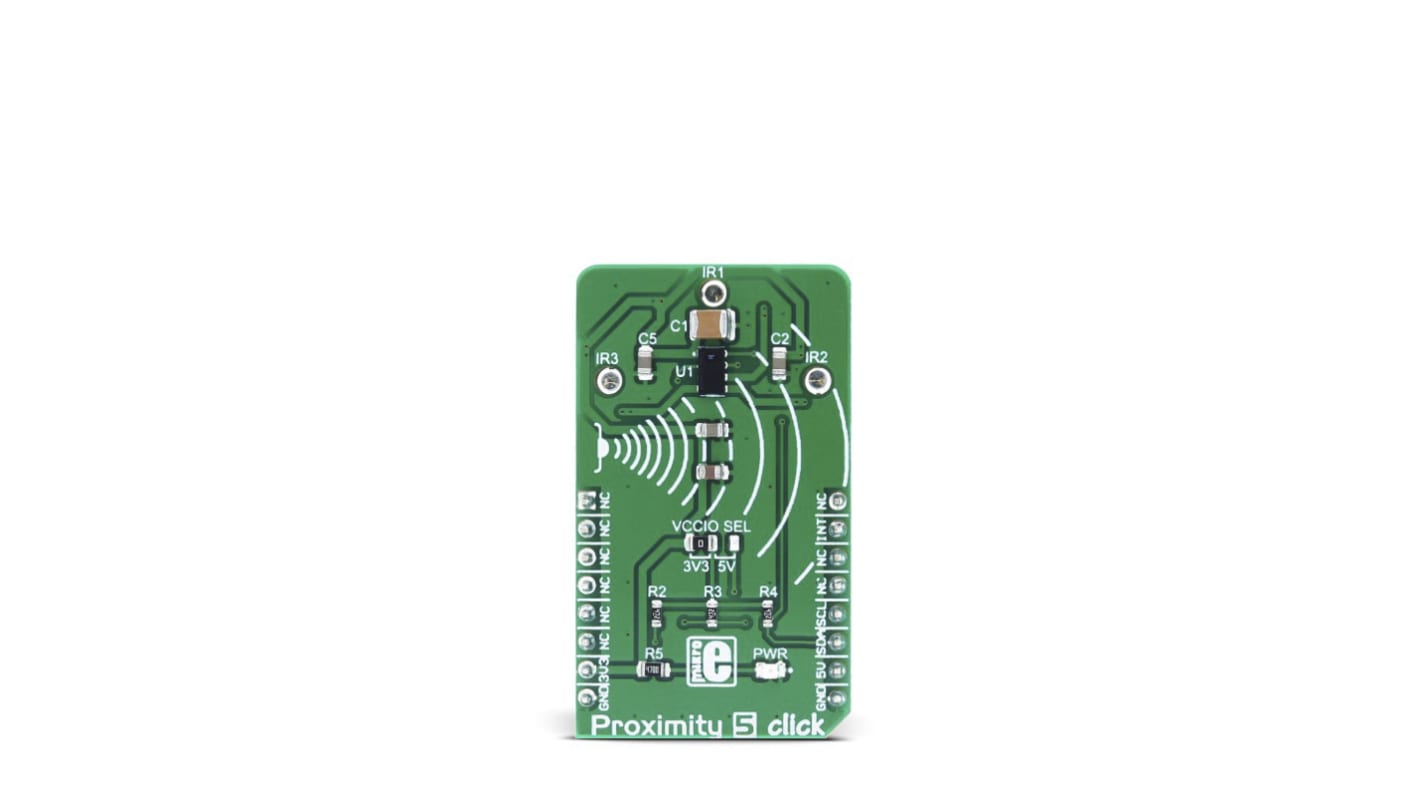

MikroElektronika Development Kit Screen Backlight Adjustments, Proximity Activated Surveillance Systems, Lux Meters,
