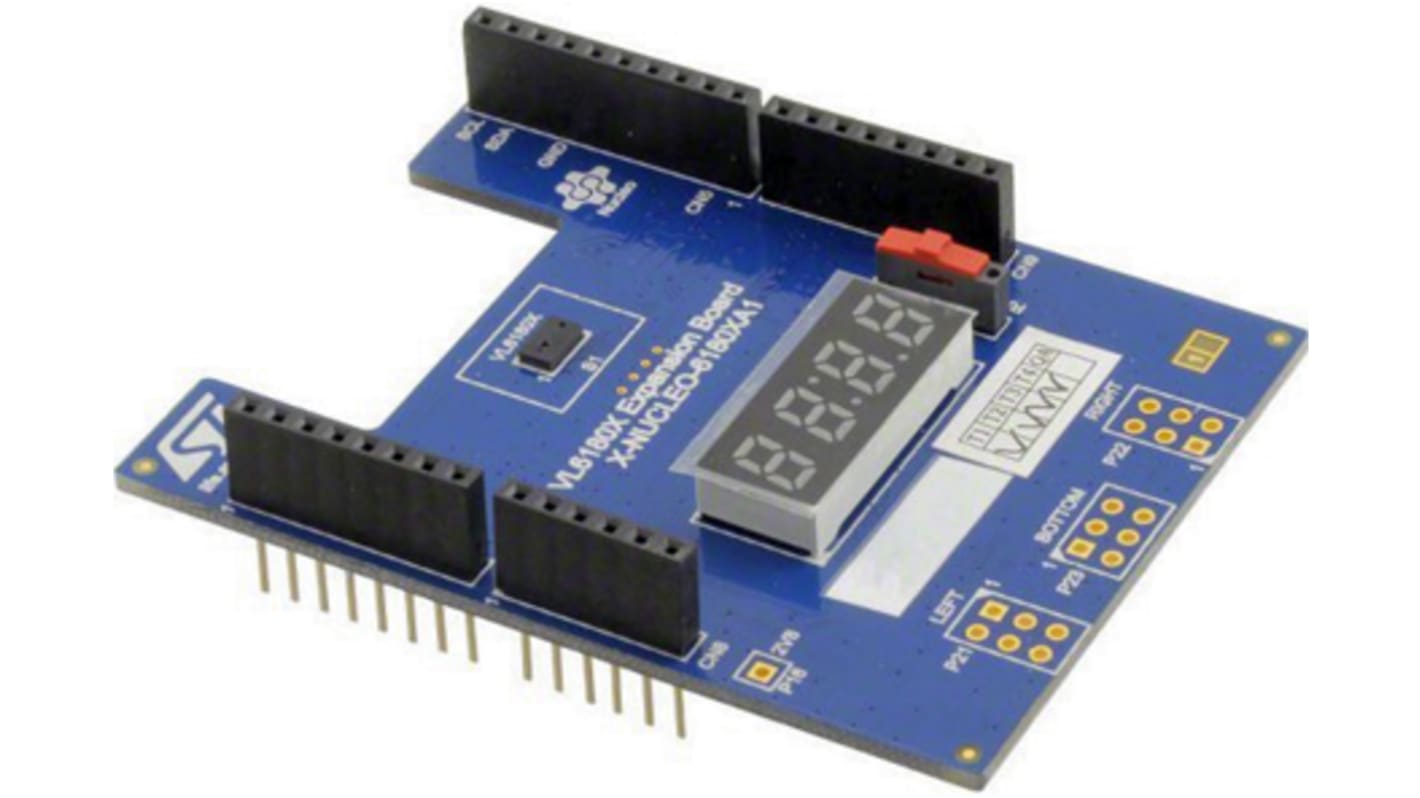

X-NUCLEO-6180XA1 VL6180X Gesture Sensor Expansion Board
The X-NUCLEO-6180XA1 expansion board features the VL6180X, a Proximity sensor, gesture and Ambient Light Sensing (ALS) module. The VL6180X is based on STMicroelectronics FlightSense™, Time-of-Flight technology. It is a board that provides an introduction and evaluation to the proximity, ranging and light sensing capabilities. Basic gesture recognition application can be developed with one or multiple VL6180X modules.
It is compatible with the STM32 Nucleo board family, and with the Arduino UNO R3 connector layout.
It is compatible with the STM32 Nucleo board family, and with the Arduino UNO R3 connector layout.
Slider switch controlling ranging measurement, beyond 400mm, and ambient light sensing, up to 100kLux
4-digit display, displaying either the distance of a target from the proximity sensor, or the lux illuminance value from the ambient light sensing (ALS)
Excellent ranging accuracy, independent of the reflectance of the target
4-digit display, displaying either the distance of a target from the proximity sensor, or the lux illuminance value from the ambient light sensing (ALS)
Excellent ranging accuracy, independent of the reflectance of the target
Sensor Interfaces, STMicroelectronics
規格
Attribute | Value |
---|---|
Featured Device | VL6180X |
Kit Classification | Expansion Board |
Kit Name | X-Nucleo |
