MikroElektronika Current Click Add On Board MikroBus
- RS庫存編號:
- 923-5996
- Distrelec 貨號:
- 301-54-905
- 製造零件編號:
- MIKROE-1396
- 製造商:
- MikroElektronika
可享批量折扣
查看批量定價選項小計（1 件）*
HK$371.00
訂單超過 HK$250.00 免費送貨
有庫存
- 9 件準備從其他地點送貨
**需要更多嗎？**輸入您需要的數量，然後按一下「查看送貨日期」以查詢更多庫存和送貨詳細資訊。
單位 | 每單位 |
|---|---|
| 1 - 4 | HK$371.00 |
| 5 + | HK$356.20 |
* 參考價格
- RS庫存編號:
- 923-5996
- Distrelec 貨號:
- 301-54-905
- 製造零件編號:
- MIKROE-1396
- 製造商:
- MikroElektronika
規格
產品概覽和技術數據資料表
法例與合規
產品詳細資訊
透過選取一個或多個屬性來查找類似產品。
選取全部 | 屬性 | 值 |
|---|---|---|
| 品牌 | MikroElektronika | |
| Product Type | Sensor Development Tool | |
| For Use With | MikroBus | |
| Kit Classification | Add On Board | |
| Standards/Approvals | RoHS | |
| Kit Name | Current Click | |
| 選取全部 | ||
|---|---|---|
品牌 MikroElektronika | ||
Product Type Sensor Development Tool | ||
For Use With MikroBus | ||
Kit Classification Add On Board | ||
Standards/Approvals RoHS | ||
Kit Name Current Click | ||
- COO (Country of Origin):
- RS

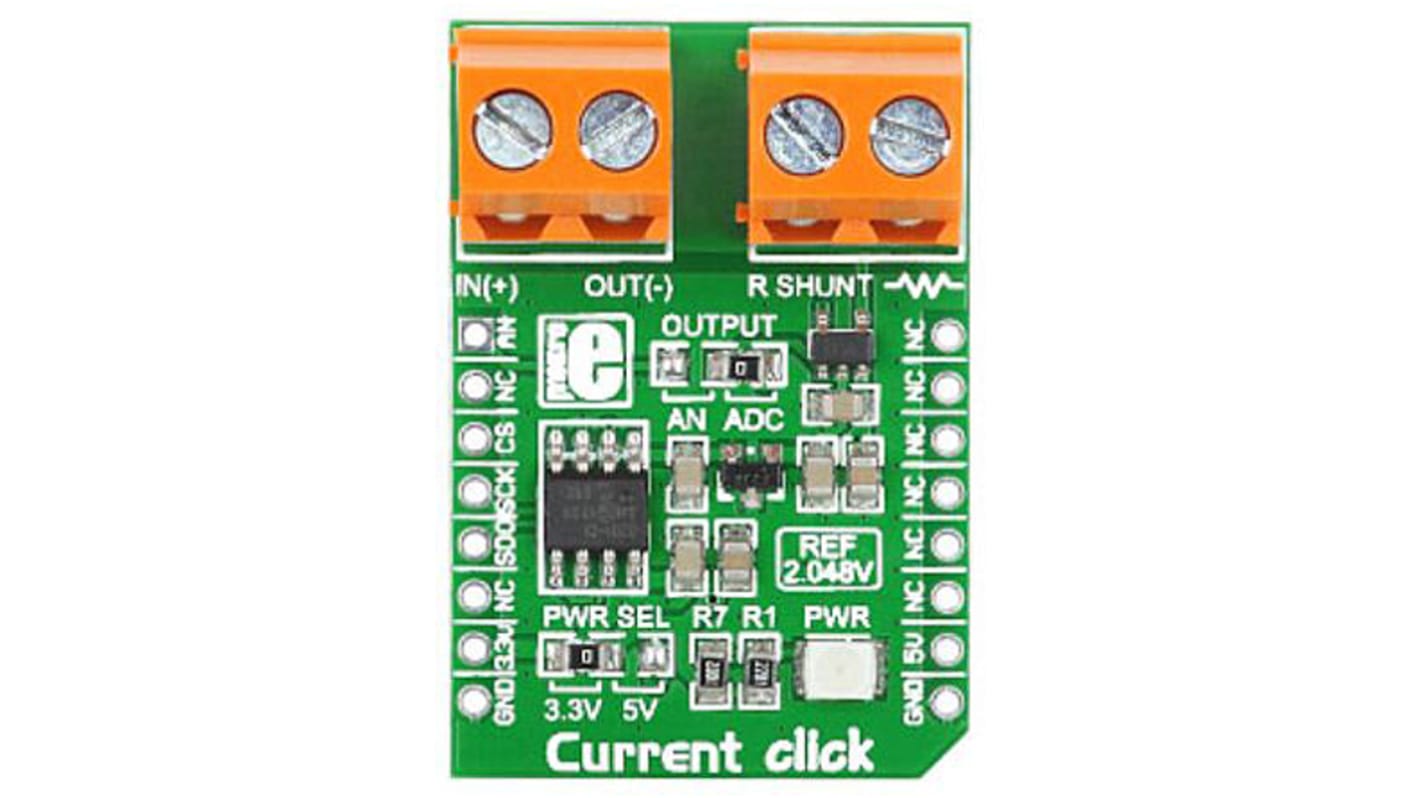

Current click mikroBUS™
The Click accessory modules plug into the mikroBUS™ sockets in MikroElektronika microcontroller development boards. Current Click is an accessory board that measures electric current and operates on a.3 V or 5 V power supply. The board features a current shunt monitor, 12-bit ADC, voltage reference and two screw terminals. The current shunt monitor converts the current into a voltage and the second screw terminal is for an external shunt. There are four shunts with different values letting you measure a range of current values. Communication with Current Click™ is via the mikroBUS™ SPI or AN lines. The Current click is ideal for current measurements in wide range applications.
Values range from 2 mA to 2048 mA (depending on the connected shunt)
mikroBUS Form factor
Supported in all MikroElektronika Compliers
Complete current sense solution
Supports bandwidth up to 500 kHz
Selectable AN or SPI communication interface
Four shunts provided in the package: 0.05 Ω, 0.2 Ω, 1 Ω and 10 Ω.
mikroBUS™ is a specially designed pinout standard with SPI, I2C, Analogue, UART, Interrupt, PWM, Reset and power supply pins
On Board: INA196 current shunt monitor/ MCP3201 12-bit Analogue to digital convertor/ MAX6106 voltage reference
Screw terminals
Note
Click board comes with the header strips soldered.
