MikroElektronika MIKROE-1534 SpeakUp Click Development Board Development Board

查看此類別
可享批量折扣
查看批量定價選項

小計（1 件）*

HK$390.70

Add to Basket
選擇或輸入數量
有庫存
  • 3 件準備從其他地點送貨
**需要更多嗎？**輸入您需要的數量，然後按一下「查看送貨日期」以查詢更多庫存和送貨詳細資訊。

單位
每單位
1 - 4HK$390.70
5 +HK$379.00

* 參考價格

RS庫存編號:
820-9817
Distrelec 貨號:
301-54-921
製造零件編號:
MIKROE-1534
製造商:
MikroElektronika
透過選取一個或多個屬性來查找類似產品。
選取全部

品牌

MikroElektronika

Product Type

Development Board

Interface Type

UART, USB

Standards/Approvals

RoHS

Kit Classification

Development Board

Kit Name

SpeakUp Click

Featured Device

Mikroe-1534

Converter Type

ADC/DAC

COO (Country of Origin):
RS

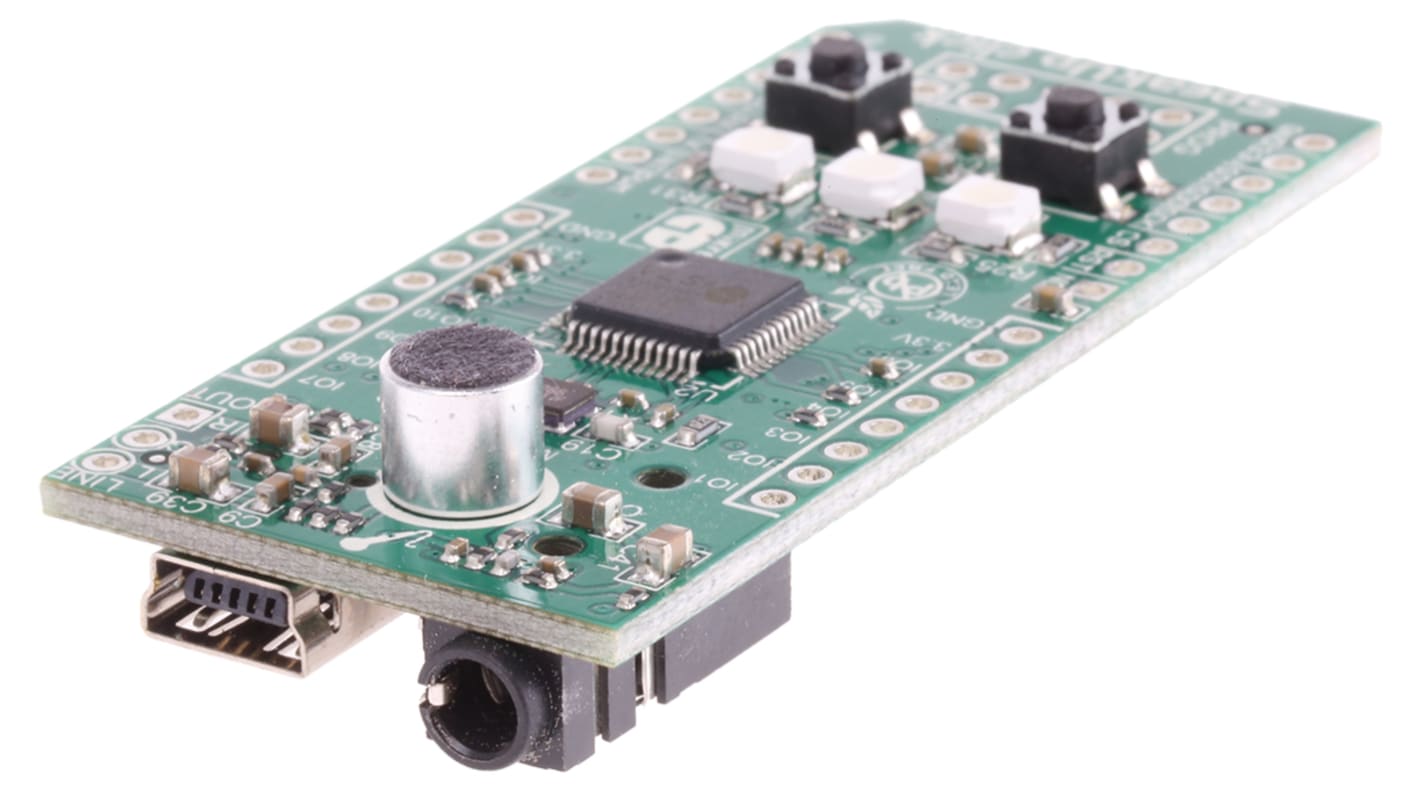

SpeakUp click mikroBUS™


The Click accessory modules plug into the MikroBUS sockets in MikroElektronika microcontroller development boards. The SpeakUp click board is a speaker-dependent speech recognition module with standalone capabilities. It works by matching sounds from the microphone with pre-recorded commands. Example application: Use SpeakUp with the Pi click Shield 811-7024 to command XBMC Home Media Center on a Raspberry Pi computer - replacing the mouse and keyboard.

STM32F415RG ARM Cortex-M4 microcontroller

On-board microphone

VS1053 stereo-audio CODEC

Can recognise over 200 voice commands

12 x User programmable GPIO pins for standalone functionality

2 x programming pushbuttons

2 x programming status LEDs

Standalone mode: On-board MCU directly controls external devices via user GPIO

Click mode: Sends index of the matched voice command to a selectable interface: USB or UART

3.5mm jack socket for external microphone

USB connector for PC programming

Power indicator LED

Power supply: +3.3Vdc

Click mikroBUS™ Human-Machine Interface Boards


Note

Click board comes with the header strips soldered.

Supplied with

User manual
