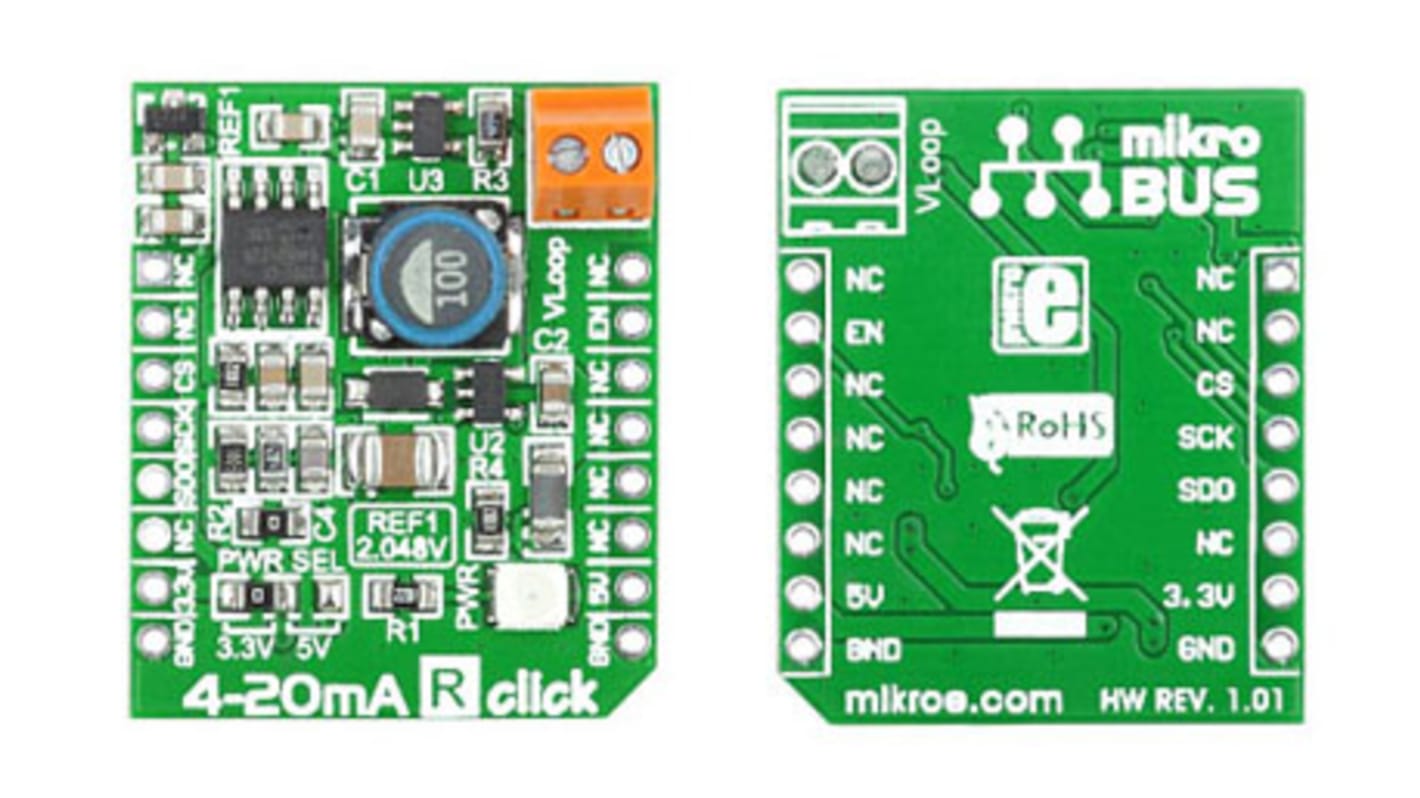

MikroElektronika MIKROE-1387 4-20mA R Click Add On Board Development Board

查看此類別

小計（1 件）*

HK$311.80

Add to Basket
選擇或輸入數量
有庫存
  • 14 件準備從其他地點送貨
  • 加上 10 件從 2026年5月19日 起發貨
**需要更多嗎？**輸入您需要的數量，然後按一下「查看送貨日期」以查詢更多庫存和送貨詳細資訊。
單位
每單位
1 +HK$311.80

* 參考價格

RS庫存編號:
882-8948
Distrelec 貨號:
301-54-904
製造零件編號:
MIKROE-1387
製造商:
MikroElektronika
透過選取一個或多個屬性來查找類似產品。
選取全部

品牌

MikroElektronika

Product Type

Development Board

Interface Type

USB, UART

Standards/Approvals

RoHS

Resolution

12 bit

Kit Name

4-20mA R Click

Converter Type

ADC/DAC

For Use With

mikroBUS Socket, Target Board Microcontroller

Kit Classification

Add On Board

Featured Device

Mikroe-1387

4-20 mA R click mikroBUS™


The 4-20 mA R click is an add-on board that works together with the 4-20 mA T click board (8828929) to create a complete 4-20 mA current loop standard - great for industrial process control and test system designs.

When plugged into a microcontroller board, the R click board works as a receiver that receives an output current from a transmitter. This is converted into a voltage using the AD converter. The voltage is then converted into a 12-bit digital signal that is sent through the SPI interface.

Key Features

•mikroBUS™ pinout standard

•INA196 current shunt monitor

•MCP3201 12-bit ADC

•TPS61041 DC/DC boost converter

•Suitable for 3.3 V or 5 V power supply

Click mikroBUS™ Interface Boards


Note

Click board comes with the header strips soldered.
