    Hongfa Europe GMBH PCB Mount Signal Relay, 3V dc Coil, 2A Switching Current, DPDT

    Hongfa Europe GMBH
    RS庫存編號:
    176-2706
    製造零件編號:
    HFD3/003
    製造商:
    Hongfa Europe GMBH
    查看所有Signal Relays
    2240 現貨庫存,可於3工作日發貨。
    Add to Basket
    單位

    已增加

    單價 毎管:40 個

    HK$16.304

    單位Per unitPer Tube*
    40 - 40HK$16.304HK$652.16
    80 - 120HK$15.896HK$635.84
    160 +HK$15.652HK$626.08
    * 參考價格
    RS庫存編號:
    176-2706
    製造零件編號:
    HFD3/003
    製造商:
    Hongfa Europe GMBH

    產品概覽和技術數據資料表


    法例與合規

    COO (Country of Origin):
    CN

    產品詳細資訊

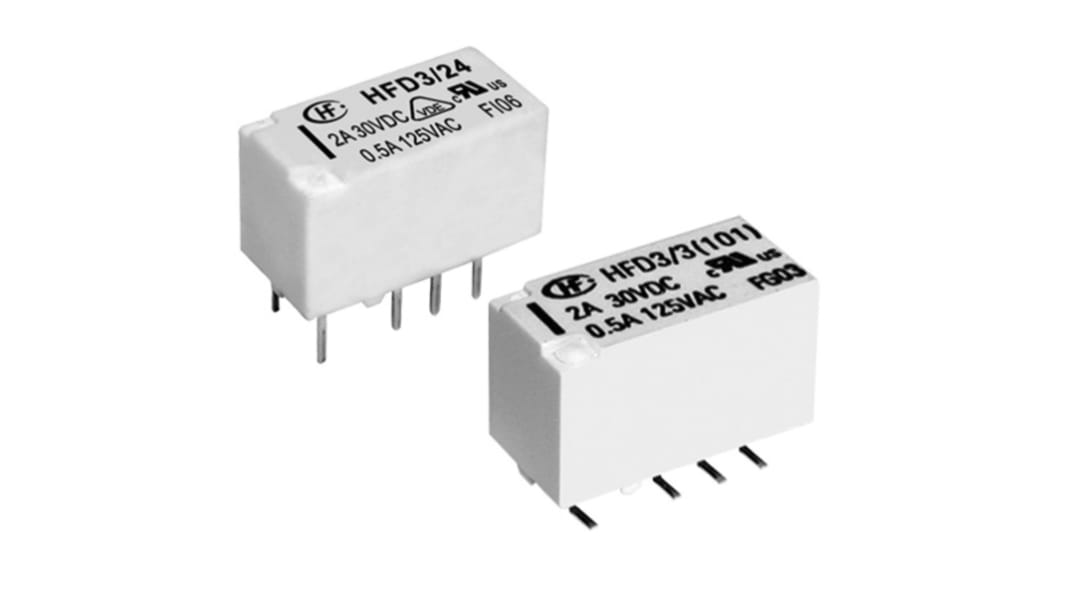

    Hongfa DPDT Non-Latching Relay


    The Hongfa DPDT non-latching electromagnetic PCB mount relay is a subminiature form power relay of intermediate category. It is actuated with the help of a 3VDC coil and up to 4A DC/AC current through the coil for the relay to switch positions. This relay has silver contacts.

    Features and Benefits


    • Power switching up to 90W in case of DC
    • Service temperature range between -40°C and 85°C
    • Isolation voltage between coil and contact is 2.5KVAC
    • Surge withstand voltage of 2500VAC
    • High contact capacity of 2A 30VDC
    • Single side stable type relay
    • Available in DIP terminal type
    • Low power consumption

    Applications


    • Used as a control device
    • Automotive industry

    For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.


    規格

    Attribute
    Value
    Coil Voltage3V dc
    Contact ConfigurationDPDT
    Mounting TypePCB Mount
    Maximum Switching Current AC4 A
    Maximum Switching Current DC4 A
    Maximum Switching Voltage AC277V
    Maximum Switching Voltage DC220V
    SeriesHFD3
    Maximum Switching Power DC90 W
    LatchingNo
    Length15mm
    Depth7.3mm
    Height9.2mm
    Dimensions15 x 7.5 x 9mm
    Terminal TypePCB Pin
    Number of Poles2
    Switching Current2A
    Isolation Coil To Contact2kV ac
    Contact MaterialGold Plated
    FeaturesSMT And DIP Types Available, Bifurcated Contacts, Single Side Stable And Latching Type Available
    Operating Temperature Range-40 → +85°C
    Coil Resistance64.3Ω
    Maximum Switching Power AC62.5VA
    Life1 x 10^8 cycles
    Coil Power140mW
    Maximum Operating Temperature+85°C
    Minimum Operating Temperature-40°C
    Relay Switching ClassificationSubminiature Signal Relay
    Electrical Life100000 Operations
