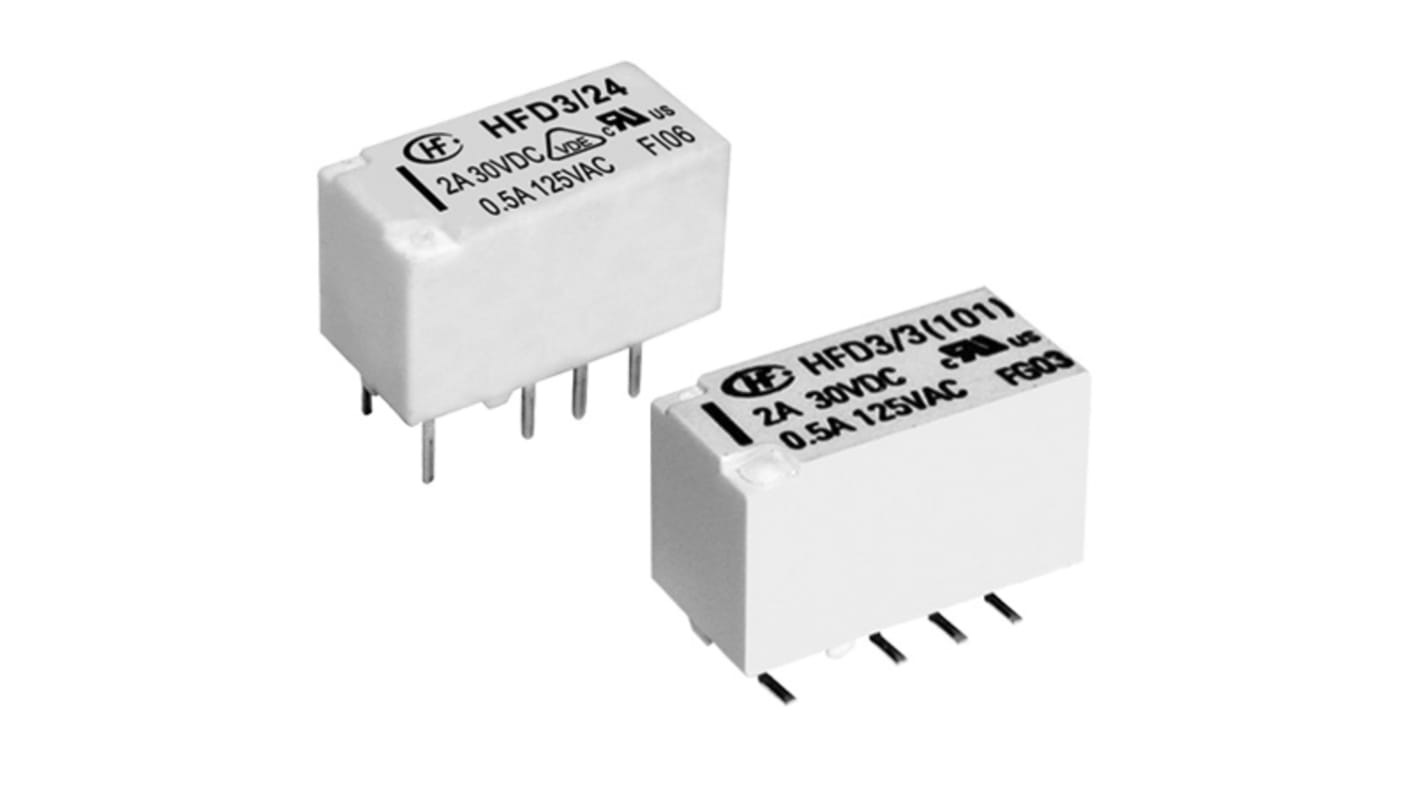

Hongfa Europe GMBH PCB Mount Signal Relay, 12V dc Coil, 2A Switching Current, DPDT
- RS庫存編號:
- 176-2712
- 製造零件編號:
- HFD3/012
- 製造商:
- Hongfa Europe GMBH
查看所有Signal Relays
200 現貨庫存，可於3工作日發貨。
單價 毎管：40 個
HK$16.304
| 單位 | Per unit | Per Tube* |
| 40 - 40 | HK$16.304 | HK$652.16 |
| 80 - 120 | HK$15.896 | HK$635.84 |
| 160 + | HK$15.652 | HK$626.08 |
| * 參考價格 | ||
- RS庫存編號:
- 176-2712
- 製造零件編號:
- HFD3/012
- 製造商:
- Hongfa Europe GMBH
產品概覽和技術數據資料表
法例與合規
- COO (Country of Origin):
- CN
產品詳細資訊
Surge withstand voltage up to 2500VAC,
SMT and DIP types available
Bifurcated contacts
Single side stable and latching type available
Environmental friendly product
Outline Dimensions: (15.0 x 7.5 x 9.0) mm
SMT and DIP types available
Bifurcated contacts
Single side stable and latching type available
Environmental friendly product
Outline Dimensions: (15.0 x 7.5 x 9.0) mm
For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.
規格
| Attribute | Value |
| Coil Voltage | 12V dc |
| Contact Configuration | DPDT |
| Mounting Type | PCB Mount |
| Maximum Switching Current AC | 4 A |
| Maximum Switching Current DC | 4 A |
| Maximum Switching Voltage AC | 277V |
| Maximum Switching Voltage DC | 220V |
| Series | HFD3 |
| Maximum Switching Power DC | 90 W |
| Length | 15mm |
| Latching | No |
| Depth | 7.5mm |
| Height | 9.4mm |
| Dimensions | 15 x 7.5 x 9mm |
| Terminal Type | PCB Pin |
| Switching Current | 2A |
| Number of Poles | 1 |
| Contact Material | Gold Plated |
| Relay Switching Classification | Subminiature Signal Relay |
| Minimum Operating Temperature | -40°C |
| Features | SMT And DIP Types Available, Bifurcated Contacts, Single Side Stable And Latching Type Available |
| Isolation Coil To Contact | 1kV ac |
| Operating Temperature Range | -40 → +85°C |
| Coil Resistance | 1028Ω |
| Maximum Switching Power AC | 62.5VA |
| Life | 1 x 10^8 cycles |
| Electrical Life | 100000 Operations |
| Maximum Operating Temperature | +85°C |
| Coil Power | 140mW |
