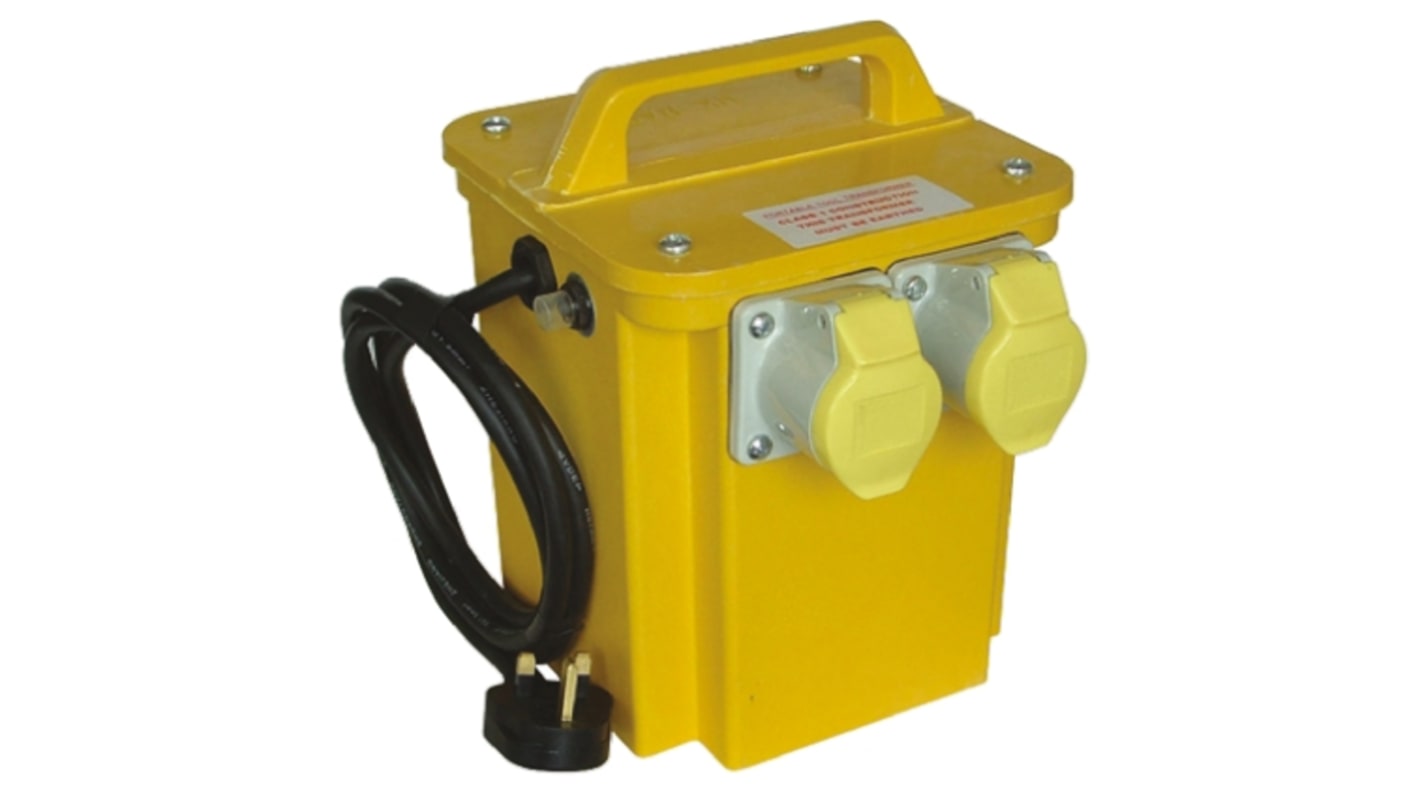

Carroll & Meynell Single Phase 1.65kVA Site Transformer, 230V ac Primary, ±55V ac Secondary, 10A O/P

Portable Safety Isolating Transformers, 1-phase 230Vac in, 110Vac out

Brought to you by Carroll & Meynell, this high quality portable safety isolating transformers provides safe site electrics for power tools and lighting. Encased in a rugged insulated and splashproof GRP enclosure, this high quality safety isolating transformer is suited for tough conditions.

Features and Benefits:
• Double-wound construction
• Secondary centre-tap earthed to minimise shock risk
• Thermal safety fuse embedded into primary winding
• Resettable thermal cut-out in primary circuit to prevent overload
• Approx. 2m mains cable fitted with UK 13A plug (plug not fitted to CM40002, see Note below)

This range of Portable Safety Isolating Tranformers includes:
• Stock number 260-4244 is a single socket 375VA transformer
• Stock number 260-4250 is a single socket 500VA transformer
• Stock number 260-4272 is a dual socket 750VA transformer
• Stock number 260-4288 is a dual socket 1125VA transformer
• Stock number 260-4294 is a dual socket 1650VA transformer
• Stock number 260-4301 is a dual socket 2000VA transformer

Note

1) CM40002 (260-4301) maximum input current 23A. It is recommended that this unit is connected into a suitably fused high-current circuit. Maximum output must not exceed 16A per socket outlet. VA tool rating is for 25% duty cycle, i.e. 5 minutes on / 15 minutes off
2) The dimensional information given is for the body only and does not account for the protrusion of the sockets from the front of the body
