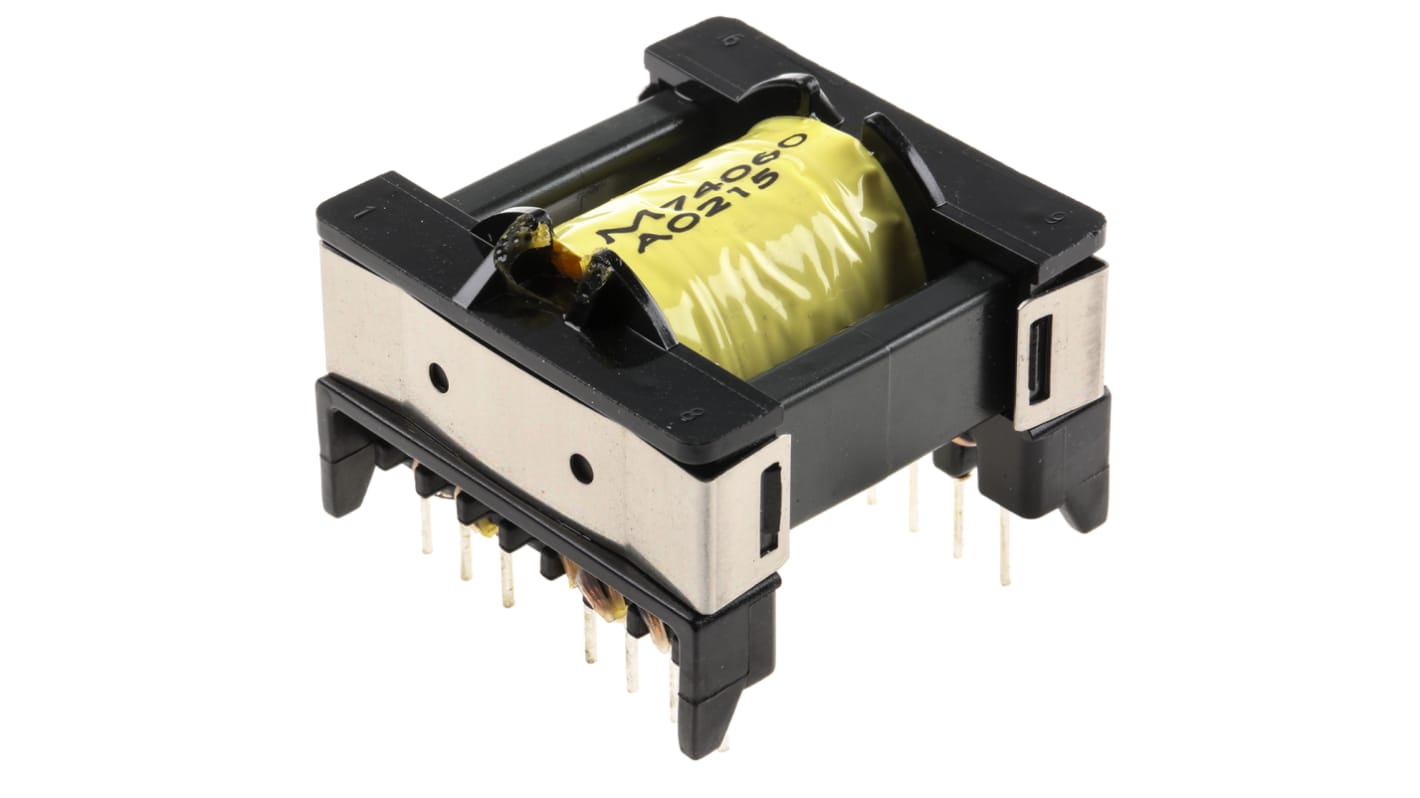

Myrra 2 Output SMPS Transformer 120 W Output, 265 V ac, 15.5 V dc, 440 μH

查看所有SMPS Transformers
可享批量折扣

小計（1 件）*

HK$147.40

Add to Basket
選擇或輸入數量
有庫存
  • 加上 44 件從 2026年5月04日 起發貨
**需要更多嗎？**輸入您需要的數量，然後按一下「查看送貨日期」以查詢更多庫存和送貨詳細資訊。

單位
每單位
1 - 24HK$147.40
25 - 49HK$143.00
50 - 99HK$138.60
100 - 249HK$135.60
250 +HK$132.60

* 參考價格

RS庫存編號:
418-4073
製造零件編號:
74060
製造商:
Myrra
透過選取一個或多個屬性來查找類似產品。
選取全部

品牌

Myrra

Secondary Voltage

15.5 V dc

Product Type

SMPS Transformer

Primary Voltage

265 V ac

Number of Outputs

2

Inductance

440μH

Power

120W

Secondary Current

4A

Maximum Operating Temperature

50°C

Series

ETD 39

Standards/Approvals

CEI61558, CEI335, CEI950

Isolation Voltage

3750V ac

Maximum Operating Frequency

100kHz

Minimum Operating Frequency

70kHz

Switch mode power supply transformers format E25 & ETD, 15 W switch mode


From Myrra the E25 and ETD Series flyback transformers form the core of a switch mode power supply in association with a specialised circuit (VIPer, TOPSwitch, CoolSet, or control circuit + Mosfet.) Constructed with reinforced insulation, the E25 and ETD Series of flyback transformers exclusively use UL94-V0 listed materials.

Features and Benefits:

• Primary / Secondary Insulation ≥ 4000V

• Primary / Auxiliary Insulation ≥ 1500V

• Creepage distance Primary / Secondary ≥ 8mm

• Secondaries can be connected in series or in parallel.

• Materials comply with UL94-V0

Open Frame - Laminated


PCB mounting mains transformers with a single 230Va.c. or twin 115Va.c. 50/60Hz primary winding. Independent secondary windings may be connected in series or parallel to give a wide range of output voltage and current options.

Double section metric bobbin construction

Full varnish impregnation

Standards

IEC 950, IEC 61558 for reinforced insulation
