- RS庫存編號:
- 742-7468
- 製造零件編號:
- 2967015
- 製造商:
- Phoenix Contact
查看所有Solid State Interface Relays
- RS庫存編號:
- 742-7468
- 製造零件編號:
- 2967015
- 製造商:
- Phoenix Contact
法例與合規
- COO (Country of Origin):
- DE
產品詳細資訊
PLC Interface Relays
A series of PLC Interface relays from Phoenix contact. A durable build ensures perfect connection with your application. All models are highly reliable and excellent quality.
Features & Benefits
Different width dimensions: 6.2 mm, 14 mm
Assembly instructions: in rows with zero spacing
Screw connection
Wide range of accessories also available
Assembly instructions: in rows with zero spacing
Screw connection
Wide range of accessories also available

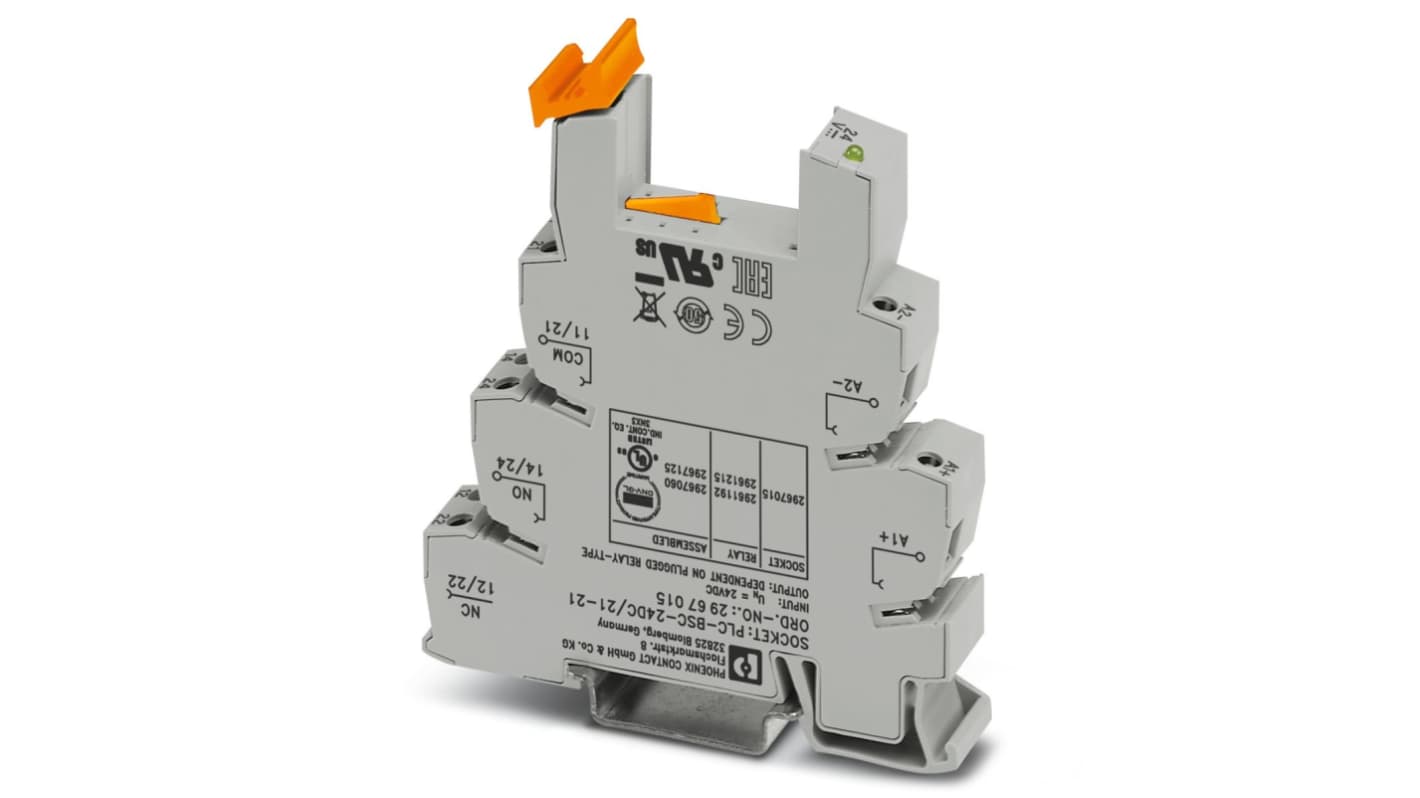

Phoenix Contact PLC Terminal Block, 14mm - PLC-BSC- 24DC/21-21 - 2967015
Connect your wiring and components simply and safely with this PLC (programmable logic controller) terminal block from Phoenix Contact. It's designed with slots that house solid-state relays, so there are no moving parts and less chance of breaking. You can mount it on a standard DIN rail for easy installation and compatibility with common fixtures.
The terminal features screw-in connections, allowing you to wire components in securely with minimal tooling. You can remove them just as quickly, so it's easy to adapt, update and rearrange your circuits as needed. This durable component has a wide operating temperature range of -40°C to +60°C, so it's suitable for use in extreme conditions.
The terminal features screw-in connections, allowing you to wire components in securely with minimal tooling. You can remove them just as quickly, so it's easy to adapt, update and rearrange your circuits as needed. This durable component has a wide operating temperature range of -40°C to +60°C, so it's suitable for use in extreme conditions.
Cable cross-sectional area of 2.5mm²
Green in colour
Voltage rating of 24V DC
Wire size of 26 to 14AWG (American Wire Gauge)
LED (light-emitting diode) status display
UL (Underwriter Laboratories) 94-V0 rating indicates materials will burn for no more than 15 seconds when exposed to a naked flame
Fully compliant with the Restriction of Hazardous Substances (RoHS), meaning it contains minimal or no potentially harmful materials
Green in colour
Voltage rating of 24V DC
Wire size of 26 to 14AWG (American Wire Gauge)
LED (light-emitting diode) status display
UL (Underwriter Laboratories) 94-V0 rating indicates materials will burn for no more than 15 seconds when exposed to a naked flame
Fully compliant with the Restriction of Hazardous Substances (RoHS), meaning it contains minimal or no potentially harmful materials
規格
Attribute | Value |
---|---|
Manufacturer Part No. | 2967015 |
