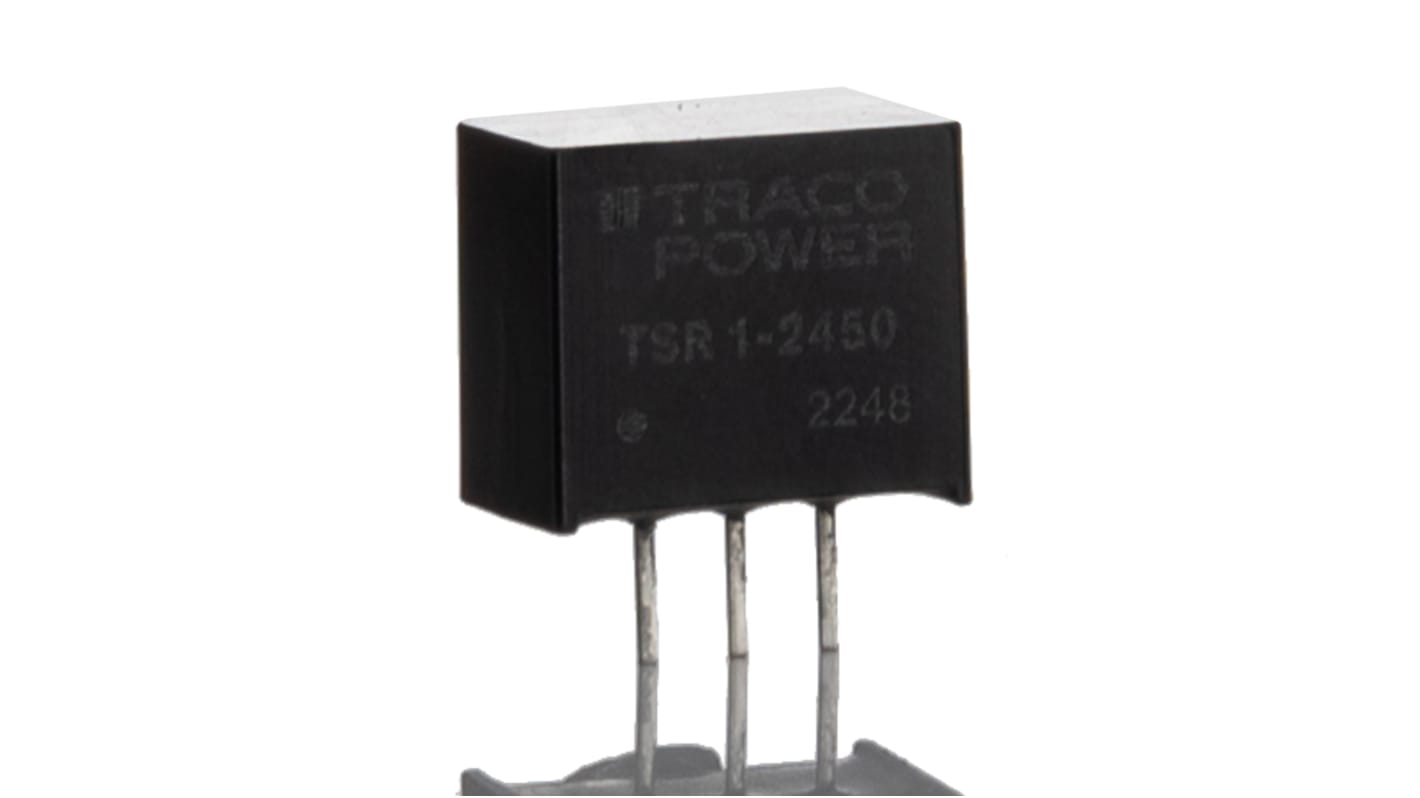

TRACOPOWER Switching Regulator, Through Hole, 5V dc Output Voltage, 1 A Output Current
- RS庫存編號:
- 124-7657
- 製造零件編號:
- TSR 1-2450
- 製造商:
- TRACOPOWER
此圖片僅供參考，請參閲產品詳細資訊及規格
可享批量折扣
查看批量定價選項小計（1 管，共 10 件）*
HK$466.40
訂單超過 HK$250.00 免費送貨
有庫存
- 80 件準備從其他地點送貨
- 加上 104 件從 2026年9月30日 起發貨
- 加上 100 件從 2026年10月01日 起發貨
**需要更多嗎？**輸入您需要的數量，然後按一下「查看送貨日期」以查詢更多庫存和送貨詳細資訊。
管 | 每管 | 每單位* |
|---|---|---|
| 1 - 1 | HK$466.40 | HK$46.64 |
| 2 - 9 | HK$456.20 | HK$45.62 |
| 10 + | HK$442.60 | HK$44.26 |
* 參考價格
- RS庫存編號:
- 124-7657
- 製造零件編號:
- TSR 1-2450
- 製造商:
- TRACOPOWER
規格
產品概覽和技術數據資料表
法例與合規
產品詳細資訊
透過選取一個或多個屬性來查找類似產品。
選取全部 | 屬性 | 值 |
|---|---|---|
| 品牌 | TRACOPOWER | |
| Product Type | Switching Regulator | |
| Output Voltage 1 | 5V dc | |
| Output Current | 1A | |
| Mount Type | Through Hole | |
| Number of Outputs | 1 | |
| Power | 5W | |
| Efficiency | 93% | |
| Ripple and Noise | 50mV Pk-Pk | |
| Maximum Operating Temperature | 85°C | |
| Minimum Operating Temperature | -40°C | |
| Series | TSR 1 | |
| Package Type | SIP-3 | |
| Line Regulation | ±0.2 % | |
| Standards/Approvals | CE | |
| Width | 10.2mm | |
| Length | 11.7mm | |
| Depth | 10.2mm | |
| Weight | 1.9g | |
| Maximum Input Voltage | 36V dc | |
| Load Regulation | ±0.4 % | |
| Minimum Input Voltage | 6.5V | |
| MTBF | 5350000h | |
| 選取全部 | ||
|---|---|---|
品牌 TRACOPOWER | ||
Product Type Switching Regulator | ||
Output Voltage 1 5V dc | ||
Output Current 1A | ||
Mount Type Through Hole | ||
Number of Outputs 1 | ||
Power 5W | ||
Efficiency 93% | ||
Ripple and Noise 50mV Pk-Pk | ||
Maximum Operating Temperature 85°C | ||
Minimum Operating Temperature -40°C | ||
Series TSR 1 | ||
Package Type SIP-3 | ||
Line Regulation ±0.2 % | ||
Standards/Approvals CE | ||
Width 10.2mm | ||
Length 11.7mm | ||
Depth 10.2mm | ||
Weight 1.9g | ||
Maximum Input Voltage 36V dc | ||
Load Regulation ±0.4 % | ||
Minimum Input Voltage 6.5V | ||
MTBF 5350000h | ||
- COO (Country of Origin):
- TW
Traco Power Switching Regulator, SIP3 Package, 5W Power Rating - TSR 1 Series - TSR 1-2450
Is your power supply's voltage too high for your equipment? Turn it down with this Traco Power switching regulator. As it switches inputs between 6.5 and 36V DC to a 5V DC load, it's a go-to choice for dialling down standard electrical supplies. Thanks to its ±0.2% line regulation rating, the unit's output stays steady to keep its system running without a hitch. Slotting the device onto a PCB is no issue as it fixes using simple through-hole mounting. By converting up to 94% of its input voltage, the component pulls the plug on power waste to make for energy-efficient switching.
Features & Benefits
• Maximum ripple voltage of 50mV to Block out disruption to power connections from noise
• Plastic and silicone body for effective insulation against hazardous electrical loads
• Integrated short-circuit protection automatically restarts after faults, cutting back on downtime
• Responds to load changes in 250μs, so it keeps up with unstable power supplies
Applications
• Automotive industry
• Domestic appliances
• Robotics systems
Do I need to mount a heat sink to use this product?
No, this regulator's high conversion efficiency means it cuts down on heat generation, so there's no need to fit a heat sink.
