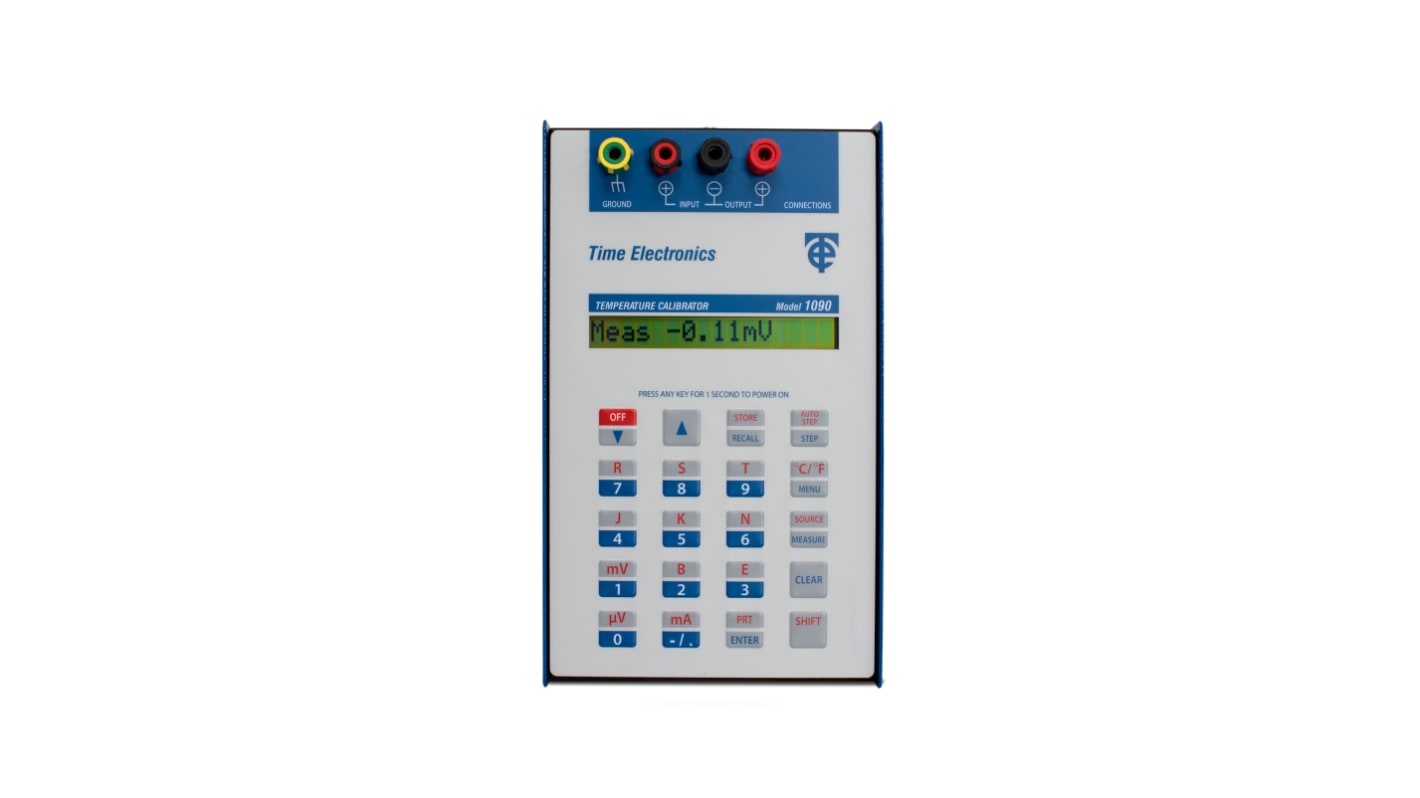

Time Electronics 1090 Temperature Calibrator

RS庫存編號:: 408-8767
製造零件編號:: 1090
製造商:: Time Electronics

Time Electronics 1090 Temperature Calibrator

此圖片僅供參考，請參閲產品詳細資訊及規格

小計（1 件）*

HK$20,097.50

訂單超過 HK$250.00 免費送貨

暫時缺貨

2 件從 2026年12月18日起裝運發貨

**需要更多嗎？**輸入您需要的數量，然後按一下「查看送貨日期」以查詢更多庫存和送貨詳細資訊。

單位	每單位
1 +	HK$20,097.50

* 參考價格

RS庫存編號:: 408-8767
製造零件編號:: 1090
製造商:: Time Electronics

規格

產品概覽和技術數據資料表

法例與合規

產品詳細資訊

透過選取一個或多個屬性來查找類似產品。

選取全部	屬性	值
	品牌	Time Electronics
	Product Type	Temperature Calibrator
	Resolution	0.1 °C, 0.1 °F
	Calibrator Type	Thermocouple Calibrator
	Battery Type	NiMH
	Accuracy	0.2 °C
	Thermocouple Type	B, E, J, K, N, R, S, T
	Temperature Scale	Centigrade, Fahrenheit
	Power Source	Mains
	Maximum Thermocouple Temperature	1800°C
	Battery Life	60h
	Height	235mm
	Standards/Approvals	ISO 17025, ITS 90 EN60751
	Length	75mm
	Width	150mm
	Weight	1.2kg

	選取全部
	品牌 Time Electronics
	Product Type Temperature Calibrator
	Resolution 0.1 °C, 0.1 °F
	Calibrator Type Thermocouple Calibrator
	Battery Type NiMH
	Accuracy 0.2 °C
	Thermocouple Type B, E, J, K, N, R, S, T
	Temperature Scale Centigrade, Fahrenheit
	Power Source Mains
	Maximum Thermocouple Temperature 1800°C
	Battery Life 60h
	Height 235mm
	Standards/Approvals ISO 17025, ITS 90 EN60751
	Length 75mm
	Width 150mm
	Weight 1.2kg

豁免

COO (Country of Origin):: GB

Temperature & mV/mA Calibrator 1090

A high performance portable instrument combining source and measure functions for thermocouples, Pt100, mV and mA.

Measures/simulates 8 thermocouple types J, K, T, R, S, B, N, E: Pt100, mV and mA

Displays in selectable units in °C/°F, uV/m

Large backlit super-twist LCD display, 7.5 mm digits

Sealed membrane keypad

Automatic or manual cold junction compensation

Memory storage of frequently used values

Sturdy carrying case with test lead compartment

Equivalent converted uV/Pt 100 resistance can be displayed on both source & measure

Rechargeable battery 50+ hrs use. Auto power save button

Auto step function with configurable step time

24V process loop drive mode

Note

Pt100 simulation: 14 set values to within ±0.1% of DIN43760, -100, -50, -20, 0, 20, 50, 100, 200, 300, 400, 500, 600, 700, 800 deg C.Pt 100 Measure: 20Ω (-200 °C) to 350Ω (700 °C) accuracy:±0.5%

Supplied with

carry case and mains recharger
