- RS庫存編號:
- 344-546
- 製造零件編號:
- TC4810-01-110/240VAC
- 製造商:
- Tempatron
查看所有Temperature Controllers
- RS庫存編號:
- 344-546
- 製造零件編號:
- TC4810-01-110/240VAC
- 製造商:
- Tempatron
法例與合規
- COO (Country of Origin):
- GB
產品詳細資訊

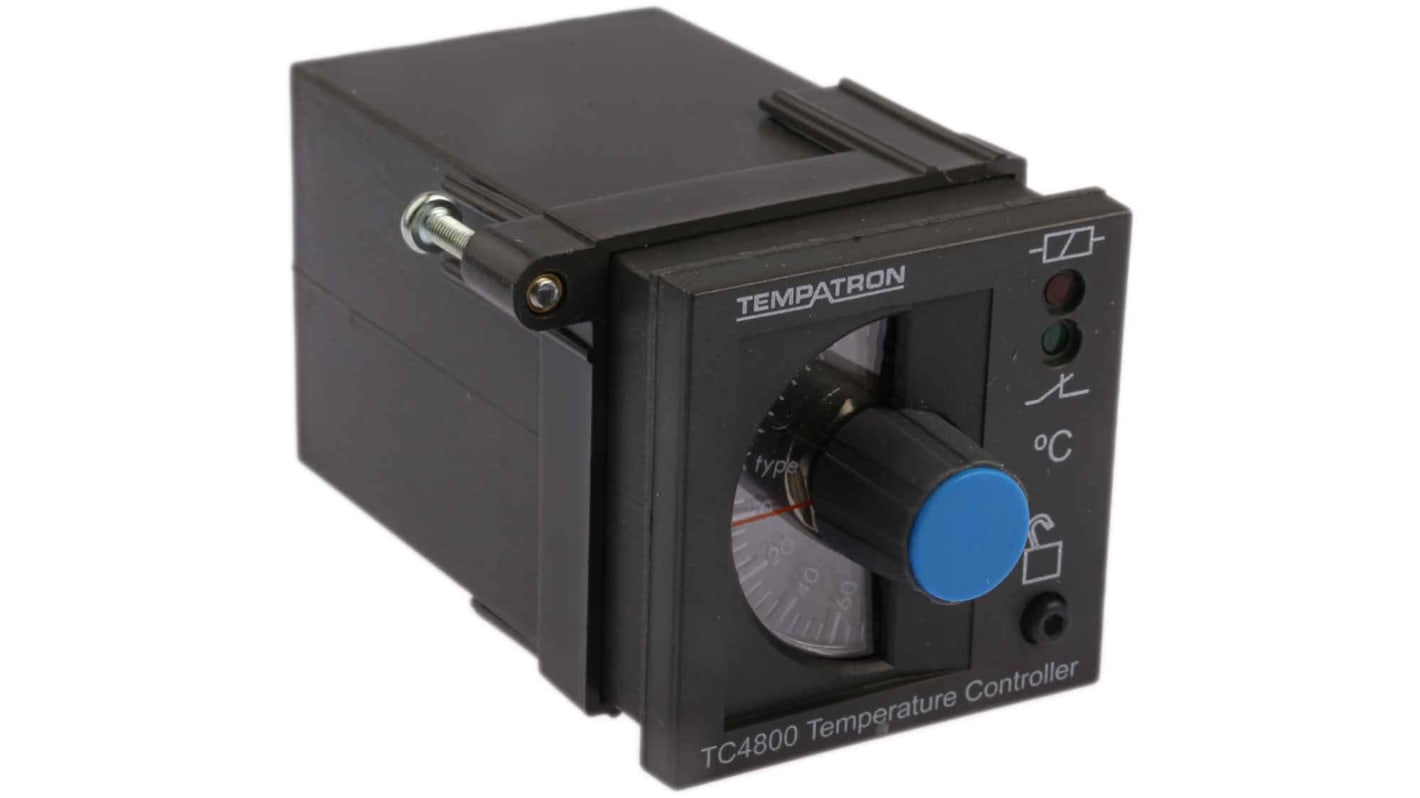

Tempatron Temperature Controller
The Tempatron TC4800 series temperature controller has a supply voltage rating ranging from 110VAC to 240VAC. This controller has a length of 48mm and width of 48mm. It is available in ON/OFF, PD (proportional and derivative) and latching versions, designed for simple control of temperature. The controller operates on K type thermocouple input. The controller is housed in a compact DIN48 square enclosure that can be 1/16 DIN rail mount to a socket.
Analogue:
This temperature controller has an operating voltage range of 110/240VAC, an ambient temperature range from -10°C to 50°C and LED status and supply indication. The panel cut out dimensions are 45mm x 45mm.
Analogue:
This temperature controller has an operating voltage range of 110/240VAC, an ambient temperature range from -10°C to 50°C and LED status and supply indication. The panel cut out dimensions are 45mm x 45mm.
Features and Benefits
Scale range is 0°C to 200°C (K type thermocouple)
LED status and supply indication
Use any suitable 50-0-50μA meter for deviation readings
PD types have 'over temperature', 'in-band' and 'under temperature' LED's
Supplied with hex key to lock temperature setting
Reverse or direct action
Relay output
Matching timers and tachometer relays
LED status and supply indication
Use any suitable 50-0-50μA meter for deviation readings
PD types have 'over temperature', 'in-band' and 'under temperature' LED's
Supplied with hex key to lock temperature setting
Reverse or direct action
Relay output
Matching timers and tachometer relays
Certifications
EN50081-1
EN50082-1 for EMC
EN61010-1
IP40 rated
EN50082-1 for EMC
EN61010-1
IP40 rated
規格
Attribute | Value |
Output Type | Relay |
Supply Voltage | 110 → 240 V ac |
Size | 48 x 48mm |
Minimum Operating Temperature | -10°C |
Maximum Operating Temperature | +50°C |
Mounting Type | 1/16 DIN |
Input Type | K Type Thermocouple |
Range | 0 → +200 °C |
Panel Depth | 89mm |
Termination Type | Screw |
