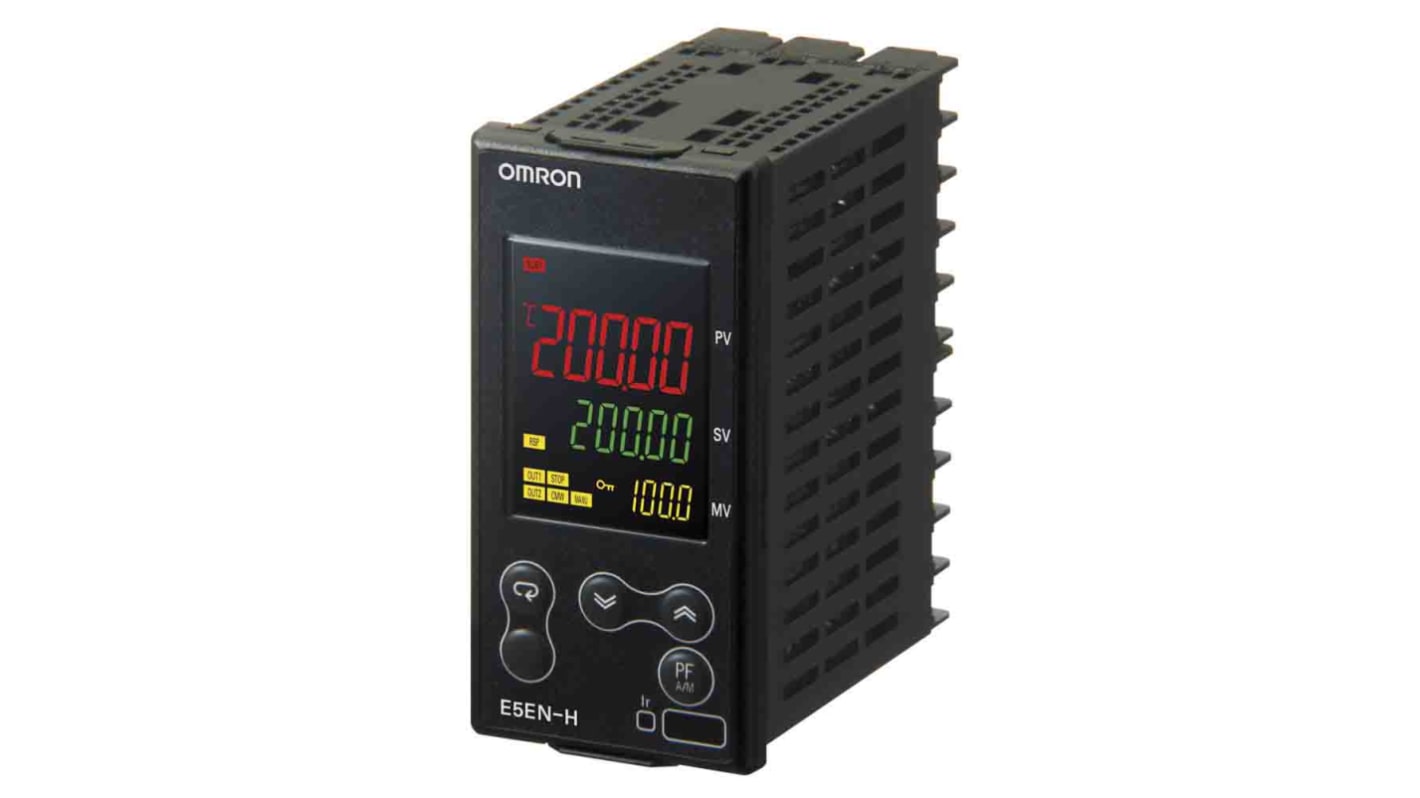

Omron E5EN Panel Mount PID Temperature Controller 2 Input, 2 Output Relay 24V ac/dc On-Off, PID, Proportional Valve
- RS庫存編號:
- 215-4015
- 製造零件編號:
- E5EN-HPRR2BMD-500 24VAC/DC
- 製造商:
- Omron
小計（1 件）*
HK$5,694.91
訂單超過 HK$250.00 免費送貨
暫時缺貨
- 從 2026年5月22日 發貨
**需要更多嗎？**輸入您需要的數量，然後按一下「查看送貨日期」以查詢更多庫存和送貨詳細資訊。
單位 | 每單位 |
|---|---|
| 1 + | HK$5,694.91 |
* 參考價格
- RS庫存編號:
- 215-4015
- 製造零件編號:
- E5EN-HPRR2BMD-500 24VAC/DC
- 製造商:
- Omron
規格
產品概覽和技術數據資料表
法例與合規
產品詳細資訊
透過選取一個或多個屬性來查找類似產品。
選取全部 | 屬性 | 值 |
|---|---|---|
| 品牌 | Omron | |
| Output Type | Relay | |
| Product Type | PID Temperature Controller | |
| Number of Inputs | 2 | |
| Number of Outputs | 2 | |
| Maximum Current | 20mA | |
| Minimum Operating Temperature | -10°C | |
| Maximum Operating Temperature | 55°C | |
| Control Type | On-Off, PID, Proportional Valve | |
| Terminal Type | Screw | |
| Maximum Supply Voltage | 24V ac/dc | |
| Maximum Voltage | 26.4V | |
| Length | 96mm | |
| Standards/Approvals | UL, CSA | |
| Width | 48 mm | |
| IP Rating | IP00, IP20, IP66 | |
| Input Type | Analogue, PT100, Thermocouple, Universal | |
| Series | E5EN | |
| Mount Type | Panel Mount | |
| Panel Depth | 78mm | |
| 選取全部 | ||
|---|---|---|
品牌 Omron | ||
Output Type Relay | ||
Product Type PID Temperature Controller | ||
Number of Inputs 2 | ||
Number of Outputs 2 | ||
Maximum Current 20mA | ||
Minimum Operating Temperature -10°C | ||
Maximum Operating Temperature 55°C | ||
Control Type On-Off, PID, Proportional Valve | ||
Terminal Type Screw | ||
Maximum Supply Voltage 24V ac/dc | ||
Maximum Voltage 26.4V | ||
Length 96mm | ||
Standards/Approvals UL, CSA | ||
Width 48 mm | ||
IP Rating IP00, IP20, IP66 | ||
Input Type Analogue, PT100, Thermocouple, Universal | ||
Series E5EN | ||
Mount Type Panel Mount | ||
Panel Depth 78mm | ||
The Omron temperature controller series are high resolution and high speed controller having logic operation and preventive maintenance function .The temperature controller has a compact body that is ideal for small equipment, laboratory instruments and can be easily connected to PLC with program less communication. It has preventive maintenance for relays in the temperature controller using a control output ON/OFF counter.
Greater efficiency from designing to assembly and operation
Logic operations and preventive maintenance function
Plus infrared port on front panel
Innovating control panel and equipment usability
