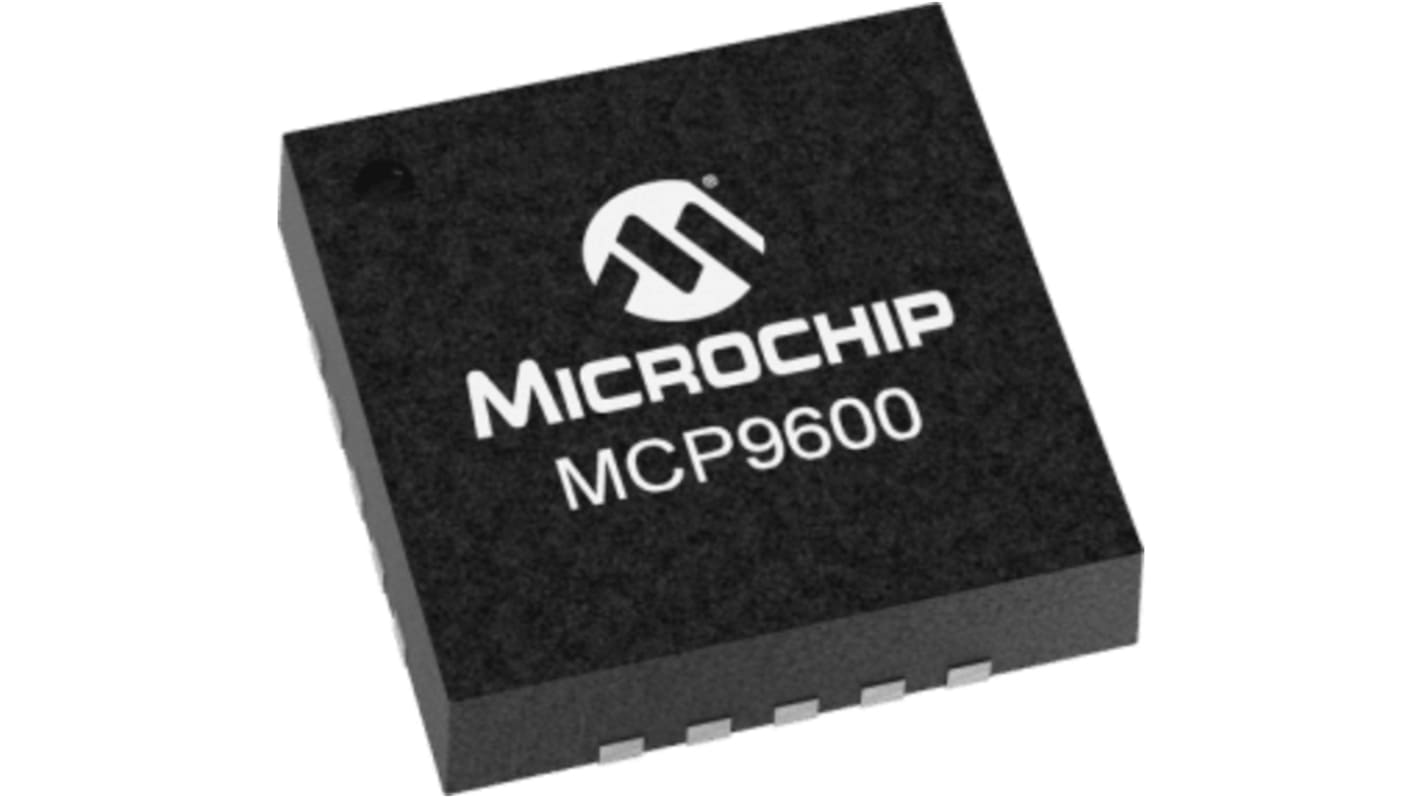

Microchip MCP9600 Series Temperature Converter, Push-Pull Output, Surface Mount, ±2°C, 20 Pins

RS庫存編號:: 171-7832
製造零件編號:: MCP9600-E/MX
製造商:: Microchip

Microchip MCP9600 Series Temperature Converter, Push-Pull Output, Surface Mount, ±2°C, 20 Pins

可享批量折扣

小計（1 包，共 2 件）*

HK$136.78

訂單超過 HK$250.00 免費送貨

有庫存

加上 10 件從 2025年12月22日起發貨
加上 136 件從 2025年12月29日起發貨

**需要更多嗎？**輸入您需要的數量，然後按一下「查看送貨日期」以查詢更多庫存和送貨詳細資訊。

單位	每單位	每包*
2 - 16	HK$68.39	HK$136.78
18 - 34	HK$66.885	HK$133.77
36 +	HK$65.44	HK$130.88

* 參考價格

RS庫存編號:: 171-7832
製造零件編號:: MCP9600-E/MX
製造商:: Microchip

規格

產品概覽和技術數據資料表

法例與合規

產品詳細資訊

透過選取一個或多個屬性來查找類似產品。

選取全部	屬性	值
	品牌	Microchip
	Sensor Function	Temperature
	Output Type	Push-Pull
	Accuracy	±2 °C, ±3°C
	Mounting Type	Surface Mount
	Pin Count	20
	Minimum Operating Temperature	-40 °C
	Operating Temperature Range	-40 to +125 °C
	Maximum Operating Temperature	+125 °C
	Minimum Operating Supply Voltage	2.7 V
	Maximum Operating Supply Voltage	5.5 V
	Package Type	MQFN
	Length	5mm
	Height	0.95mm
	Series	MCP9600
	Width	5mm
	Dimensions	5 x 5 x 0.95mm
	Resolution	18 bit

	選取全部
	品牌 Microchip
	Sensor Function Temperature
	Output Type Push-Pull
	Accuracy ±2 °C, ±3°C
	Mounting Type Surface Mount
	Pin Count 20
	Minimum Operating Temperature -40 °C
	Operating Temperature Range -40 to +125 °C
	Maximum Operating Temperature +125 °C
	Minimum Operating Supply Voltage 2.7 V
	Maximum Operating Supply Voltage 5.5 V
	Package Type MQFN
	Length 5mm
	Height 0.95mm
	Series MCP9600
	Width 5mm
	Dimensions 5 x 5 x 0.95mm
	Resolution 18 bit

1717760_DataSheet 1

The MCP9600 is a fully integrated thermocouple Electromotive Force (EMF) to degree Celsius converter, with integrated Cold-Junction compensation. The MCP9600 supports 8 thermocouple types (K, J, T, N, S, E, B and R). The MCP9600 provides user-programmable registers, adding design flexibility for various temperature sensing applications.

Thermocouple Voltage to °C Converter - Integrated Cold-Junction Compensation
Supported Types (designated by NIST ITS-90): - Type K, J, T, N, S, E, B and R
±1.5°C (Max.) Measurement Accuracy: - ±1.0°C (Max.) Cold-Junc., 0°C to +85°C
Temperature Measurement Resolution: - Hot and Cold-Junctions: 0.0625°C (typical)
Programmable Digital Filter for Temperature
Shutdown Current: 2 μA (typical)
Package: 20-lead MQFN
