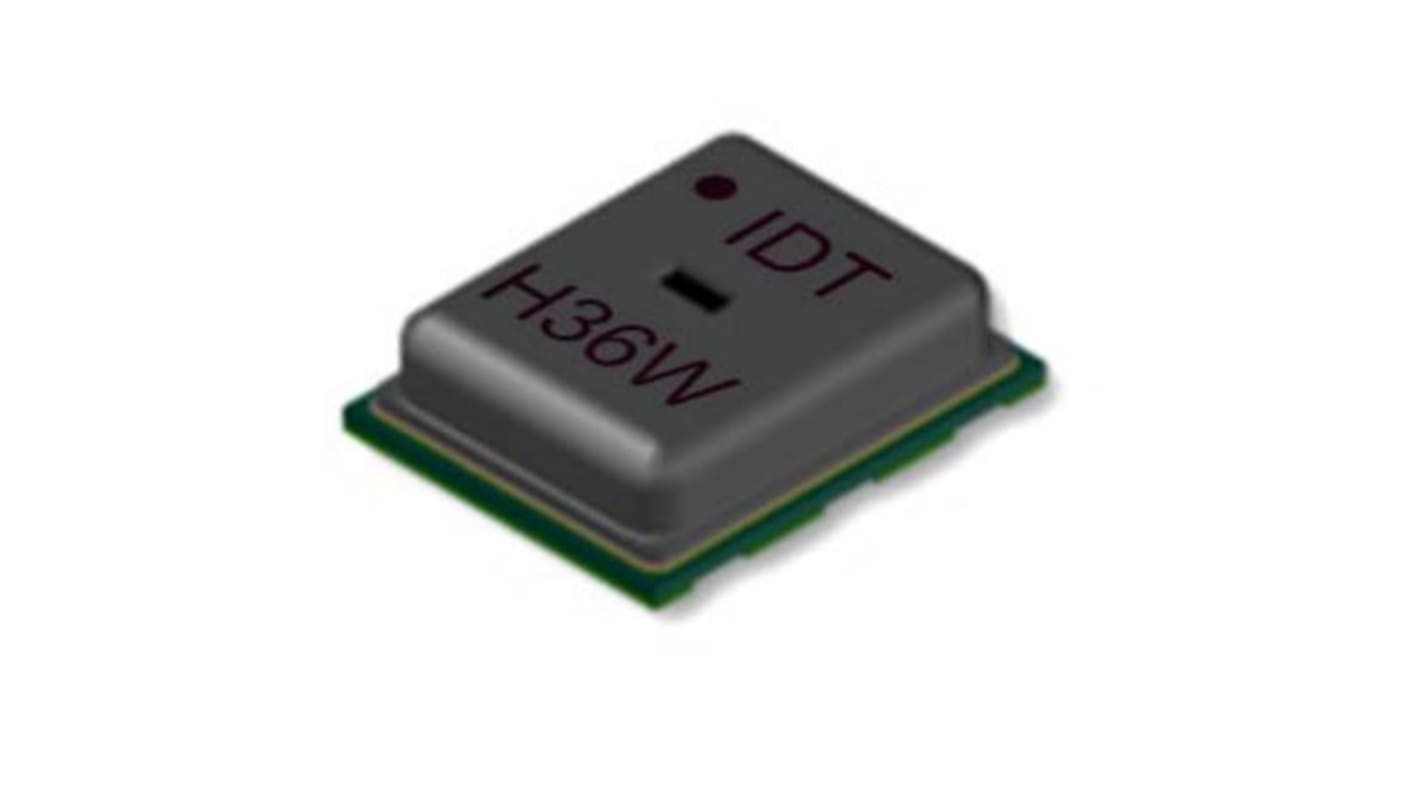

Renesas Electronics HS300x Series, Digital Output Temperature & Humidity Sensor, Surface Mount, I2C, ±1.5 %, 6-Pin LGA

此圖片僅供參考,請參閲產品詳細資訊及規格

享受批量購買折扣

額外添加26件可節省HK$14.30

查看批量定價選項

小計(1 包,共 2 件)*

HK$56.10

Add to Basket
選擇或輸入數量
最後的 RS 庫存
  • 最終 1,306 個,準備發貨

單位
每單位
每包*
節省
2 - 24HK$28.05HK$56.10-
26 - 48HK$27.50HK$55.00HK$14.30
50 +HK$26.80HK$53.60HK$62.50

* 參考價格

包裝方式:
RS庫存編號:
217-7946
製造零件編號:
HS3003
製造商:
Renesas Electronics
透過選取一個或多個屬性來查找類似產品。
選取全部

品牌

Renesas Electronics

Product Type

Temperature & Humidity Sensor

Output Type

Digital

Sub Type

Temperature & Humidity Sensor

Interface Type

I2C

Accuracy

±1.5 %

Mount Type

Surface

Pin Count

6

Maximum Operating Temperature

125°C

Minimum Operating Temperature

-40°C

Minimum Supply Voltage

2.3V

Maximum Supply Voltage

5.5V

RH Range

0 to 100 %

Package Type

LGA

Length

3mm

Width

900μm

Series

HS300x

Height

2.41mm

Standards/Approvals

No

Automotive Standard

No

The Renesas Electronics HS3003 is a highly-accurate, fully-calibrated relative humidity and temperature sensor. The high accuracy, fast measurement response time, and long-term stability, along with the small package size, makes the HS3003 ideal for a wide number of applications from portable to harsh environments. An integrated calibration and temperature compensation logic provides fully corrected RH and T values via a standard I²C output. The measured data is internally corrected and compensated for accurate operation over a wide range of temperature and humidity levels–user calibration is not required.

RH accuracy: ±2.8% RH typical

Fast RH response time (typical 6 seconds)

Temperature sensor accuracy: ±0.2°C typical (-10 to +80°C)

14-bit resolution: 0.01% RH (typical)

Low power consumption: 1.0μA average (one RH+T measurement per second, 8-bit resolution, 1.8V supply)

Extended supply voltage: 2.3V to 5.5V
