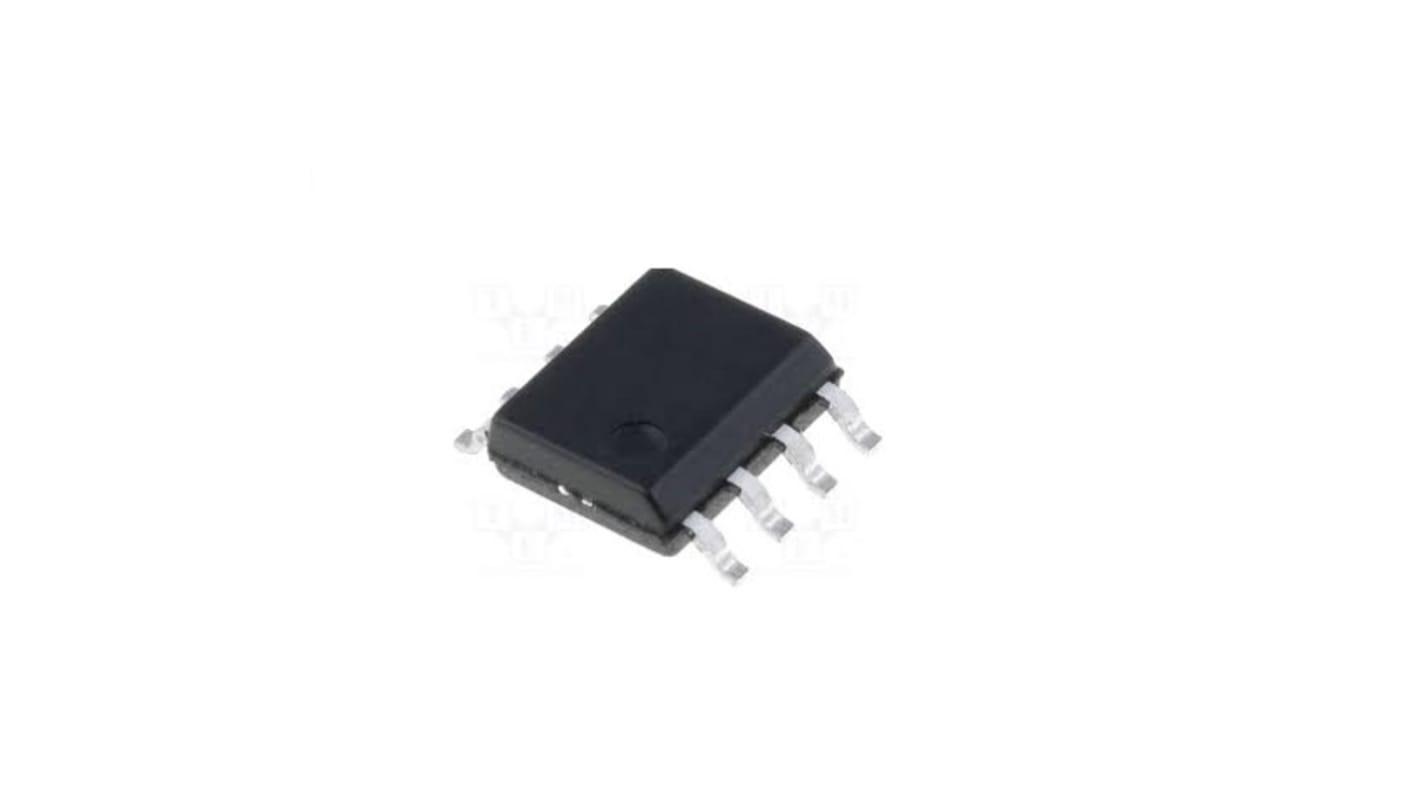

Name: Microchip Temperature and Humidity Sensor, Surface Mount, 2-Wire Serial, 0.5°C, 8 Pins
Brand: Microchip
SKU: 236-8959
Price: 12.82 HKD
Availability: LimitedAvailability

The Microchip TCN75 series serially programmable temperature sensor notifies the host controller when ambient temperature exceeds a user programmed set point. Hysteresis is also programmable. The INT/CMPTR output is programmable as either a simple comparator for thermostat operation or as a temperature event interrupt. Communication with the TCN75 is accomplished via a two-wire bus that is compatible with industry standard protocols. This permits reading the current temperature, programming the set point and hysteresis, and configuring the device.

Solid state temperature sensing 0.5°C accuracy typical
Operates from -55 °C to +125 °C
Operating supply range 2.7 V to 5.5 V
Programmable trip point and hysteresis with power-up defaults
Standard 2-Wire serial interface
Thermal event alarm output functions as interrupt or comparator/thermostat output
Up to 8 TCN75s may share the same bus
Shutdown mode for low standby power consumption
5V Tolerant I/O at VDD = 3V
Low power 250 micro A typical operating

單位	每單位	每包*
5 - 5	HK$12.82	HK$64.10
10 - 20	HK$12.56	HK$62.80
25 - 45	HK$12.32	HK$61.60
50 - 70	HK$12.08	HK$60.40
75 +	HK$11.82	HK$59.10

選取全部	屬性	值
	品牌	Microchip
	Sensor Function	Temperature
	Interface Type	2-Wire Serial
	Accuracy	0.5°C
	Mounting Type	Surface Mount
	Pin Count	8
	Operating Temperature Range	-55 → +155 °C
	Package Type	SOIC

	選取全部
	品牌 Microchip
	Sensor Function Temperature
	Interface Type 2-Wire Serial
	Accuracy 0.5°C
	Mounting Type Surface Mount
	Pin Count 8
	Operating Temperature Range -55 → +155 °C
	Package Type SOIC

Microchip Temperature and Humidity Sensor, Surface Mount, 2-Wire Serial, 0.5°C, 8 Pins
