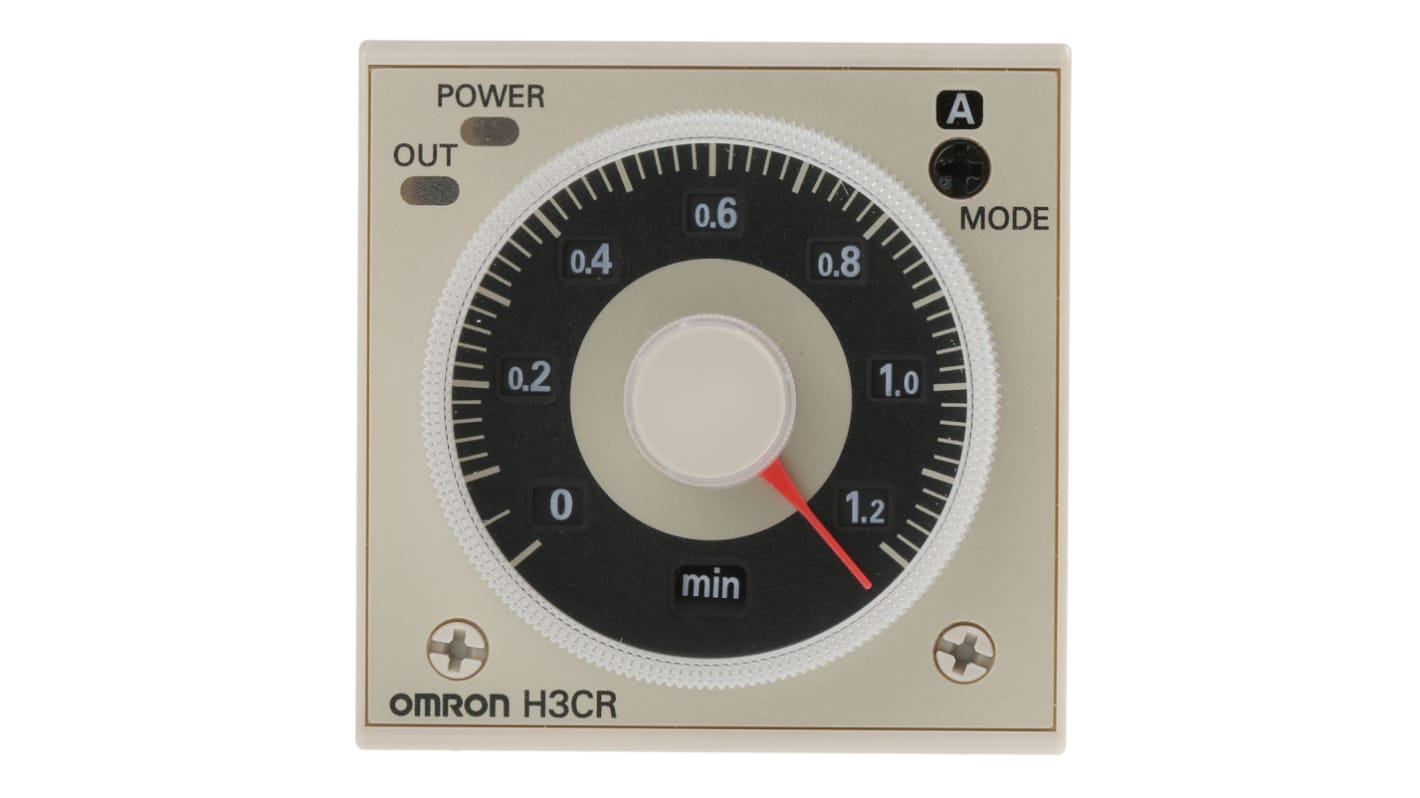

Omron DIN Rail, Panel Mount Multi Function Timer Relay, 100 → 125 V dc, 100 → 240V ac, DPDT, 0.05 s
- RS庫存編號:
- 328-358
- 製造零件編號:
- H3CR-A8 AC100-240/DC100-125
- 製造商:
- Omron
查看所有Timer Relays
- RS庫存編號:
- 328-358
- 製造零件編號:
- H3CR-A8 AC100-240/DC100-125
- 製造商:
- Omron
- COO (Country of Origin):
- ID
產品概覽和技術數據資料表
法例與合規
- COO (Country of Origin):
- ID
產品詳細資訊
Solid State Multifunction Timer H3CR-A8 Series
A 1/16 DIN solid state multi-function timer
Functions 111, 411, 421, 611
Nine timing ranges from 0.005s to 300h
Power indicator, output indicator, operating mode display
Relay output rated 250Vac 5A
Conforms to EN61812-1 (VDE0435/P2021) and EN60664-1 (VDE0110) 4kV/2
Nine timing ranges from 0.005s to 300h
Power indicator, output indicator, operating mode display
Relay output rated 250Vac 5A
Conforms to EN61812-1 (VDE0435/P2021) and EN60664-1 (VDE0110) 4kV/2
Approvals
UL, CSA, Lloyds, NK

Omron Multi-function Timer Relay
The Omron H3CR series multi-function timer relay is solid-state, compact equipment with high precision and a wide range of programming features. It performs different delay functions like flicker off start, flicker on start, interval, ON delay, signal OFF delay and signal on/OFF delay ranging between 0.05 seconds to 300 hours. This timer has intuitive programming, which makes it easy to use and quick to configure. It is affordable. Its high performance makes it ideal for a wide range of applications in process control environments.
Features and Benefits
Wide power supply range reduces the number of timer models required
The supply voltage ranges is 100VAC to 240VAC and 100VDC to 125VDC
2 changeover relay output contacts of 5A
Ecological design with reduced power consumption
8-pin terminal model
Enables easy sequence checks through instantaneous outputs for a zero set value at any time range
When panel-mount with a socket, length is 80mm or less
Time setting rings enables consistent settings and limit the setting range
DPDT contact configuration
Panel covers enables various panel designs
LED indication of power and contact status
The supply voltage ranges is 100VAC to 240VAC and 100VDC to 125VDC
2 changeover relay output contacts of 5A
Ecological design with reduced power consumption
8-pin terminal model
Enables easy sequence checks through instantaneous outputs for a zero set value at any time range
When panel-mount with a socket, length is 80mm or less
Time setting rings enables consistent settings and limit the setting range
DPDT contact configuration
Panel covers enables various panel designs
LED indication of power and contact status
Applications
Textiles
Chemical industry
Mining
Irrigation
Raw material handling
Food and beverages
Industrial process control
Chemical industry
Mining
Irrigation
Raw material handling
Food and beverages
Industrial process control
Certifications
UL approved
CSA certified
Lloyds/NK approval
EN61812-1 certified
IEC60664-1 certified
CSA certified
Lloyds/NK approval
EN61812-1 certified
IEC60664-1 certified
規格
Attribute | Value |
Supply Voltage | 100 → 125 V dc, 100 → 240V ac |
Mounting Type | DIN Rail, Panel Mount |
Number of Contacts | 2 |
Time Range | 0.05 s → 300h |
Mode of Operation | Flicker ON Start, Interval, ON Delay, One Shot |
Number of Timer Functions | Multi Function |
Contact Configuration | DPDT |
Time Increment | Hours, Seconds |
Maximum Voltage | 125 V dc, 250V ac |
Series | H3CR |
Maximum Current | 5A |
Power Supply | External |
Terminal Type | 8-Pin Connector |
Depth | 81.6mm |
Length | 48mm |
Width | 48mm |
Switch Configuration | DPDT |
Maximum Operating Temperature | +55°C |
Minimum Operating Temperature | -10°C |
Time Delay | 0.05s |
