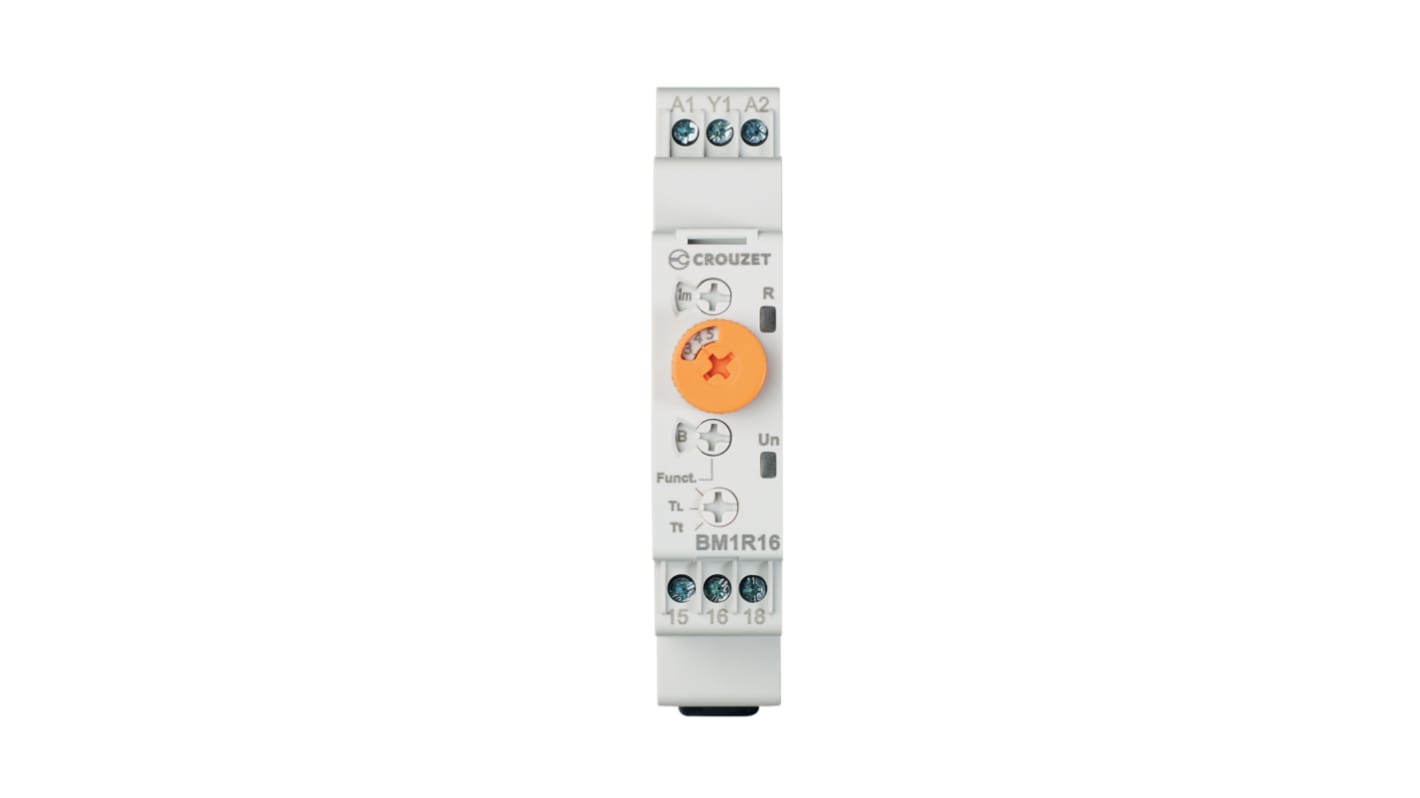

Crouzet Syr-Line Series DIN Rail Mount Timer Relay, 12 → 240V ac/dc, 1-Contact, 0.5 s → 10days, SPDT
- RS庫存編號:
- 136-3218
- 製造零件編號:
- BM1R16MV1
- 製造商:
- Crouzet
- RS庫存編號:
- 136-3218
- 製造零件編號:
- BM1R16MV1
- 製造商:
- Crouzet
產品概覽和技術數據資料表
法例與合規
- COO (Country of Origin):
- CN
產品詳細資訊
Syrline Series Multi function Timers
The specialised Syrline range of high power timers are designed to satisfy unique requirements across various applications. The timers are compact in design to fit all modular panels.
Features and Benefits
Slim 17.5 mm modular design
Multi-voltage 12-240 V ac/dc
Possibility of external load connection in parallel to the control input
3-wire PNP sensor compatible
Small screw knobs for right tuning
Large knobs allow setting of right configuration
2 LED indicators
Standard DIN Rail mounting
Multi-voltage 12-240 V ac/dc
Possibility of external load connection in parallel to the control input
3-wire PNP sensor compatible
Small screw knobs for right tuning
Large knobs allow setting of right configuration
2 LED indicators
Standard DIN Rail mounting
規格
Attribute | Value |
|---|---|
| Supply Voltage | 12 → 240V ac/dc |
| Mounting Type | DIN Rail |
| Mode of Operation | Multifunction |
| Time Range | 0.5 s → 10days |
| Number of Contacts | 1 |
| Number of Timer Functions | Multi Function |
| Contact Configuration | SPDT |
| Time Increment | Hours, Minutes, Seconds |
| Maximum Current | (25 °C) 16 A, (60 °C) 8A |
| Maximum Voltage | 240V ac/dc |
| Switch Configuration | SPDT |
| Terminal Type | Screw |
| Width | 17.50mm |
| Minimum Voltage | 12 V dc, 12V ac |
| Power Supply | External |
| Length | 90mm |
| Depth | 60mm |
| Series | Syr-Line |
| Maximum Operating Temperature | +60°C |
| Minimum Operating Temperature | -20°C |
| Time Delay | 0.5s |
