製造零件編號

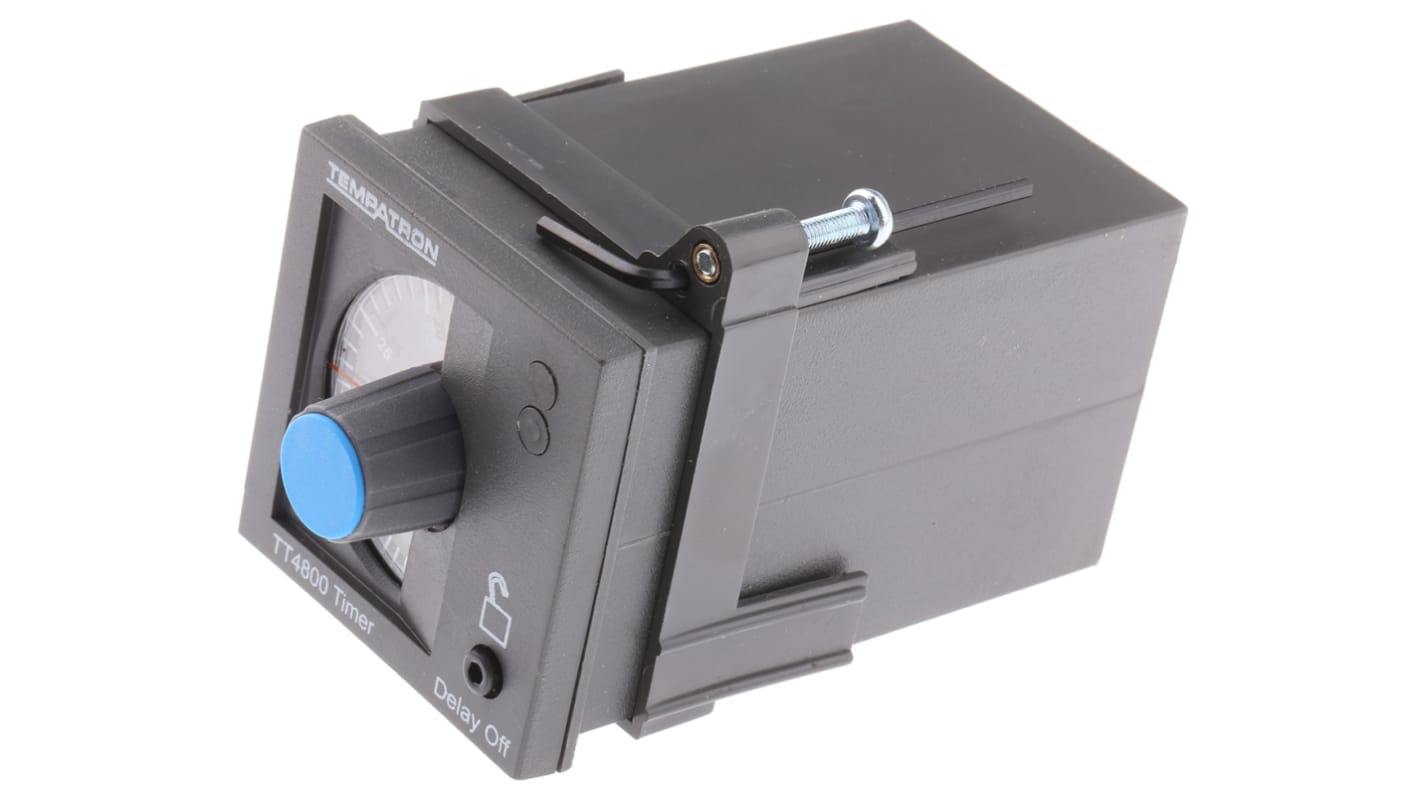

Tempatron DIN Rail, Panel Mount Timer Relay, 230V ac, 2-Contact, 3 s → 30min, 1-Function, DPDT

RS庫存編號:: 217-1390
製造零件編號:: TT4802-11
製造商:: Tempatron

Tempatron DIN Rail, Panel Mount Timer Relay, 230V ac, 2-Contact, 3 s → 30min, 1-Function, DPDT

不可供應

RS 不再對此產品進貨。

替代產品

該產品我們目前不提供。這是我們推薦的替代產品。

Omron H3CR Series DIN Rail, Panel Mount Timer Relay, 200 → 240V ac, 2-Contact, 0.05 → 12min, 1-Function,

RS庫存編號: 188-4629

Each

HK$938.20

RS庫存編號:: 217-1390
製造零件編號:: TT4802-11
製造商:: Tempatron

規格

產品概覽和技術數據資料表

法例與合規

產品詳細資訊

透過選取一個或多個屬性來查找類似產品。

選取全部	屬性	值
	品牌	Tempatron
	Supply Voltage	230V ac
	Mounting Type	DIN Rail, Panel Mount
	Mode of Operation	True OFF Delay Deenergise
	Time Range	3 s → 30min
	Number of Contacts	2
	Number of Timer Functions	Single
	Contact Configuration	DPDT
	Time Increment	Minutes, Seconds
	Maximum Current	5A
	Maximum Voltage	30 V dc, 230V ac
	Switch Configuration	DPDT
	Terminal Type	11-Pin Connector
	Width	48mm
	Power Supply	External
	Maximum Operating Temperature	+60°C
	Length	48mm
	Depth	106mm
	Time Delay	(Reset) 100ms
	Minimum Operating Temperature	-10°C

	選取全部
	品牌 Tempatron
	Supply Voltage 230V ac
	Mounting Type DIN Rail, Panel Mount
	Mode of Operation True OFF Delay Deenergise
	Time Range 3 s → 30min
	Number of Contacts 2
	Number of Timer Functions Single
	Contact Configuration DPDT
	Time Increment Minutes, Seconds
	Maximum Current 5A
	Maximum Voltage 30 V dc, 230V ac
	Switch Configuration DPDT
	Terminal Type 11-Pin Connector
	Width 48mm
	Power Supply External
	Maximum Operating Temperature +60°C
	Length 48mm
	Depth 106mm
	Time Delay (Reset) 100ms
	Minimum Operating Temperature -10°C

COO (Country of Origin):: GB

11 Pin Timer

Function 311
Time range selectable by screwdriver from a rotary switch on the side of the module
Lockable dial to prevent tampering
45 x 45mm panel cut-out
Contact material AgCdO

Approvals

CE, EN 50081-1, EN 50082-1, EN 61010-1

True Off Delay
