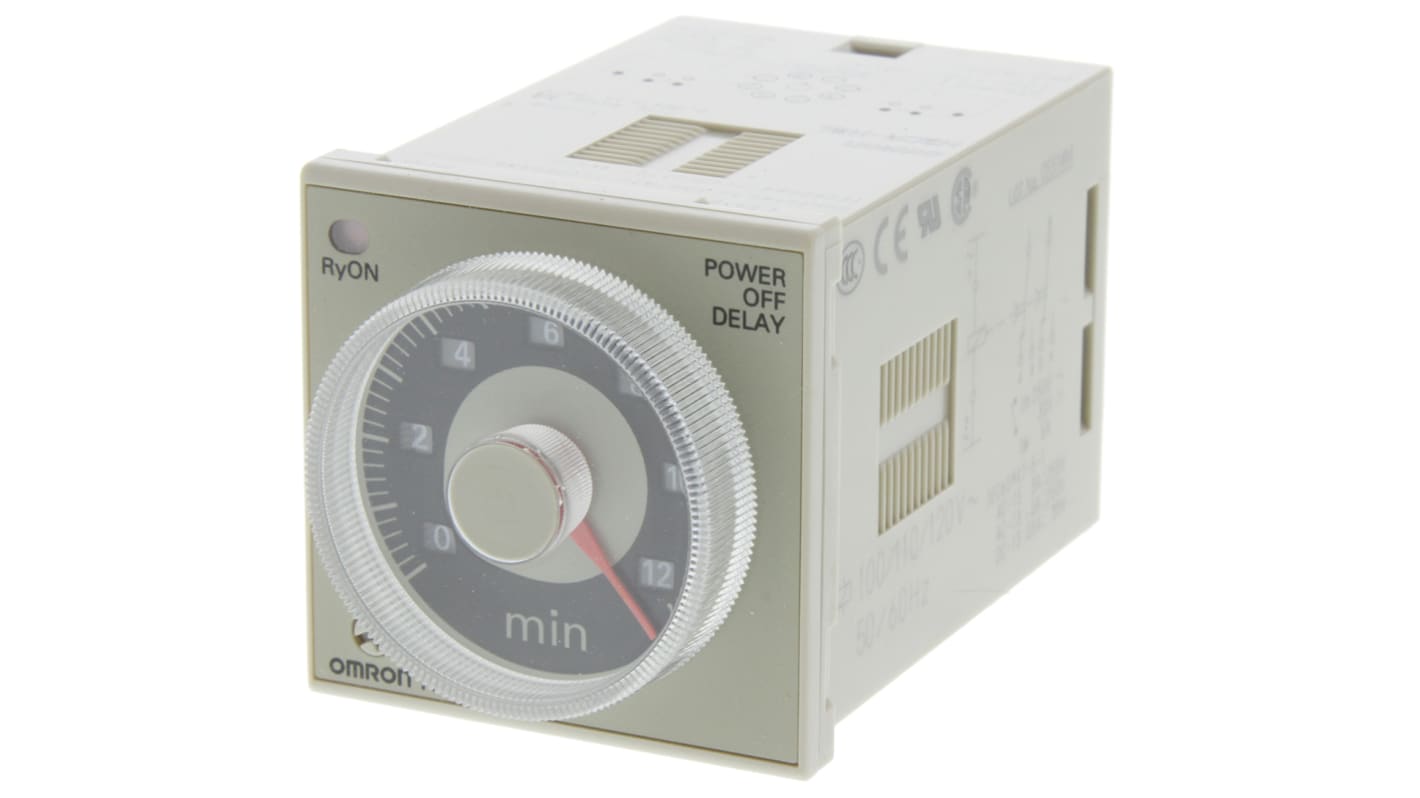

Omron H3CR Series DIN Rail, Panel Mount Timer Relay, 100 → 120V ac, 2-Contact, 0.05 → 12min, 1-Function

RS庫存編號:: 349-1279
製造零件編號:: H3CR-H8L AC100-120 M
製造商:: Omron

Omron H3CR Series DIN Rail, Panel Mount Timer Relay, 100 → 120V ac, 2-Contact, 0.05 → 12min, 1-Function

不可供應

RS 不再對此產品進貨。

替代產品

該產品我們目前不提供。這是我們推薦的替代產品。

Omron Plug In Timer Relay, 100-120V ac, 2-Contact, 0.05-12min, DPDT

RS庫存編號: 264-1630

Each

HK$988.70

RS庫存編號:: 349-1279
製造零件編號:: H3CR-H8L AC100-120 M
製造商:: Omron

規格

產品概覽和技術數據資料表

法例與合規

產品詳細資訊

透過選取一個或多個屬性來查找類似產品。

選取全部	屬性	值
	品牌	Omron
	Supply Voltage	100 → 120V ac
	Mounting Type	DIN Rail, Panel Mount
	Mode of Operation	OFF Delay
	Time Range	0.05 → 12min
	Number of Contacts	2
	Number of Timer Functions	Single
	Time Increment	Minutes, Seconds
	Maximum Current	5A
	Maximum Voltage	30 V dc, 250V ac
	Terminal Type	8-Pin Connector
	Switch Configuration	DPDT
	Width	48mm
	Power Supply	External
	Series	H3CR
	Maximum Operating Temperature	+55°C
	Length	48mm
	Depth	93mm
	Minimum Operating Temperature	-10°C

	選取全部
	品牌 Omron
	Supply Voltage 100 → 120V ac
	Mounting Type DIN Rail, Panel Mount
	Mode of Operation OFF Delay
	Time Range 0.05 → 12min
	Number of Contacts 2
	Number of Timer Functions Single
	Time Increment Minutes, Seconds
	Maximum Current 5A
	Maximum Voltage 30 V dc, 250V ac
	Terminal Type 8-Pin Connector
	Switch Configuration DPDT
	Width 48mm
	Power Supply External
	Series H3CR
	Maximum Operating Temperature +55°C
	Length 48mm
	Depth 93mm
	Minimum Operating Temperature -10°C

登入下載 CAD 模型

Omron H3CR Series Timer Relay, 100 to 120V AC Supply Voltage, 0.05 to 12 min Time Range - H3CR-H8L AC100-120 M

This timer relay is a robust solution designed for automation applications, offering precise control in various electrical environments. With a compact DIN rail format measuring 48mm x 93mm, the timer ensures efficient space utilisation while providing reliable performance. It operates on a supply voltage range of 100 to 120 V AC, ideal for numerous industrial applications requiring timed functions.

Features & Benefits

• OFF delay mode for flexible timing control
• DPDT relay configuration for versatile switching options
• Compact design suitable for DIN rail or panel mounting
• Simple installation with an 8-pin connector for quick setup

Applications

• Ideal for controlling machinery timing processes
• Used in HVAC systems for delayed fan shutdown
• Applicable in manufacturing setups for sequence timing
• Utilised in automation for device activation timing

How does the adjustable time range enhance operational flexibility?

The adjustable time range allows users to fine-tune the timing from 0.05 to 12 minutes to suit specific operational requirements. This flexibility is especially beneficial for settings where precise control of electrical devices is crucial.

What type of relay configuration does it use, and how does this benefit usage?

The DPDT relay configuration allows for two separate circuits to be controlled, providing versatility. This dual functionality supports applications requiring multiple timed actions, streamlining operations efficiently.

Can this timer relay handle high ambient temperatures?

Yes, it operates effectively between -10°C to +55°C, making it suitable for environments with fluctuating temperatures. Its durability in extreme conditions ensures uninterrupted operation during critical tasks.

True Off Delay
