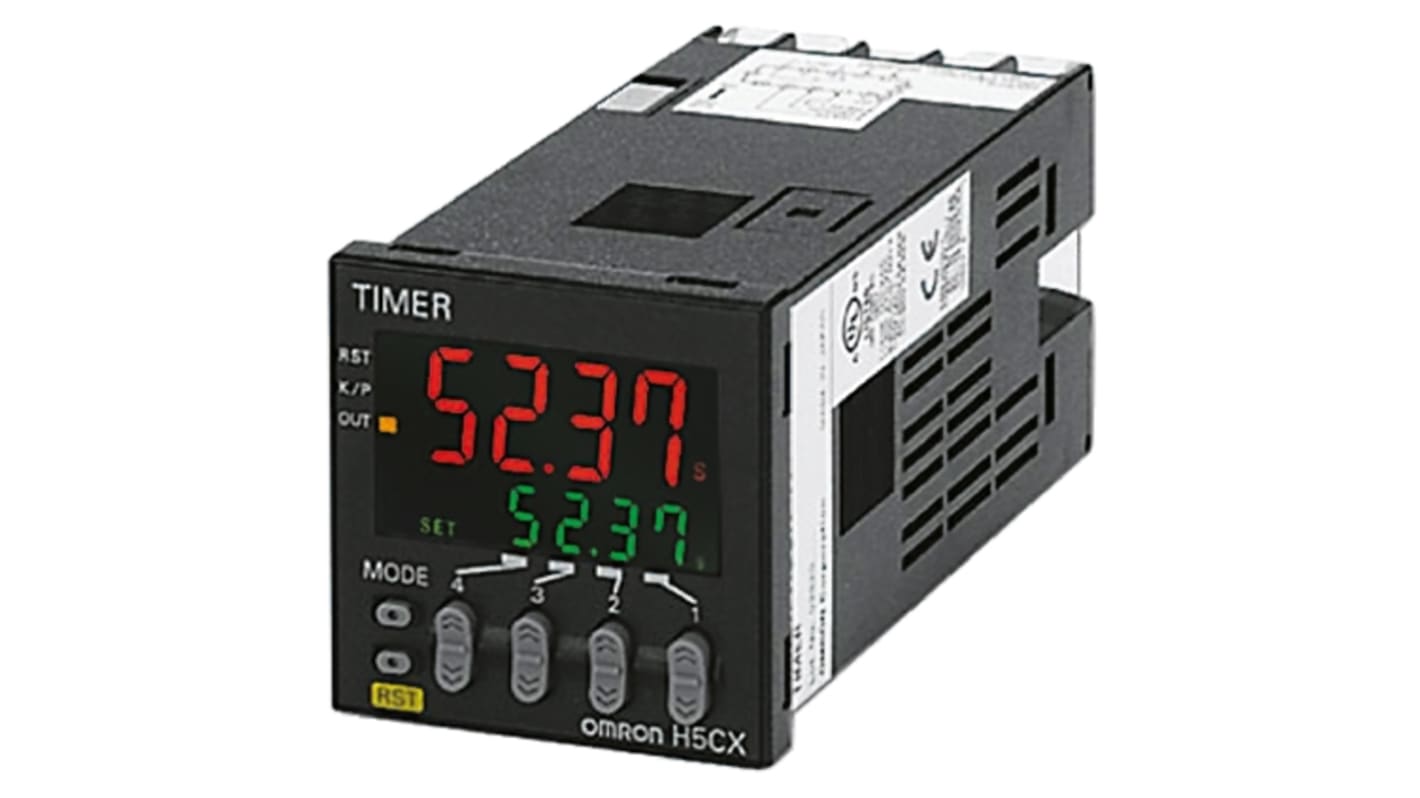

Omron H5CX Series DIN Rail, Panel Mount, Surface Mount Timer Relay, 100 → 240V ac, 2-Contact, 0.001 s →
- RS庫存編號:
- 746-3934
- 製造零件編號:
- H5CX-L8E-N
- 製造商:
- Omron
此圖片僅供參考，請參閲產品詳細資訊及規格
不可供應
RS 不再對此產品進貨。
替代產品
該產品我們目前不提供。 這是我們推薦的替代產品。
- RS庫存編號:
- 746-3934
- 製造零件編號:
- H5CX-L8E-N
- 製造商:
- Omron
規格
產品概覽和技術數據資料表
法例與合規
產品詳細資訊
透過選取一個或多個屬性來查找類似產品。
選取全部 | 屬性 | 值 |
|---|---|---|
| 品牌 | Omron | |
| Supply Voltage | 100 → 240V ac | |
| Mounting Type | DIN Rail, Panel Mount, Surface Mount | |
| Mode of Operation | Flicker OFF, Flicker ON | |
| Time Range | 0.001 s → 9999h | |
| Number of Contacts | 2 | |
| Number of Timer Functions | Multi Function | |
| Time Increment | Hours, Seconds | |
| Maximum Current | 5A | |
| Maximum Voltage | 30 V dc, 250V ac | |
| Terminal Type | 8-Pin Connector | |
| Switch Configuration | 2 x SPDT | |
| Power Supply | External | |
| Minimum Voltage | 5V dc | |
| Width | 48mm | |
| Length | 48mm | |
| Maximum Operating Temperature | +55°C | |
| Series | H5CX | |
| Depth | 83.9mm | |
| Minimum Current | 10mA | |
| Minimum Operating Temperature | -10°C | |
| 選取全部 | ||
|---|---|---|
品牌 Omron | ||
Supply Voltage 100 → 240V ac | ||
Mounting Type DIN Rail, Panel Mount, Surface Mount | ||
Mode of Operation Flicker OFF, Flicker ON | ||
Time Range 0.001 s → 9999h | ||
Number of Contacts 2 | ||
Number of Timer Functions Multi Function | ||
Time Increment Hours, Seconds | ||
Maximum Current 5A | ||
Maximum Voltage 30 V dc, 250V ac | ||
Terminal Type 8-Pin Connector | ||
Switch Configuration 2 x SPDT | ||
Power Supply External | ||
Minimum Voltage 5V dc | ||
Width 48mm | ||
Length 48mm | ||
Maximum Operating Temperature +55°C | ||
Series H5CX | ||
Depth 83.9mm | ||
Minimum Current 10mA | ||
Minimum Operating Temperature -10°C | ||
- COO (Country of Origin):
- ID
2 Colour LCD, H5CX Series
Functions - 131,132,141,143,211,453,612, plus Omron codes: A3, B1, Z
4 digit, 2 colour display
4 digit, 2 colour display
Note
Note: stock numbers
Approvals
UL, CSA
