RS PRO 230 V ac 2 x 25 V ac Toroidal Transformer 2 Output 500 VA, UL506, EN60065 Class II, EN615581 Class II, UL51
- RS庫存編號:
- 123-4031
- 製造商:
- RS PRO
可享批量折扣
小計（1 件）*
HK$1,399.20
訂單超過 HK$250.00 免費送貨
有庫存
- 27 件準備從其他地點送貨
**需要更多嗎？**輸入您需要的數量，然後按一下「查看送貨日期」以查詢更多庫存和送貨詳細資訊。
單位 | 每單位 |
|---|---|
| 1 - 4 | HK$1,399.20 |
| 5 + | HK$1,151.50 |
* 參考價格
- RS庫存編號:
- 123-4031
- 製造商:
- RS PRO
規格
產品概覽和技術數據資料表
法例與合規
產品詳細資訊
透過選取一個或多個屬性來查找類似產品。
選取全部 | 屬性 | 值 |
|---|---|---|
| 品牌 | RS PRO | |
| Product Type | Toroidal Transformer | |
| Primary Voltage | 230 V ac | |
| Secondary Voltage | 2 x 25 V ac | |
| Weight | 0.3kg | |
| Power | 500VA | |
| Minimum Operating Frequency | 50Hz | |
| Winding Type | Single Primary, Dual Secondary | |
| Maximum Operating Frequency | 60Hz | |
| Maximum Operating Temperature | 180°C | |
| Mount Type | Surface | |
| Height | 65mm | |
| Termination Type | Wire | |
| Standards/Approvals | UL506, EN60065 Class II, EN615581 Class II, UL51 | |
| 選取全部 | ||
|---|---|---|
品牌 RS PRO | ||
Product Type Toroidal Transformer | ||
Primary Voltage 230 V ac | ||
Secondary Voltage 2 x 25 V ac | ||
Weight 0.3kg | ||
Power 500VA | ||
Minimum Operating Frequency 50Hz | ||
Winding Type Single Primary, Dual Secondary | ||
Maximum Operating Frequency 60Hz | ||
Maximum Operating Temperature 180°C | ||
Mount Type Surface | ||
Height 65mm | ||
Termination Type Wire | ||
Standards/Approvals UL506, EN60065 Class II, EN615581 Class II, UL51 | ||

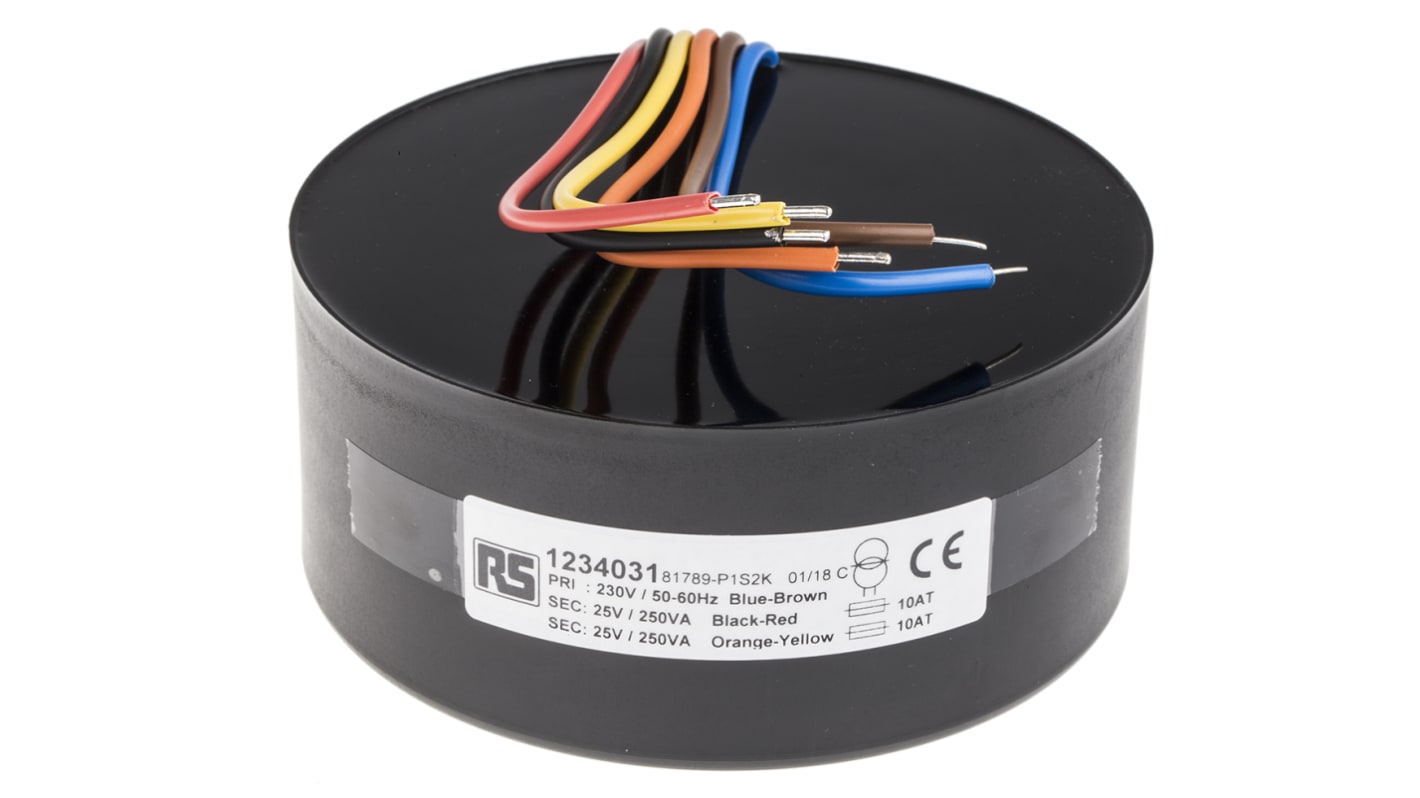

RS PRO 230 V AC, 2 x 25 V AC Toroidal Transformer, 500 VA 2 Output
This toroidal transformer from RS PRO is used for stepping power up or down in control circuits. It has a primary voltage rating of 230 V AC and a secondary voltage rating of 2 x 25 V AC, so you can charge two devices at the same time.
You can connect the twin secondary windings in series or in parallel to create a variety of circuit configurations. It's compact and light too, making it easy to install in a wide range of locations. It's terminated with double-insulated lead wires to protect against electric shock.
The transformer is housed in a nylon 6.6 casing that meets the UL94-V0 safety standard for low flammability. Toroidal transformers such as this one are useful for medical equipment, where their low current leakage and noiseless operation reduces interference with nearby devices.
Features and Benefits
• Surface mounting
• Double output
• Operating frequency of 50 to 60 Hz
• Diameter of 148 mm
• Height of 65 mm
• Weight of 3.5 kg
• Power rating of 500 VA
