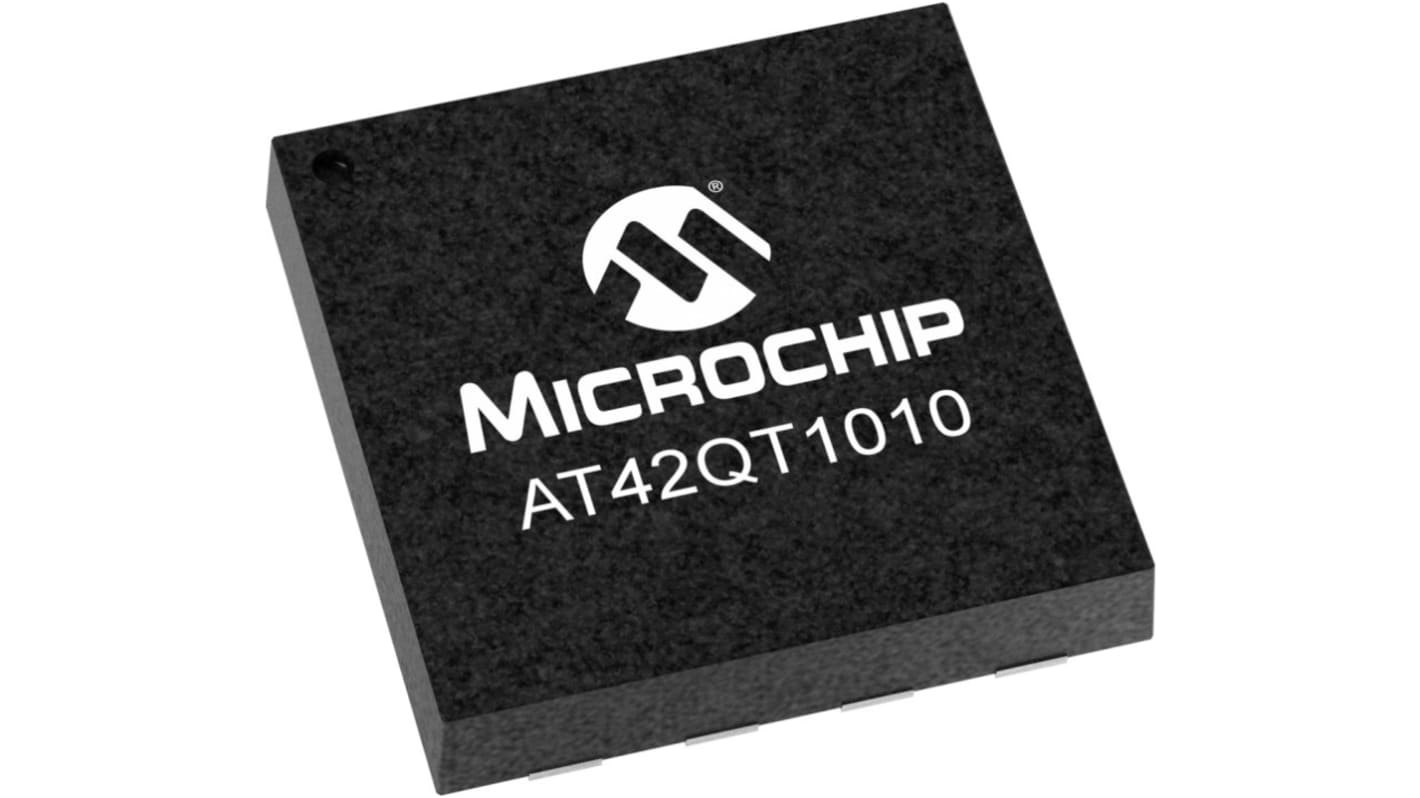

Microchip AT42QT1010-MAHR Capacitive Touch Controller IC, 14 bit Digital Output Touch Screen Controller, 8-Pin UDFN
- RS庫存編號:
- 177-3364P
- 製造零件編號:
- AT42QT1010-MAHR
- 製造商:
- Microchip
此圖片僅供參考，請參閲產品詳細資訊及規格
可享批量折扣
查看批量定價選項小計（760 件, 以卷裝提供）*
HK$7,673.72
訂單超過 HK$250.00 免費送貨
有庫存
- 2,600 件準備從其他地點送貨
**需要更多嗎？**輸入您需要的數量，然後按一下「查看送貨日期」以查詢更多庫存和送貨詳細資訊。
單位 | 每單位 |
|---|---|
| 760 - 1480 | HK$10.097 |
| 1500 + | HK$9.881 |
* 參考價格
- RS庫存編號:
- 177-3364P
- 製造零件編號:
- AT42QT1010-MAHR
- 製造商:
- Microchip
規格
產品概覽和技術數據資料表
法例與合規
產品詳細資訊
透過選取一個或多個屬性來查找類似產品。
選取全部 | 屬性 | 值 |
|---|---|---|
| 品牌 | Microchip | |
| Product Type | Touch Controller IC | |
| Resolution | 14 bit | |
| Sub Type | Touch Screen Controller | |
| Interface Type | Digital Output | |
| Sensing Technology | Capacitive | |
| Mount Type | Surface | |
| Input Type | 1 Key | |
| Package Type | UDFN | |
| Pin Count | 8 | |
| Minimum Supply Voltage | 1.8V | |
| Maximum Supply Voltage | 5.5V | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 85°C | |
| Height | 0.55mm | |
| Length | 2.05mm | |
| Standards/Approvals | No | |
| Width | 2mm | |
| Series | AT42QT1010 | |
| Automotive Standard | No | |
| Supply Current | 17μA | |
| 選取全部 | ||
|---|---|---|
品牌 Microchip | ||
Product Type Touch Controller IC | ||
Resolution 14 bit | ||
Sub Type Touch Screen Controller | ||
Interface Type Digital Output | ||
Sensing Technology Capacitive | ||
Mount Type Surface | ||
Input Type 1 Key | ||
Package Type UDFN | ||
Pin Count 8 | ||
Minimum Supply Voltage 1.8V | ||
Maximum Supply Voltage 5.5V | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 85°C | ||
Height 0.55mm | ||
Length 2.05mm | ||
Standards/Approvals No | ||
Width 2mm | ||
Series AT42QT1010 | ||
Automotive Standard No | ||
Supply Current 17μA | ||
The AT42QT101x Single Key capacitive touch controller family provides an easy way to add a touch key to any application. It implements advanced filtering algorithm to offer robust operation in noisy environment. Sensitivity and low power modes can be configured as well.
The AT42QT1010 has "maximum on" touch duration of ∼ 60s.
Keys: One – configurable as either a single key or a proximity sensor
Key outline sizes: 6 mm x 6 mm or larger (panel thickness dependent), widely different sizes and shapes possible
Electrode design: Solid or ring electrode shapes
PCB Layers required: One
Electrode materials: Etched copper, silver, carbon, Indium Tin Oxide (ITO)
Panel thickness: Up to 12 mm glass, 6 mm plastic (electrode size and Cs dependent)
Key sensitivity: Settable via capacitor (Cs)
Power consumption: 17 μA at 1.8 V typical
Applications: Control panels, consumer appliances, IoT, proximity sensor applications, toys, lighting controls, mechanical switch or button replacement
