6010C SL005 | Alpha Wire Alpha Essentials Communication & Control Series Data Cable, 3 Pairs, 6 Cores, 0.35 mm², Screened, 22 AWG, | RS

Alpha Wire Alpha Essentials Communication & Control Series Data Cable, 3 Pairs, 6 Cores, 0.35 mm², Screened, 22 AWG,

RS庫存編號:: 111-9234
Distrelec 貨號:: 301-34-057
製造零件編號:: 6010C SL005
製造商:: Alpha Wire

Alpha Wire Alpha Essentials Communication & Control Series Data Cable, 3 Pairs, 6 Cores, 0.35 mm², Screened, 22 AWG,

可享批量折扣

Price 毎卷：30 米**

HK$1,419.90

46 現貨庫存，可於3工作日發貨。*

* 交貨日期可能會根據您選擇的數量和交貨地址而變更。

訂單金額滿 HK$250.00 即可享受免費送貨服務

即時庫存查詢

卷	每卷	每米**
1 - 14	HK$1,419.90	HK$47.33
15 +	HK$1,348.90	HK$44.963

** 參考價格

RS庫存編號:: 111-9234
Distrelec 貨號:: 301-34-057
製造零件編號:: 6010C SL005
製造商:: Alpha Wire

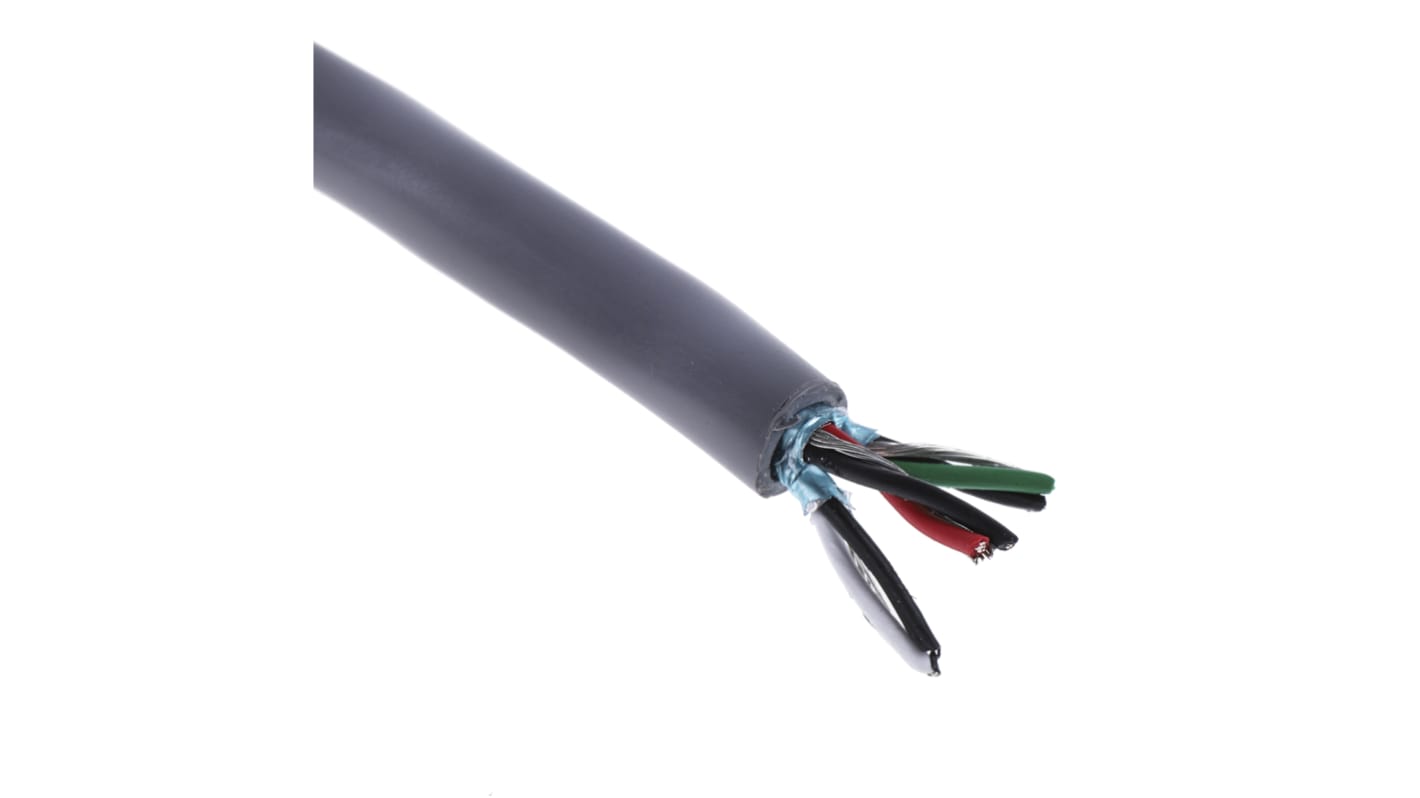

Individually Shielded Multi-pair Cable

The Alpha Wire individually shielded multi-pair communication and control cable is a UL recognised component that has been designed to meet the special requirements of high-speed data transmission systems associated with data processing or information systems.

The cable comprises stranded tinned copper conductor covered in a foil shield and slate-coloured PVC. The component also includes drain wire.

Features and benefits

Individually shielded pairs offer both crosstalk protection and moderate EMI performance

Stranded tinned copper conductors that improve flexibility

PVC insulation provides good resistance to abrasion, chemicals, and water

Flame Retardant to rating FT4

Applications

Audio systems: speakers, microphones, intercoms

Broadcast and studio

Data transmission: RS-232, 422, 485

CAD/CAM

Computer peripherals

Business machines

Security systems: alarms, cameras, sensors

Control systems

Instrumentation systems

Point-of-sale systems

Banking systems

Warning

These cables are not to be regarded as power cables or cables for the direct conection of the equipment to mains power supplies.

Approvals

UL recognised component

Belden Alpha Wire Data Cable, PVC Insulation, 300V Voltage Rating - 6010C SL005

Speedily transfer data between your peripheral devices with this data cable from Belden's Alpha Wire range. As it has three twisted-pair cores, it can transmit multiple signals simultaneously and cut down your wiring needs. The outer sheath is made from durable PVC to stand up to impact and abrasion, so you're assured of its long-lasting use. This material also serves as an insulator to protect you from electric shocks during installation or maintenance.

Features & Benefits

• Integrated drain wire prevents RFI and EMI interference for clear signal transmission
• Voltage rating of 300V for use in low-voltage applications
• Cable length of 30m provides a sufficient supply for multiple jobs

Applications

• Data centres
• Food and beverage production
• Automotive industry

How flexible is this data cable?

It has a minimum bending radius of 10 times its outer diameter, making it a flexible choice for use in setups where space is tight.

Approvals

UL 2493

透過選取一個或多個屬性來查找類似產品。

選取全部	屬性	值
	品牌	Alpha Wire
	Number of Pairs	3
	Cross Sectional Area	0.35 mm²
	Number of Cores	6
	American Wire Gauge	22 AWG
	Screened/Unscreened	Screened
	Length	30m
	Shield Type	F/UTP
	Sheath Colour	Grey
	Cable Type	Control
	Outer Diameter	7.57mm
	Outer Sheath Material	PVC
	Cable Shape	Twisted Pair
	Characteristic Impedance	55 Ω
	Shielded/Unshielded	Shielded
	Core Strands	7/0.25 mm
	Voltage Rating	300 V
	Maximum Operating Temperature	+75°C
	Series	Alpha Essentials Communication & Control
	Fire Behaviour	Flame Retardant
	Standards Met	CE
	Minimum Operating Temperature	-20°C

	選取全部
	品牌 Alpha Wire
	Number of Pairs 3
	Cross Sectional Area 0.35 mm²
	Number of Cores 6
	American Wire Gauge 22 AWG
	Screened/Unscreened Screened
	Length 30m
	Shield Type F/UTP
	Sheath Colour Grey
	Cable Type Control
	Outer Diameter 7.57mm
	Outer Sheath Material PVC
	Cable Shape Twisted Pair
	Characteristic Impedance 55 Ω
	Shielded/Unshielded Shielded
	Core Strands 7/0.25 mm
	Voltage Rating 300 V
	Maximum Operating Temperature +75°C
	Series Alpha Essentials Communication & Control
	Fire Behaviour Flame Retardant
	Standards Met CE
	Minimum Operating Temperature -20°C
