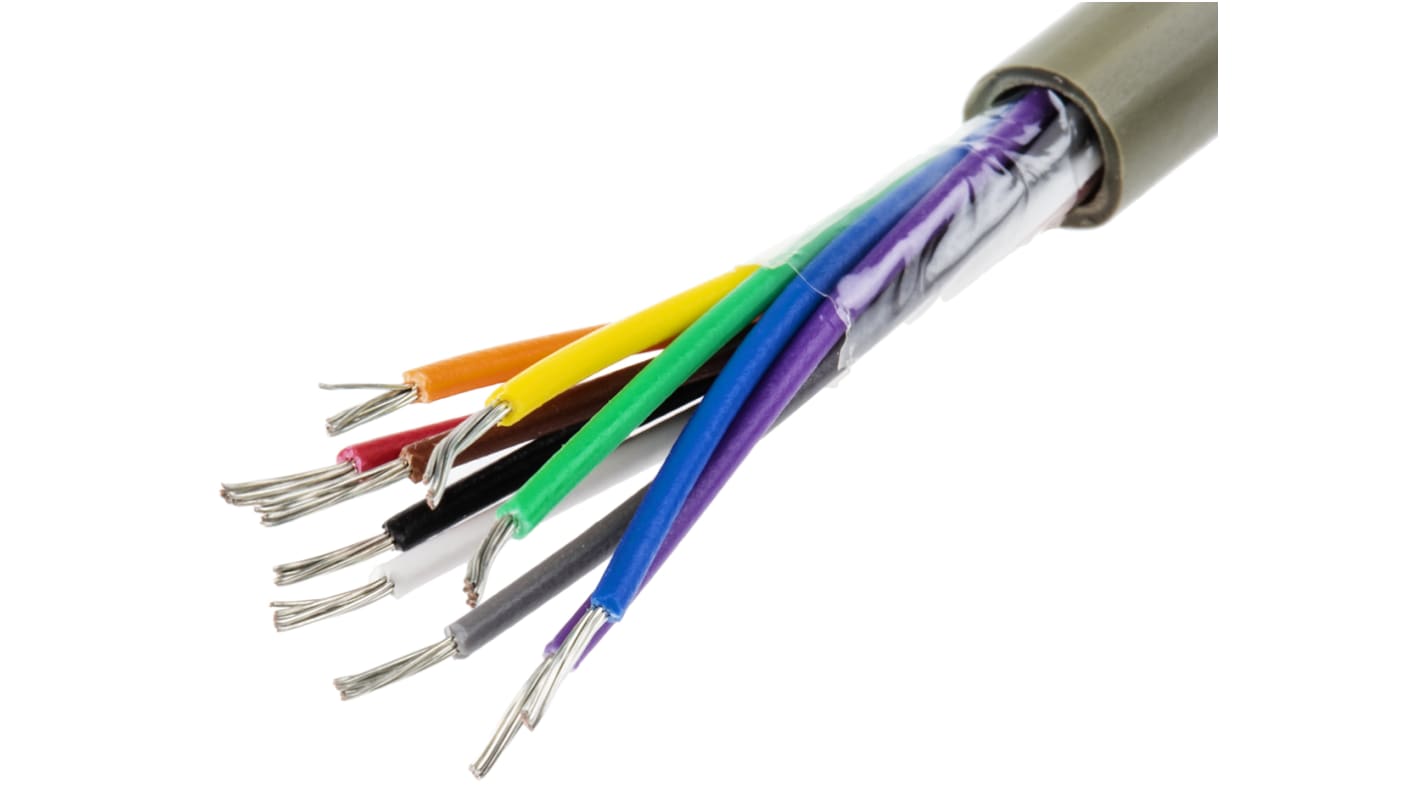

Alpha Wire Pro-Tekt Series Data Cable 2 Pairs 10 Cores 100 m Grey Sheath Polyvinyl Chloride
- RS庫存編號:
- 175-7345
- 製造零件編號:
- B953101 GE033
- 製造商:
- Alpha Wire
小計（1 卷，共 100 米）*
HK$3,157.50
訂單超過 HK$250.00 免費送貨
暫時缺貨
- 從 2027年3月01日 發貨
**需要更多嗎？**輸入您需要的數量，然後按一下「查看送貨日期」以查詢更多庫存和送貨詳細資訊。
卷 | 每卷 | 每米* |
|---|---|---|
| 1 + | HK$3,157.50 | HK$31.575 |
* 參考價格
- RS庫存編號:
- 175-7345
- 製造零件編號:
- B953101 GE033
- 製造商:
- Alpha Wire
規格
產品概覽和技術數據資料表
法例與合規
產品詳細資訊
透過選取一個或多個屬性來查找類似產品。
選取全部 | 屬性 | 值 |
|---|---|---|
| 品牌 | Alpha Wire | |
| Number of Pairs | 2 | |
| Product Type | Data Cable | |
| Number of Cores | 10 | |
| Cable Length | 100m | |
| Jacket Colour | Grey | |
| Outside Diameter | 6.17mm | |
| Minimum Operating Temperature | -30°C | |
| Jacket Material | Polyvinyl Chloride | |
| Maximum Operating Temperature | 105°C | |
| Standards/Approvals | CE, CSA Certified, UL | |
| Number of Strands | 7 | |
| Core Strands | 7 x 200 μm | |
| Conductor Material | Tin Copper Wire | |
| Series | Pro-Tekt | |
| Size of Strands | 200μm | |
| Voltage | 300V | |
| Fire Behaviour | Flame Retardant | |
| 選取全部 | ||
|---|---|---|
品牌 Alpha Wire | ||
Number of Pairs 2 | ||
Product Type Data Cable | ||
Number of Cores 10 | ||
Cable Length 100m | ||
Jacket Colour Grey | ||
Outside Diameter 6.17mm | ||
Minimum Operating Temperature -30°C | ||
Jacket Material Polyvinyl Chloride | ||
Maximum Operating Temperature 105°C | ||
Standards/Approvals CE, CSA Certified, UL | ||
Number of Strands 7 | ||
Core Strands 7 x 200 μm | ||
Conductor Material Tin Copper Wire | ||
Series Pro-Tekt | ||
Size of Strands 200μm | ||
Voltage 300V | ||
Fire Behaviour Flame Retardant | ||
Belden Pro-Tekt Series Data Cable, 50m Cable Length, Grey Jacket - B953101 GE321
This data cable is designed to transmit signals reliably in industrial and automation environments, providing a flame-retardant, PVC-sheathed solution for communication and control tasks. It is intended for installations requiring consistent electrical performance across a wide temperature range and where a compact, flexible connection is needed.
Features & Benefits
• Tin-plated copper conductors reduce corrosion and improve connection longevity
• Seven-strand copper core for enhanced flexibility during routing
• Rated for 300V to support typical low-voltage control systems
• Flame-retardant jacket to limit fire propagation in confined spaces
• Withstands continuous operation at 105°C to handle elevated thermal loads
• Operational down to -30°C for cold-room or outdoor installations
• Seven-strand copper core for enhanced flexibility during routing
• Rated for 300V to support typical low-voltage control systems
• Flame-retardant jacket to limit fire propagation in confined spaces
• Withstands continuous operation at 105°C to handle elevated thermal loads
• Operational down to -30°C for cold-room or outdoor installations
**Applications**
• Suitable for factory automation signal wiring
• Ideal for control panels in manufacturing equipment
• Used for communication links in electrical distribution racks
• Can be used for machine-to-machine sensor connections
• Suitable for installations requiring a flexible single-core link
• Ideal for control panels in manufacturing equipment
• Used for communication links in electrical distribution racks
• Can be used for machine-to-machine sensor connections
• Suitable for installations requiring a flexible single-core link
What conductor cross section is provided for current capacity considerations?
The cable uses a 0.23 mm² conductor cross section suitable for low-current signal and control circuits.
How does the cable’s construction affect cable handling during installation?
The seven-strand configuration gives increased pliability, aiding pull-throughs in conduit and around tight bends.
What environmental temperatures can the cable tolerate without performance loss?
It is designed to function down to -30°C and up to 105°C, accommodating both cold and high-temperature conditions.
What mechanical size should be considered when planning cable trays?
The cable has an outside diameter of 6.17 mm, useful for tray fill and conduit calculations.
