Alpha Wire Alpha Essentials Communication & Control Series Data Cable, 3 Pairs, 6 Cores, 0.23 mm², Screened, 24 AWG,

RS庫存編號:: 187-2063
製造零件編號:: 6363 SL005
製造商:: Alpha Wire

Alpha Wire Alpha Essentials Communication & Control Series Data Cable, 3 Pairs, 6 Cores, 0.23 mm², Screened, 24 AWG,

小計（1 卷，共 30 米）**

HK$2,019.39

210 現貨庫存，可於3工作日發貨。*

* 交貨日期可能會根據您選擇的數量和交貨地址而變更。

訂單金額滿 HK$250.00 即可享受免費送貨服務

即時庫存查詢

單位	每單位	每卷**
30 +	HK$67.313	HK$2,019.39

** 參考價格

比較

RS庫存編號:: 187-2063
製造零件編號:: 6363 SL005
製造商:: Alpha Wire

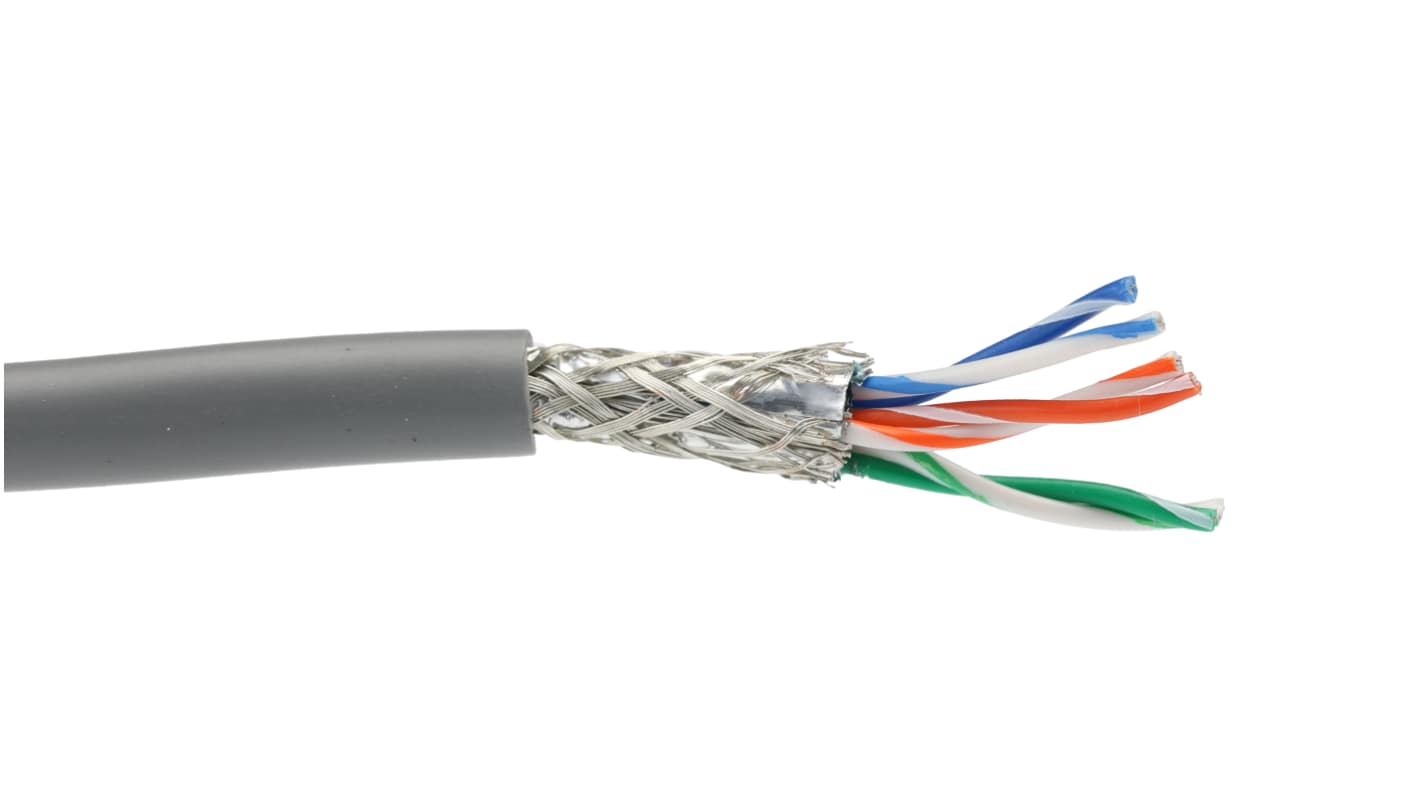

Belden Alpha Essentials Communication & Control Series Data Cable, 30m Length, 75 Ω Characteristic Impedance - 6363 SL005

This data cable is a high-performance solution within the control cable category. Designed for reliability, it features a substantial length of 30m, making it ideal for various electronic applications. With a twisted pair configuration and a robust PVC sheath, this cable supports efficient data transmission in automation and other electronic systems.

Features & Benefits

• 24 AWG twisted pair configuration enables reliable signal integrity
• Shielded design reduces electromagnetic interference
• Constructed with aluminium/Mylar tape for enhanced performance
• Operating temperature range from -20°C to +80°C ensures versatility
• CE certification guarantees compliance with European standards
• 75Ω characteristic impedance suitable for high-frequency applications

Applications

• Utilised in automation systems for dependable signal transmission
• Employed in control for robust data communication
• Suitable for connecting various electronic circuits in machinery
• Ideal for use in industrial environments requiring reliable connections

What voltage rating should I consider when deploying this cable?

It has a voltage rating of 300 VRMS, ensuring safe operation in standard applications.

How does the twisted pair construction contribute to its performance?

The twisted design minimises crosstalk between pairs, enhancing overall data integrity during transmission.

What are the implications of the cable being shielded?

The shielding reduces interference from external sources, which is crucial for maintaining clear data signals in complex environments.

Can this cable be used in outdoor applications?

It is recommended for indoor use primarily, as exposure to outdoor conditions may affect the PVC sheath over time.

What prevents performance degradation over temperature fluctuations?

The cable's design supports an operating temperature range of -20°C to +80°C, allowing it to function effectively under varying thermal conditions.

透過選取一個或多個屬性來查找類似產品。

選取全部	屬性	值
	品牌	Alpha Wire
	Number of Pairs	3
	Cross Sectional Area	0.23 mm²
	Number of Cores	6
	American Wire Gauge	24 AWG
	Screened/Unscreened	Screened
	Length	30m
	Shield Type	Aluminium/Mylar Tape
	Sheath Colour	Grey
	Cable Type	Control
	Outer Diameter	6.6mm
	Outer Sheath Material	PVC
	Cable Shape	Twisted Pair
	Characteristic Impedance	75 Ω
	Minimum Operating Temperature	-20°C
	Shielded/Unshielded	Shielded
	Standards Met	CE
	Maximum Operating Temperature	+80°C
	Series	Alpha Essentials Communication & Control
	Voltage Rating	300 V
	Core Strands	7/32 AWG

	選取全部
	品牌 Alpha Wire
	Number of Pairs 3
	Cross Sectional Area 0.23 mm²
	Number of Cores 6
	American Wire Gauge 24 AWG
	Screened/Unscreened Screened
	Length 30m
	Shield Type Aluminium/Mylar Tape
	Sheath Colour Grey
	Cable Type Control
	Outer Diameter 6.6mm
	Outer Sheath Material PVC
	Cable Shape Twisted Pair
	Characteristic Impedance 75 Ω
	Minimum Operating Temperature -20°C
	Shielded/Unshielded Shielded
	Standards Met CE
	Maximum Operating Temperature +80°C
	Series Alpha Essentials Communication & Control
	Voltage Rating 300 V
	Core Strands 7/32 AWG
