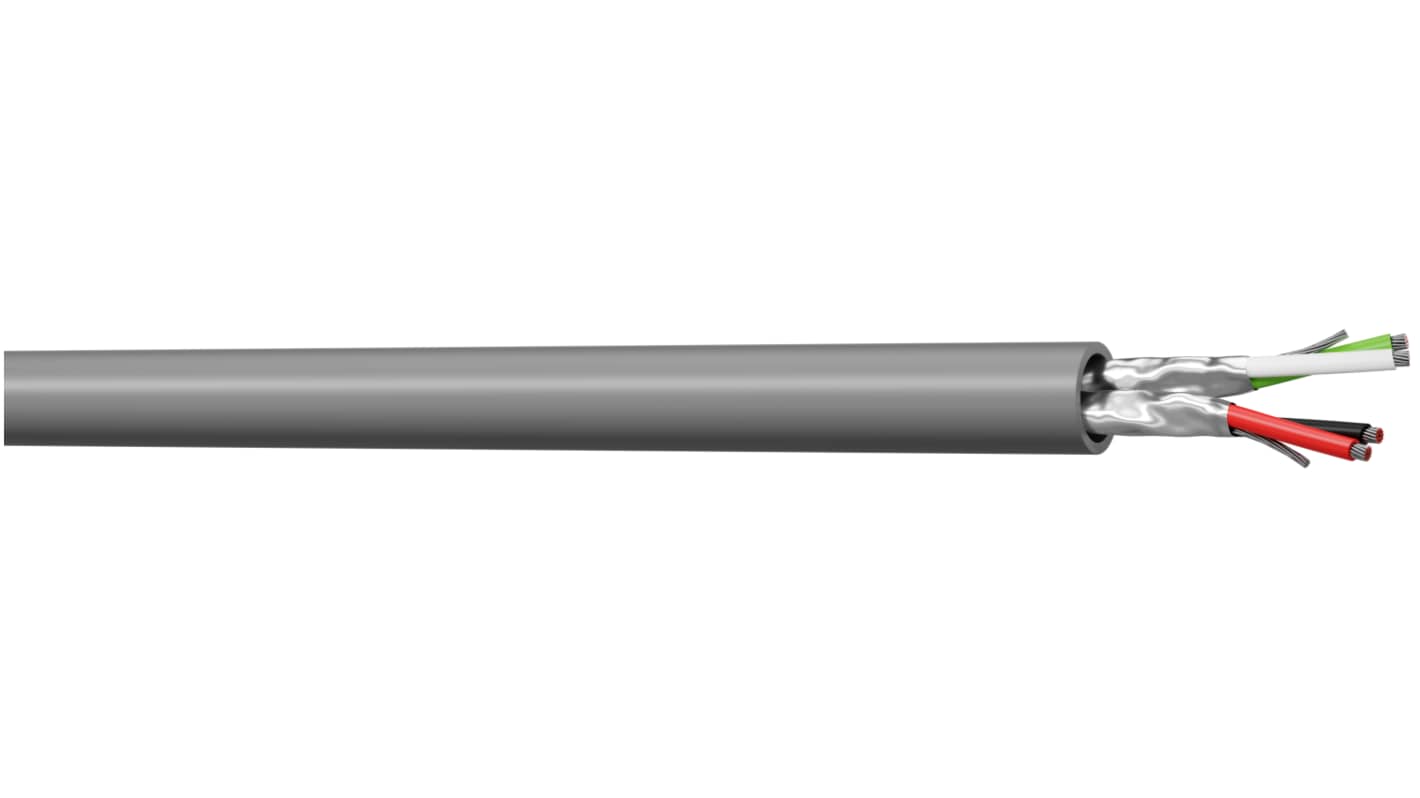

RS PRO LCAE-MPIS Series Data Cable, 2 Pairs, 100 m, Grey Sheath Low Smoke Zero Halogen
- RS庫存編號:
- 201-0523
- 製造商:
- RS PRO
可享批量折扣
小計(1 卷,共 100 米)*
HK$1,901.90
訂單超過 HK$250.00 免費送貨
有庫存
- 加上 9 件從 2026年4月20日 起發貨
**需要更多嗎?**輸入您需要的數量,然後按一下「查看送貨日期」以查詢更多庫存和送貨詳細資訊。
卷 | 每卷 | 每米* |
|---|---|---|
| 1 - 4 | HK$1,901.90 | HK$19.019 |
| 5 + | HK$1,565.30 | HK$15.653 |
* 參考價格
- RS庫存編號:
- 201-0523
- 製造商:
- RS PRO
規格
產品概覽和技術數據資料表
法例與合規
產品詳細資訊
透過選取一個或多個屬性來查找類似產品。
選取全部 | 屬性 | 值 |
|---|---|---|
| 品牌 | RS PRO | |
| Number of Pairs | 2 | |
| Product Type | Data Cable | |
| Cable Length | 100m | |
| Jacket Colour | Grey | |
| Outside Diameter | 4.6mm | |
| Jacket Material | Low Smoke Zero Halogen | |
| Minimum Operating Temperature | -20°C | |
| Conductor Type | Stranded | |
| Maximum Operating Temperature | 70°C | |
| Standards/Approvals | IEC 60754-2, IEC 60754-1 | |
| Core Strands | 7 | |
| Fire Behaviour | Low Smoke Zero Halogen (LSZH), Flame Retardant | |
| Voltage | 300V | |
| Series | LCAE-MPIS | |
| Conductor Material | Stranded Tinned Copper | |
| 選取全部 | ||
|---|---|---|
品牌 RS PRO | ||
Number of Pairs 2 | ||
Product Type Data Cable | ||
Cable Length 100m | ||
Jacket Colour Grey | ||
Outside Diameter 4.6mm | ||
Jacket Material Low Smoke Zero Halogen | ||
Minimum Operating Temperature -20°C | ||
Conductor Type Stranded | ||
Maximum Operating Temperature 70°C | ||
Standards/Approvals IEC 60754-2, IEC 60754-1 | ||
Core Strands 7 | ||
Fire Behaviour Low Smoke Zero Halogen (LSZH), Flame Retardant | ||
Voltage 300V | ||
Series LCAE-MPIS | ||
Conductor Material Stranded Tinned Copper | ||
- COO (Country of Origin):
- CN
RS PRO Multicore Cable
Introducing the range of RS PRO multicore cables, ideal for use across a wide variety of control and signal transmission applications. The flexible cable has a multicore that can be used for reliable cable connections in a neat and well-organised layout. By using this RS PRO high quality range of multicore cables, tripping hazards can be drastically reduced while improving the overall appearance of electrical equipment, especially in areas where there is little space, or the cable installation is visible to individuals.
Features and Benefits:
Applications:
Multicore cables are electrical cables that have more cores than standard power or coaxial cables and are available in various lengths and cores, dependent on the applications they are being used for. They are ideal for using when there is little space or for organising cable installations that require multiple cabling connections, especially within industrial or entertainment applications. Multicore cables are found in many different environments, for example:
Why RS PRO?
RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards; theyre only given the RS PRO seal of approval if were confident of their exceptional quality, which means you can be confident too.
Note:
Please be aware, although these cables are electrical, they are not to be regarded as power cables, or cables for the direct connection of equipment to mains power supplies.
