MICROWIRES TWJ Series Twisted Pair Cable 0.08 mm² 100 m Grey Sheath Perfluoroalkoxy Alkane
- RS庫存編號:
- 276-9904
- 製造零件編號:
- TWJ-2819.05
- 製造商:
- MICROWIRES
小計（1 卷，共 100 米）*
HK$15,185.84
库存信息目前无法访问 - 请稍候查看
卷 | 每卷 | 每米* |
|---|---|---|
| 1 + | HK$15,185.84 | HK$151.858 |
* 參考價格
- RS庫存編號:
- 276-9904
- 製造零件編號:
- TWJ-2819.05
- 製造商:
- MICROWIRES
規格
產品概覽和技術數據資料表
法例與合規
產品詳細資訊
透過選取一個或多個屬性來查找類似產品。
選取全部 | 屬性 | 值 |
|---|---|---|
| 品牌 | MICROWIRES | |
| Product Type | Twisted Pair Cable | |
| Cross Sectional Area | 0.08 mm² | |
| Cable Length | 100m | |
| Jacket Colour | Grey | |
| Conductor Type | Stranded | |
| Jacket Material | Perfluoroalkoxy Alkane | |
| Minimum Operating Temperature | -196°C | |
| Maximum Operating Temperature | 200°C | |
| Standards/Approvals | REACH Compliant, RoHS Compliant | |
| Voltage | 600V | |
| Series | TWJ | |
| Conductor Material | Copper | |
| Fire Behaviour | Self-extinguishing class: UL 94-V0 | |
| 選取全部 | ||
|---|---|---|
品牌 MICROWIRES | ||
Product Type Twisted Pair Cable | ||
Cross Sectional Area 0.08 mm² | ||
Cable Length 100m | ||
Jacket Colour Grey | ||
Conductor Type Stranded | ||
Jacket Material Perfluoroalkoxy Alkane | ||
Minimum Operating Temperature -196°C | ||
Maximum Operating Temperature 200°C | ||
Standards/Approvals REACH Compliant, RoHS Compliant | ||
Voltage 600V | ||
Series TWJ | ||
Conductor Material Copper | ||
Fire Behaviour Self-extinguishing class: UL 94-V0 | ||
- COO (Country of Origin):
- FR

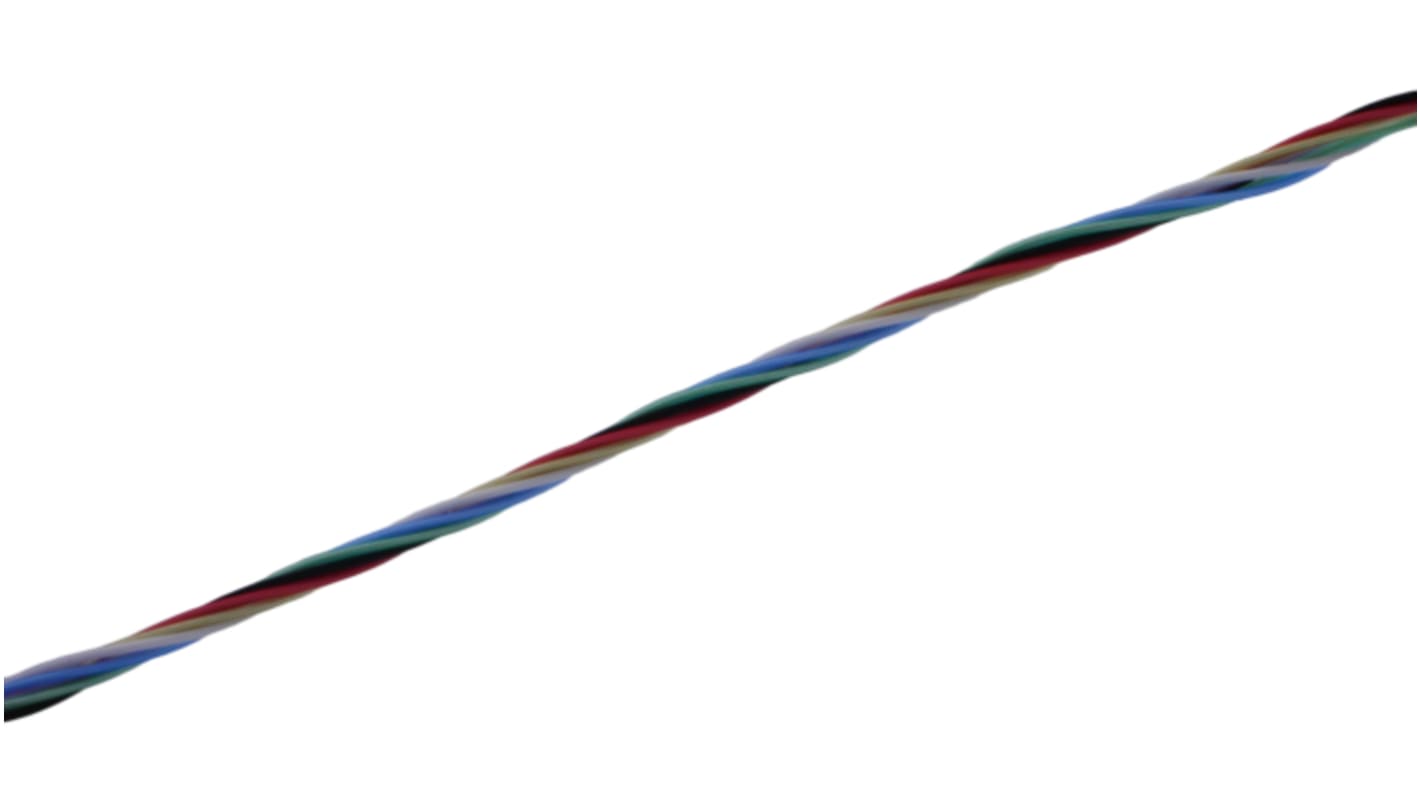

The MICROWIRES Miniature Twisted multi wire is a flexible wire with PFA insulation and is ROHS and REACH compliant.
UV resistant
Oil resistant
Water resistant
Standards
Fire Resistance UL94-V0
