Belden 9503NH Series Multipair Cable, 3 Pairs, 6 Cores, 0.2 mm², Screened, 24 AWG, 305m, Screened Shield, RS-232 Cable

RS庫存編號:: 382-7319
製造零件編號:: 9503NH.00305
製造商:: Belden

Belden 9503NH Series Multipair Cable, 3 Pairs, 6 Cores, 0.2 mm², Screened, 24 AWG, 305m, Screened Shield, RS-232 Cable

小計（1 盒，共 304 米）*

HK$6,688.00

訂單超過 HK$250.00 免費送貨

有庫存

2 件準備從其他地點送貨
加上 1 件從 2026年1月09日起發貨
加上 2 件從 2026年2月06日起發貨

**需要更多嗎？**輸入您需要的數量，然後按一下「查看送貨日期」以查詢更多庫存和送貨詳細資訊。

箱	每盒	每米*
1 +	HK$6,688.00	HK$22.00

* 參考價格

RS庫存編號:: 382-7319
製造零件編號:: 9503NH.00305
製造商:: Belden

規格

產品概覽和技術數據資料表

法例與合規

產品詳細資訊

透過選取一個或多個屬性來查找類似產品。

選取全部	屬性	值
	品牌	Belden
	Number of Pairs	3
	Cross Sectional Area	0.2 mm²
	Number of Cores	6
	American Wire Gauge	24 AWG
	Screened/Unscreened	Screened
	Length	305m
	Shield Type	F/UTP
	CPR Certification	Dca
	Sheath Colour	Chrome
	Cable Type	RS-232
	Outer Diameter	6.2mm
	Outer Sheath Material	LSZH
	Cable Shape	Twisted Pair
	Characteristic Impedance	75 Ohm
	Core Strands	7/32 AWG
	Minimum Operating Temperature	-15°C
	Fire Behaviour	Flame Retardant, Low Smoke Zero Halogen (LSZH)
	Voltage Rating	300 V
	Maximum Operating Temperature	+80°C
	Series	9503NH
	Shielded/Unshielded	Shielded
	Standards Met	Euroclass Dca-s1 d1 a1

	選取全部
	品牌 Belden
	Number of Pairs 3
	Cross Sectional Area 0.2 mm²
	Number of Cores 6
	American Wire Gauge 24 AWG
	Screened/Unscreened Screened
	Length 305m
	Shield Type F/UTP
	CPR Certification Dca
	Sheath Colour Chrome
	Cable Type RS-232
	Outer Diameter 6.2mm
	Outer Sheath Material LSZH
	Cable Shape Twisted Pair
	Characteristic Impedance 75 Ohm
	Core Strands 7/32 AWG
	Minimum Operating Temperature -15°C
	Fire Behaviour Flame Retardant, Low Smoke Zero Halogen (LSZH)
	Voltage Rating 300 V
	Maximum Operating Temperature +80°C
	Series 9503NH
	Shielded/Unshielded Shielded
	Standards Met Euroclass Dca-s1 d1 a1

COO (Country of Origin):: NL

Belden 9503NH Series Multipair Cable, 0.2mm² Cross Sectional Area, 305m Length - 9503NH.00305

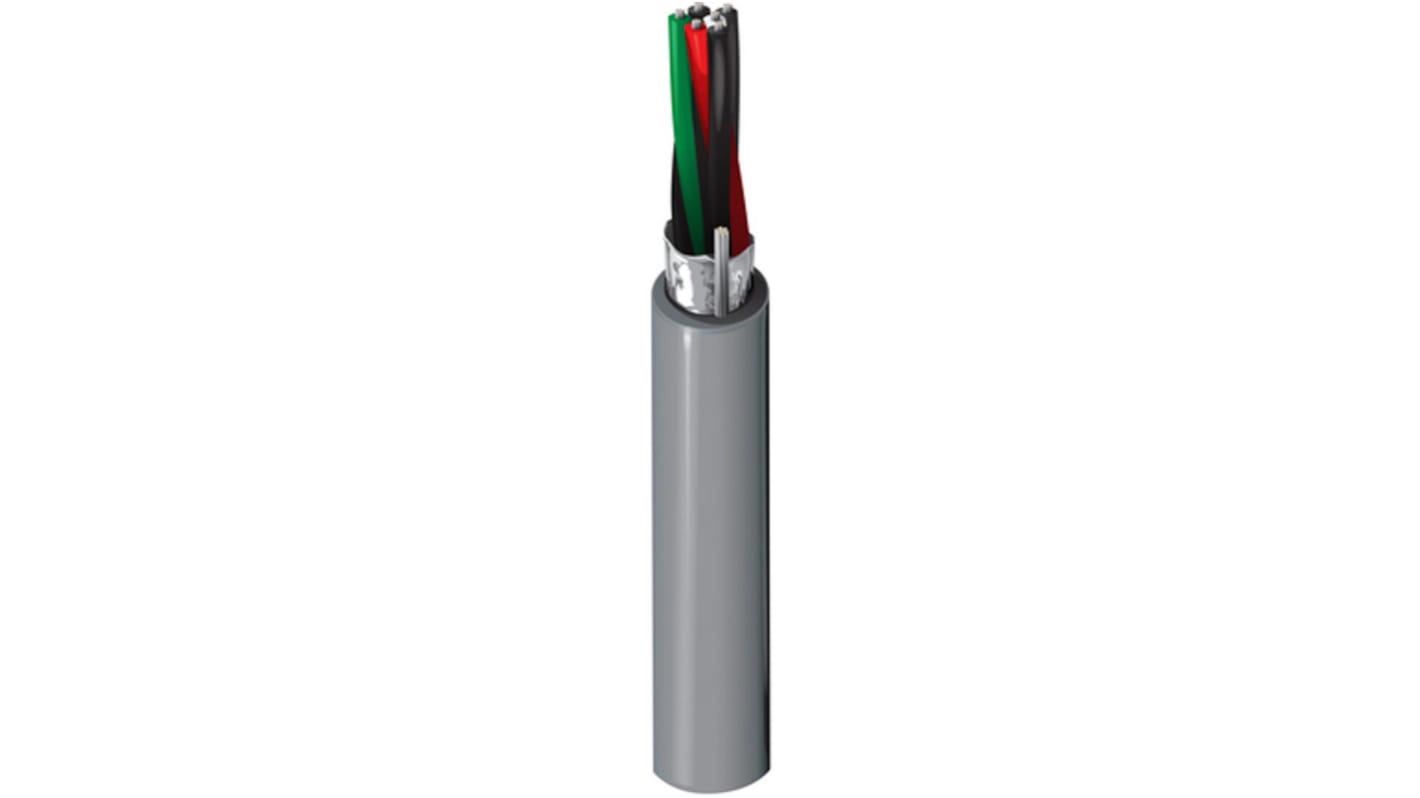

This multipair cable features three twisted pairs of 24 AWG stranded tinned copper conductors, designed specifically for RS-232 data transmission applications. The cable has an overall Beldfoil shield for enhanced signal integrity and is housed in a Low Smoke Zero Halogen (LSZH) jacket. At a length of 305m and with a maximum operating temperature of +80°C, it is suitable for both flexible and fixed installations. The cable’s outer diameter measures 6.2mm and is flame retardant, compliant with Euroclass Dca-s1,d1,a1 standards.

Features & Benefits

• Screened to reduce interference in high-frequency environments
• LSZH jacket minimises toxic emissions during combustion
• Rated for 300V, ensuring safe operation in various applications
• Impedance of 75 Ohm supports effective data transmission
• Flame retardant construction enhances safety in confined spaces
• Suitable for indoor use with sunlight resistance for additional versatility

Applications

• Suitable for instrumentation in industrial equipment
• Used for connecting computers and peripherals in automation systems
• Ideal for data communication in electronic devices
• Performs well in mechanical environments requiring durable wiring
• Effective in installations needing compliance with stringent fire safety standards

What is the typical voltage rating for this type of cable?

The voltage rating is 300V, ensuring safe usage in various electronic applications without risking breakdown.

How does the shielding contribute to performance?

The overall Beldfoil shield provides 100% coverage, minimising external interference and maintaining signal integrity for reliable data transmission.

What temperatures can this cable operate in?

This cable can operate in a temperature range from -15°C to +80°C, making it versatile for different installation conditions and environments.

Are there specific installation guidelines to follow?

It is recommended to maintain a minimum bend radius of 60.7mm during installation to prevent damage to the cable and ensure optimum performance.

Standards

UL2464; NEC CMG (95xx) IEC 332-3C (95xx NH)
