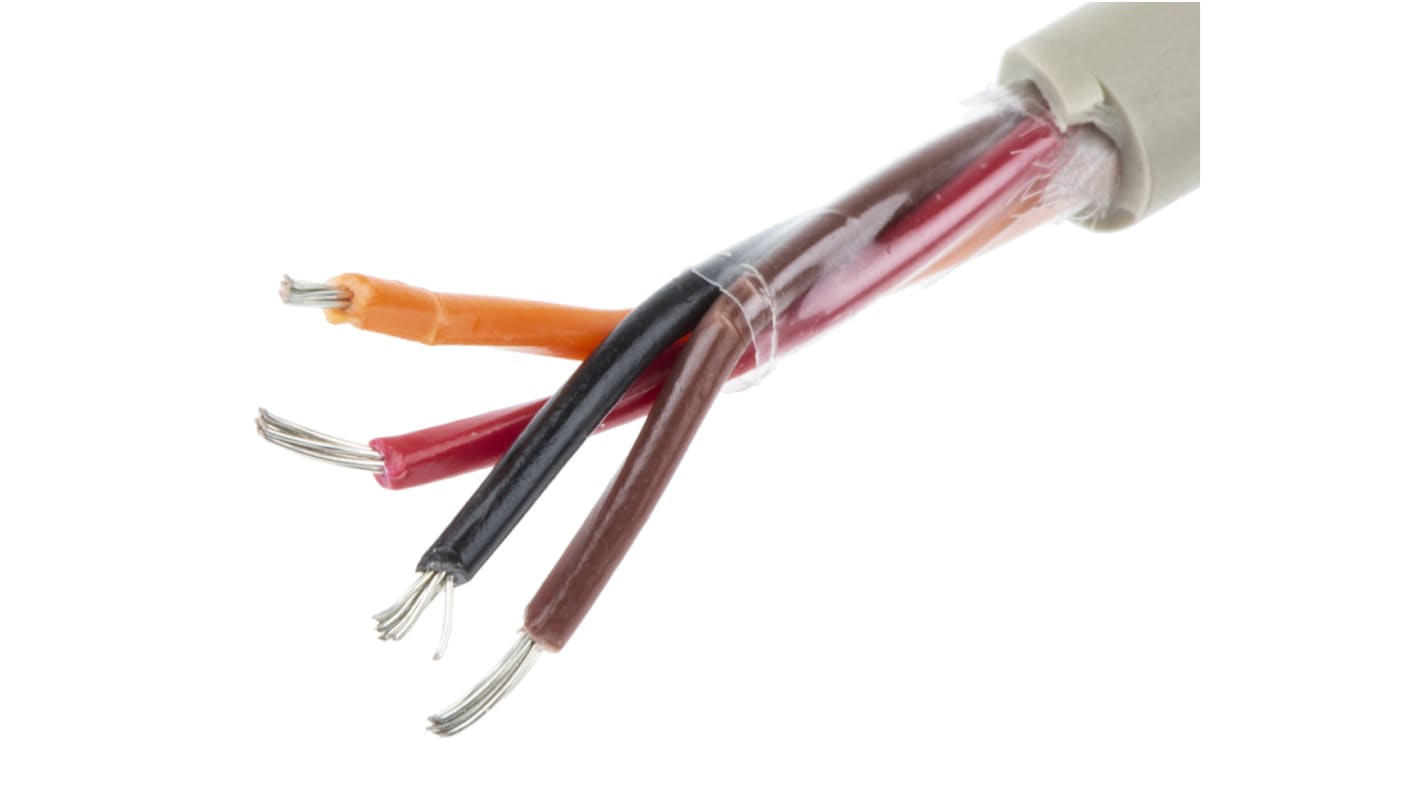

Alpha Wire Pro-Tekt Series Data Cable 4 Cores 0.14 mm² 50 m Grey Sheath Polyvinyl Chloride
- RS庫存編號:
- 740-4493
- 製造零件編號:
- B952041 GE321
- 製造商:
- Alpha Wire
小計（1 卷，共 50 米）*
HK$698.10
訂單超過 HK$250.00 免費送貨
有庫存
- 12 件準備從其他地點送貨
**需要更多嗎？**輸入您需要的數量，然後按一下「查看送貨日期」以查詢更多庫存和送貨詳細資訊。
卷 | 每卷 | 每米* |
|---|---|---|
| 1 + | HK$698.10 | HK$13.962 |
* 參考價格
- RS庫存編號:
- 740-4493
- 製造零件編號:
- B952041 GE321
- 製造商:
- Alpha Wire
規格
產品概覽和技術數據資料表
法例與合規
產品詳細資訊
透過選取一個或多個屬性來查找類似產品。
選取全部 | 屬性 | 值 |
|---|---|---|
| 品牌 | Alpha Wire | |
| Product Type | Data Cable | |
| Cross Sectional Area | 0.14mm² | |
| Number of Cores | 4 | |
| Cable Length | 50m | |
| Jacket Colour | Grey | |
| Outside Diameter | 4.09mm | |
| Jacket Material | Polyvinyl Chloride | |
| Minimum Operating Temperature | -30°C | |
| Conductor Type | Copper | |
| Maximum Operating Temperature | 105°C | |
| Standards/Approvals | CE, CSA Certified, UL | |
| Size of Strands | 160μm | |
| Conductor Material | Tin Copper Wire | |
| Voltage | 300V | |
| Series | Pro-Tekt | |
| Core Strands | 7 x 160 μm | |
| Number of Strands | 7 | |
| Fire Behaviour | Flame Retardant | |
| 選取全部 | ||
|---|---|---|
品牌 Alpha Wire | ||
Product Type Data Cable | ||
Cross Sectional Area 0.14mm² | ||
Number of Cores 4 | ||
Cable Length 50m | ||
Jacket Colour Grey | ||
Outside Diameter 4.09mm | ||
Jacket Material Polyvinyl Chloride | ||
Minimum Operating Temperature -30°C | ||
Conductor Type Copper | ||
Maximum Operating Temperature 105°C | ||
Standards/Approvals CE, CSA Certified, UL | ||
Size of Strands 160μm | ||
Conductor Material Tin Copper Wire | ||
Voltage 300V | ||
Series Pro-Tekt | ||
Core Strands 7 x 160 μm | ||
Number of Strands 7 | ||
Fire Behaviour Flame Retardant | ||
Belden Pro-Tekt Series Data Cable, 50m Length, 300V Voltage - B952041 GE321
This data cable is designed to transmit signals reliably within industrial and automation contexts. It combines a multi-strand copper conductor with a PVC outer sheath to provide stable electrical connectivity and Basic mechanical protection for control, communication and instrumentation wiring over a 50m length.
Features & Benefits
• 0.14 mm² conductor area for consistent current handling
• 7-strand copper construction for improved Flex performance
• Tin-plated copper conductors to reduce corrosion risk
• Flame-retardant jacket limits fire propagation
• 300V rating supports standard control-voltage networks
• Operating range from -30 to 105 °C for harsh environments
• 7-strand copper construction for improved Flex performance
• Tin-plated copper conductors to reduce corrosion risk
• Flame-retardant jacket limits fire propagation
• 300V rating supports standard control-voltage networks
• Operating range from -30 to 105 °C for harsh environments
**Applications**
• Suitable for factory automation signal wiring
• Ideal for inter-panel communication cabling
• Used for sensor and actuator connections in machinery
• Can be used for control-cabinet internal wiring
• Used for low-voltage instrumentation circuits
• Ideal for inter-panel communication cabling
• Used for sensor and actuator connections in machinery
• Can be used for control-cabinet internal wiring
• Used for low-voltage instrumentation circuits
What type of conductor finish is used and why does it matter?
The conductor surfaces are tinned, which enhances resistance to oxidation and makes soldering and termination in field assemblies easier.
How does the cable jacket behave under elevated temperatures?
The PVC sheath maintains mechanical integrity up to 105 °C while offering flame-retardant characteristics to reduce fire spread in confined installations.
Is this cable suitable for flexible routing through moving parts?
The seven-strand conductor provides greater flexibility than solid cores, making it appropriate for limited-movement runs and frequent bending during installation.
What approvals does the cable carry for system compatibility?
It meets recognised CE, UL and CSA approvals, enabling use in systems that require widely accepted conformity marks.
