透過選取一個或多個屬性來查找類似產品。

選取全部	屬性	值
	品牌	Alpha Wire
	Product Type	Data Cable
	Cross Sectional Area	0.23 mm²
	Cable Length	50m
	Jacket Colour	Grey
	Outside Diameter	5.54mm
	Conductor Type	Stranded
	Minimum Operating Temperature	-30°C
	Jacket Material	Polyvinyl Chloride
	Maximum Operating Temperature	105°C
	Standards/Approvals	CE, CSA Certified, UL
	Fire Behaviour	Flame Retardant
	Core Strands	7
	Conductor Material	Tin Copper Wire
	Series	Pro-Tekt
	Voltage	300V

	選取全部
	品牌 Alpha Wire
	Product Type Data Cable
	Cross Sectional Area 0.23 mm²
	Cable Length 50m
	Jacket Colour Grey
	Outside Diameter 5.54mm
	Conductor Type Stranded
	Minimum Operating Temperature -30°C
	Jacket Material Polyvinyl Chloride
	Maximum Operating Temperature 105°C
	Standards/Approvals CE, CSA Certified, UL
	Fire Behaviour Flame Retardant
	Core Strands 7
	Conductor Material Tin Copper Wire
	Series Pro-Tekt
	Voltage 300V

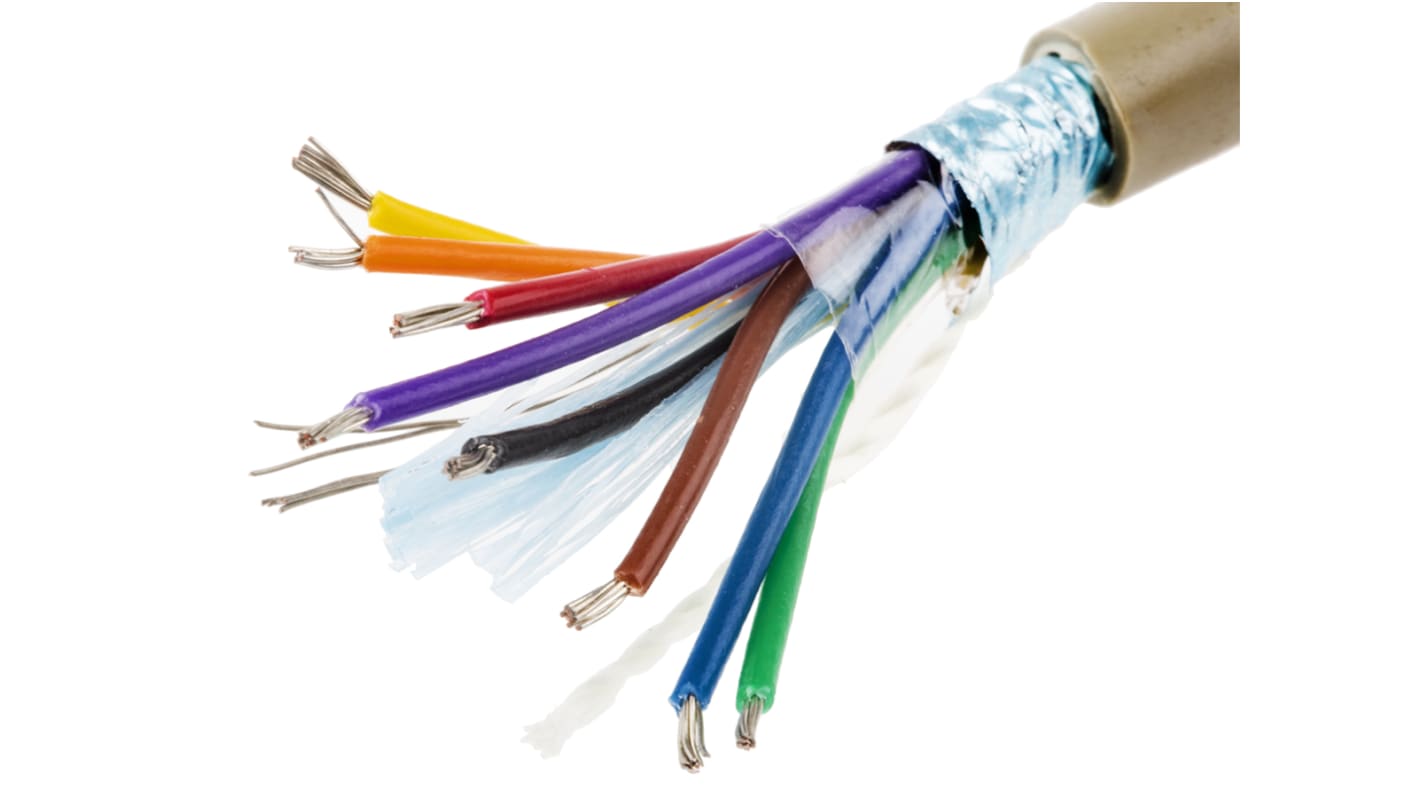

Belden ProTekt Series Data Cable, 50m Length, 24 AWG Wire Gauge - B953082 GE321

This screened data cable from Belden is designed to meet demanding networking needs. With a multicore design featuring 8 cores, it ensures optimal performance for various applications. The cable has a length of 50m and is constructed with a durable grey PVC sheath, offering both flexibility and protection.

Features & Benefits

• Flame retardant properties enhance safety during operation

• Shielded design reduces interference for reliable data transmission

• 0.23 mm² cross-sectional area supports efficient power delivery

• Maximum operating temperature of +105 °C for high-temperature applications

• Voltage rated at 300V ensures compatibility with most devices

• Complies with CE, CSA, and UL standards for quality assurance

Applications

• Used for high-speed data transmission in automation systems

• Ideal for networking in commercial electrical infrastructures

• Suitable for installations requiring durable and flame retardant cable

• Applied in environments with extreme temperature fluctuations

• Utilised in communications systems requiring shielded cables

What is the significance of the foil shielding in this cable?

The foil shielding effectively minimises electromagnetic interference, ensuring clearer signals and reducing data loss, which is critical in high-performance environments.

How does the flame retardant feature impact usage in commercial settings?

This feature enhances safety by preventing the spread of fire in case of short circuits, making it suitable for use in commercial buildings and industrial applications.

What benefits does a 24 AWG specification provide?

A 24 AWG specification offers a good balance between flexibility and resistance, making it suitable for various installations while maintaining robust performance against electrical demands.

What temperature range can this cable operate within?

The cable can operate between -30 °C and +105 °C, making it versatile for use in both cold and high-temperature environments without performance degradation.

Alpha Wire Pro-Tekt Series Data Cable, 0.23 mm², 50 m, Grey Sheath Polyvinyl Chloride
