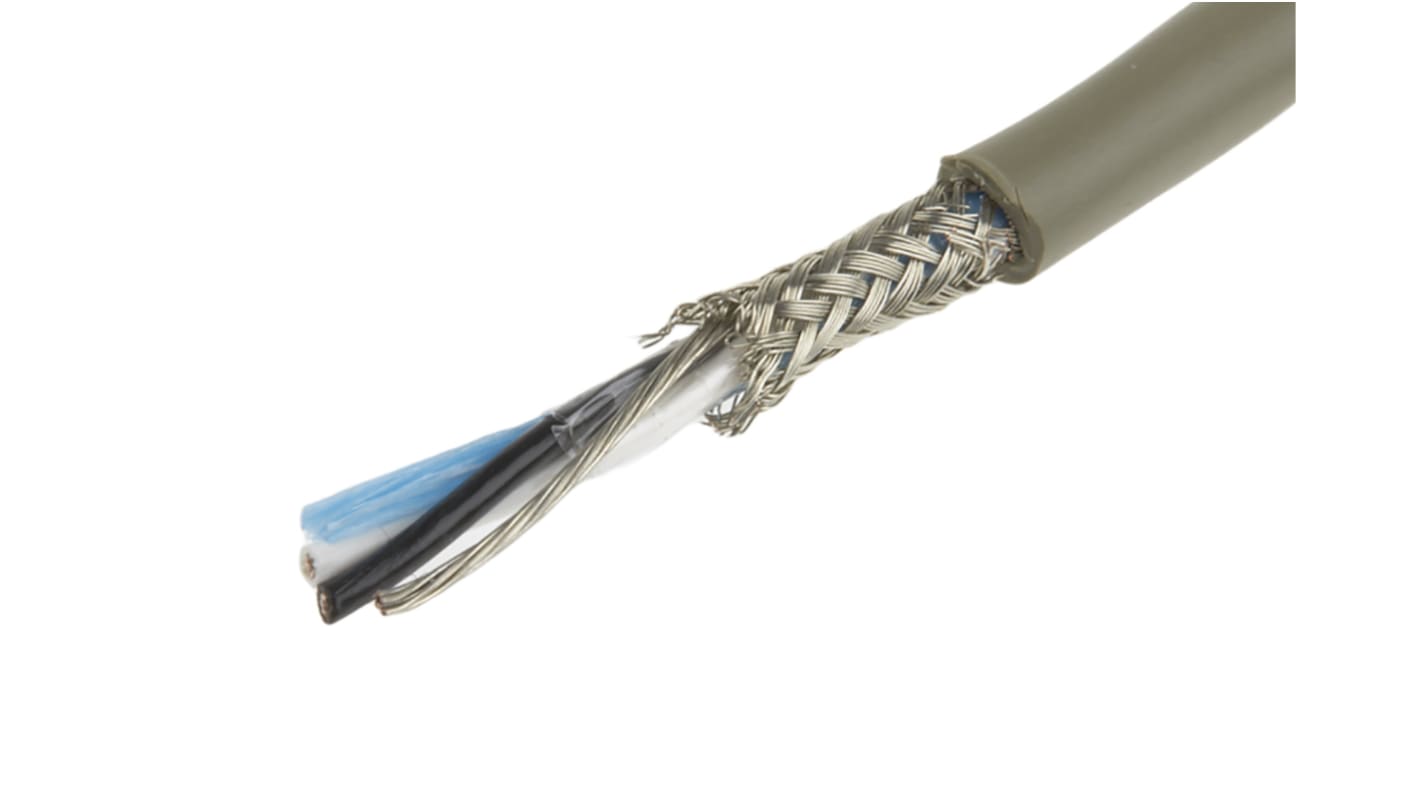

Alpha Wire ProTekt Series Data Cable, 1 Pairs, 2 Cores, 0.23 mm², Screened, 24 AWG, 50m, Screened Shield, Control Cable
- RS庫存編號:
- 740-4878
- Distrelec 貨號:
- 304-08-620
- 製造零件編號:
- B963013 GE321
- 製造商:
- Alpha Wire
小計（1 卷，共 50 米）*
HK$1,341.90
订单金额满 HK$250.00 享免费送货服务
有库存
- 另外 4 件在 2025年8月25日 发货
- 另外 5 件在 2025年10月07日 发货
**需要更多产品？**输入您需要的数量，点击“查看送货日期”，查看库存和送货信息。
卷 | 每卷 | 每米* |
|---|---|---|
| 1 + | HK$1,341.90 | HK$26.838 |
* 參考價格
- RS庫存編號:
- 740-4878
- Distrelec 貨號:
- 304-08-620
- 製造零件編號:
- B963013 GE321
- 製造商:
- Alpha Wire
透過選取一個或多個屬性來查找類似產品。
選取全部 | 屬性 | 值 |
|---|---|---|
| 品牌 | Alpha Wire | |
| Number of Pairs | 1 | |
| Cross Sectional Area | 0.23 mm² | |
| Number of Cores | 2 | |
| American Wire Gauge | 24 AWG | |
| Screened/Unscreened | Screened | |
| Length | 50m | |
| Shield Type | Braid | |
| Sheath Colour | Grey | |
| Cable Type | Control | |
| Outer Diameter | 4.5mm | |
| Outer Sheath Material | PVC | |
| Cable Shape | Twisted Pair | |
| Characteristic Impedance | 54 Ω | |
| Minimum Operating Temperature | -30°C | |
| Shielded/Unshielded | Shielded | |
| Core Strands | 7/32 AWG | |
| Fire Behaviour | Flame Retardant | |
| Voltage Rating | 300 V | |
| Maximum Operating Temperature | +105°C | |
| Series | ProTekt | |
| Standards Met | CE, CSA Certified, UL | |
選取全部 | ||
|---|---|---|
品牌 Alpha Wire | ||
Number of Pairs 1 | ||
Cross Sectional Area 0.23 mm² | ||
Number of Cores 2 | ||
American Wire Gauge 24 AWG | ||
Screened/Unscreened Screened | ||
Length 50m | ||
Shield Type Braid | ||
Sheath Colour Grey | ||
Cable Type Control | ||
Outer Diameter 4.5mm | ||
Outer Sheath Material PVC | ||
Cable Shape Twisted Pair | ||
Characteristic Impedance 54 Ω | ||
Minimum Operating Temperature -30°C | ||
Shielded/Unshielded Shielded | ||
Core Strands 7/32 AWG | ||
Fire Behaviour Flame Retardant | ||
Voltage Rating 300 V | ||
Maximum Operating Temperature +105°C | ||
Series ProTekt | ||
Standards Met CE, CSA Certified, UL | ||
