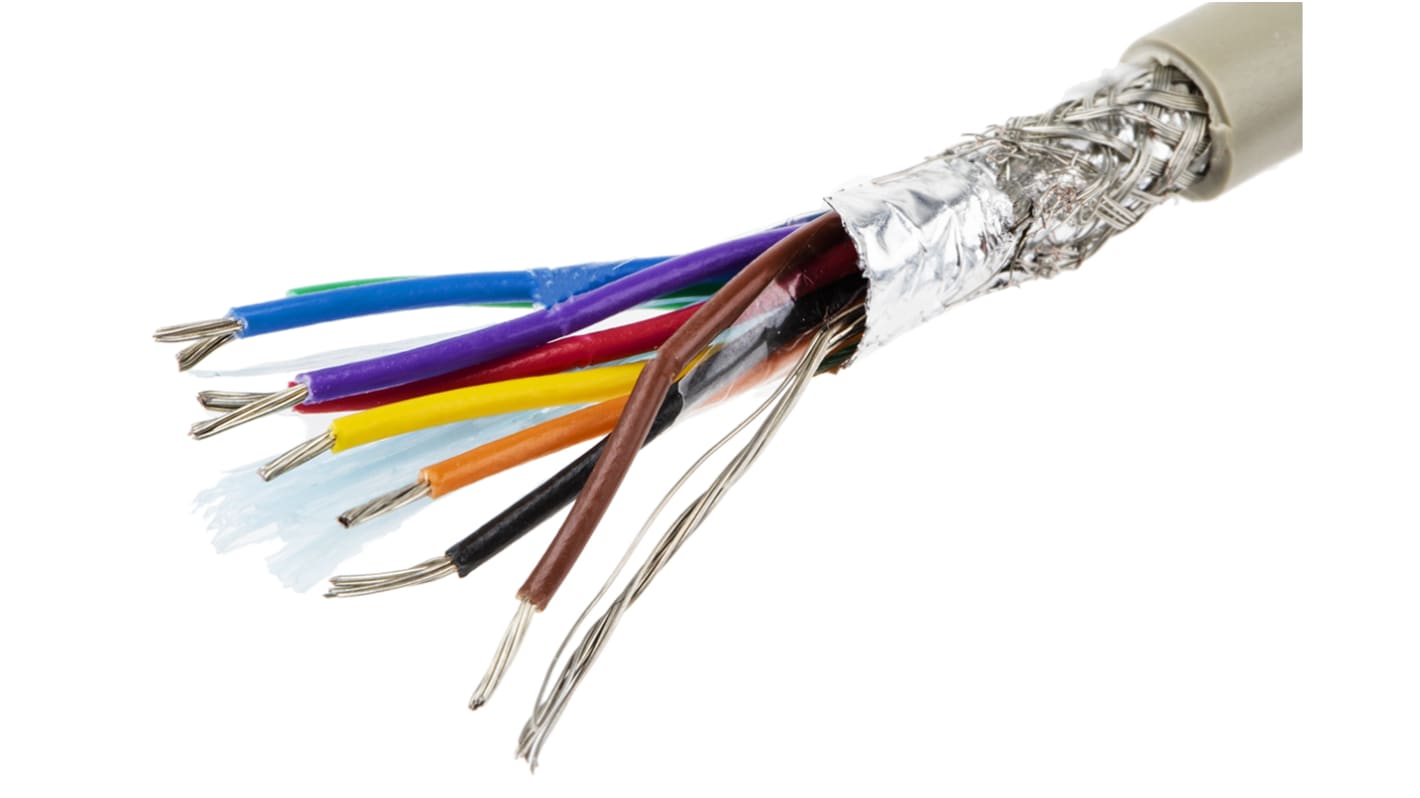

Alpha Wire ProTekt Series Data Cable, 8 Cores, 0.23 mm², Screened, 24 AWG, 50m, Screened Shield
- RS庫存編號:
- 740-4702
- 製造零件編號:
- B953084 GE321
- 製造商:
- Alpha Wire
小計（1 卷，共 50 米）*
HK$2,095.10
訂單超過 HK$250.00 免費送貨
有庫存
- 6 件準備從其他地點送貨
**需要更多嗎？**輸入您需要的數量，然後按一下「查看送貨日期」以查詢更多庫存和送貨詳細資訊。
卷 | 每卷 | 每米* |
|---|---|---|
| 1 + | HK$2,095.10 | HK$41.902 |
* 參考價格
- RS庫存編號:
- 740-4702
- 製造零件編號:
- B953084 GE321
- 製造商:
- Alpha Wire
規格
產品概覽和技術數據資料表
法例與合規
產品詳細資訊
透過選取一個或多個屬性來查找類似產品。
選取全部 | 屬性 | 值 |
|---|---|---|
| 品牌 | Alpha Wire | |
| Cross Sectional Area | 0.23 mm² | |
| Number of Cores | 8 | |
| American Wire Gauge | 24 AWG | |
| Screened/Unscreened | Screened | |
| Length | 50m | |
| Shield Type | Foil | |
| Sheath Colour | Grey | |
| Outer Diameter | 6.15mm | |
| Outer Sheath Material | PVC | |
| Cable Shape | Multicore | |
| Standards Met | CE, CSA Certified, UL | |
| Fire Behaviour | Flame Retardant | |
| Core Strands | 7/0.20 mm | |
| Shielded/Unshielded | Shielded | |
| Minimum Operating Temperature | -30°C | |
| Series | ProTekt | |
| Maximum Operating Temperature | +105°C | |
| Voltage Rating | 300 V | |
| 選取全部 | ||
|---|---|---|
品牌 Alpha Wire | ||
Cross Sectional Area 0.23 mm² | ||
Number of Cores 8 | ||
American Wire Gauge 24 AWG | ||
Screened/Unscreened Screened | ||
Length 50m | ||
Shield Type Foil | ||
Sheath Colour Grey | ||
Outer Diameter 6.15mm | ||
Outer Sheath Material PVC | ||
Cable Shape Multicore | ||
Standards Met CE, CSA Certified, UL | ||
Fire Behaviour Flame Retardant | ||
Core Strands 7/0.20 mm | ||
Shielded/Unshielded Shielded | ||
Minimum Operating Temperature -30°C | ||
Series ProTekt | ||
Maximum Operating Temperature +105°C | ||
Voltage Rating 300 V | ||
Pro-Tekt 300 V Foil/Braid, Multiconductor
Conductors: 8, Black, Brown, Red, Orange, Yellow, Green, Blue, Violet
Nominal Diameter: 0.242 inch (6.15 mm)
Jacket Thickness: 0.032 inch (0.81 mm)
Stranding: 7/32
Insulation Thickness: 0.010 (0.25 mm)
24 AWG (0.23 mm²)
Jacket Colour: Grey
Nominal Diameter: 0.242 inch (6.15 mm)
Jacket Thickness: 0.032 inch (0.81 mm)
Stranding: 7/32
Insulation Thickness: 0.010 (0.25 mm)
24 AWG (0.23 mm²)
Jacket Colour: Grey
