Alpha Wire ProTekt Series Data Cable, 2 Pairs, 4 Cores, 0.35 mm², Screened, 22 AWG, 50m, Foil and Braid Shield

RS庫存編號:: 740-4963
製造零件編號:: B964024 GE321
製造商:: Alpha Wire

Alpha Wire ProTekt Series Data Cable, 2 Pairs, 4 Cores, 0.35 mm², Screened, 22 AWG, 50m, Foil and Braid Shield

小計（1 卷，共 50 米）*

HK$1,465.80

訂單超過 HK$250.00 免費送貨

有庫存

2 件準備從其他地點送貨
加上 2 件準備從其他倉庫發貨
加上 2 件從 2025年12月23日起發貨

**需要更多嗎？**輸入您需要的數量，然後按一下「查看送貨日期」以查詢更多庫存和送貨詳細資訊。

卷	每卷	每米*
1 +	HK$1,465.80	HK$29.316

* 參考價格

RS庫存編號:: 740-4963
製造零件編號:: B964024 GE321
製造商:: Alpha Wire

規格

產品概覽和技術數據資料表

法例與合規

產品詳細資訊

透過選取一個或多個屬性來查找類似產品。

選取全部	屬性	值
	品牌	Alpha Wire
	Number of Pairs	2
	Cross Sectional Area	0.35 mm²
	Number of Cores	4
	American Wire Gauge	22 AWG
	Screened/Unscreened	Screened
	Length	50m
	Shield Type	Foil and Braid
	Sheath Colour	Grey
	Outer Diameter	6.58mm
	Outer Sheath Material	PVC
	Cable Shape	Twisted Pair
	Characteristic Impedance	57 Ω
	Voltage Rating	300 V
	Standards Met	CE, CSA Certified, UL
	Fire Behaviour	Flame Retardant
	Minimum Operating Temperature	-30°C
	Core Strands	7/30 AWG
	Series	ProTekt
	Maximum Operating Temperature	+105°C

	選取全部
	品牌 Alpha Wire
	Number of Pairs 2
	Cross Sectional Area 0.35 mm²
	Number of Cores 4
	American Wire Gauge 22 AWG
	Screened/Unscreened Screened
	Length 50m
	Shield Type Foil and Braid
	Sheath Colour Grey
	Outer Diameter 6.58mm
	Outer Sheath Material PVC
	Cable Shape Twisted Pair
	Characteristic Impedance 57 Ω
	Voltage Rating 300 V
	Standards Met CE, CSA Certified, UL
	Fire Behaviour Flame Retardant
	Minimum Operating Temperature -30°C
	Core Strands 7/30 AWG
	Series ProTekt
	Maximum Operating Temperature +105°C

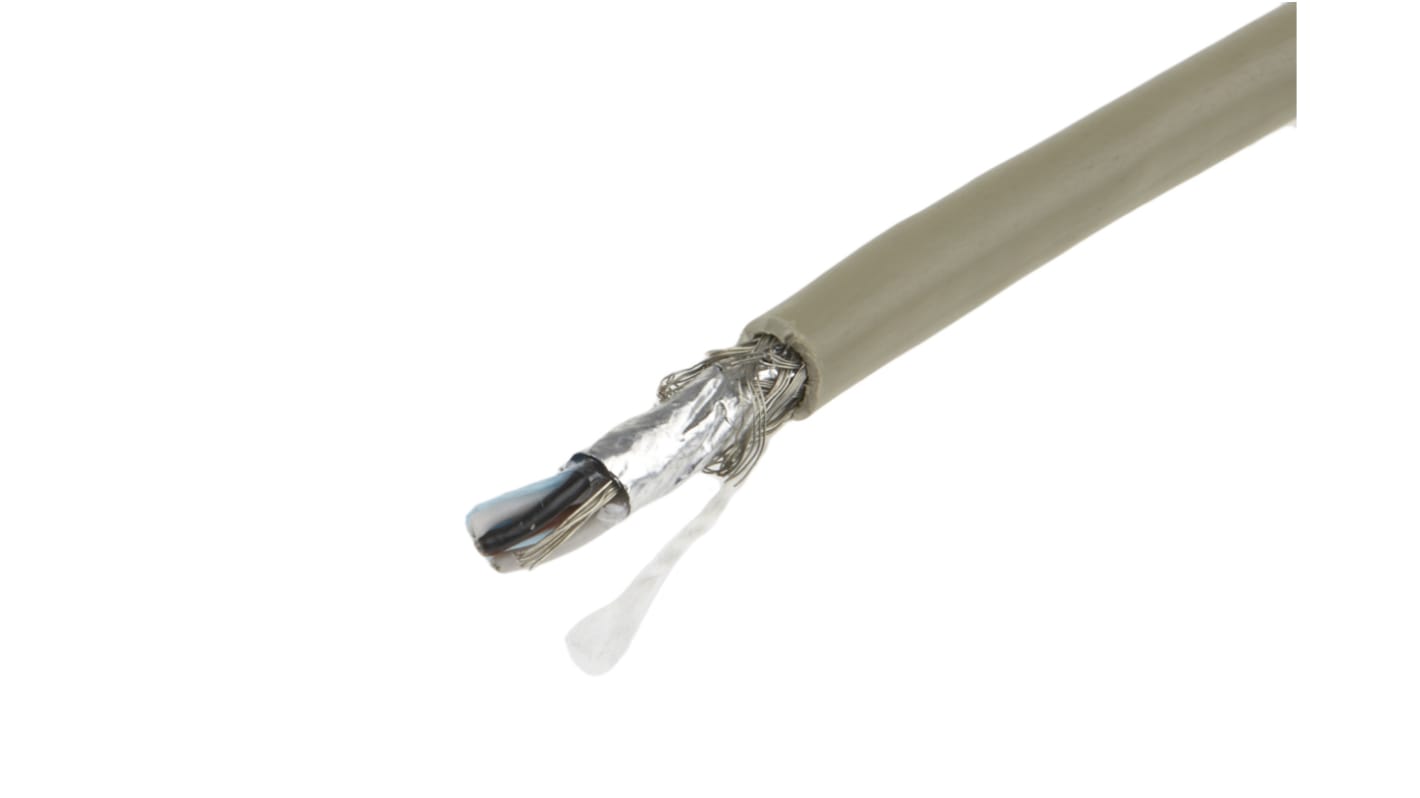

Belden ProTekt Series Data Cable, 50m Length, 0.35mm² Cross Sectional Area - B964024 GE321

This data cable is expertly engineered for high-performance applications. Designed by Belden, it features a length of 50 m, with a twisted pair configuration that ensures reliable signal transmission. The outer diameter of 6.58 mm and PVC sheath material make it both durable and flexible for various installation needs.

Features & Benefits

• Screened construction minimises electromagnetic interference
• 22 AWG cable provides a robust connectivity option
• Flame retardant properties enhance safety in critical environments
• Operating temperature range of -30°C to +105°C ensures versatility
• Characteristic impedance of 57 Ω supports effective data transfer
• PVC sheath cable ensures endurance against environmental factors

Applications

• Used in automation systems for efficient data communication
• Ideal for monitoring equipment in industrial settings
• Applied in electronic devices requiring reliable connectivity
• Suitable for low voltage in mechanical setups

What measures are in place to ensure this cable can handle demanding environments?

The cable's flame retardant characteristics, along with a wide operating temperature range from -30°C to +105°C, make it capable of enduring harsh conditions while maintaining performance.

How does the construction of this cable reduce signal interference?

The screened design utilises A/P/A tape shielding, significantly reducing the effects of electromagnetic interference, which is essential for maintaining data integrity in complex systems.

What specific loads can this cable tolerate during installation?

It can withstand a maximum pull tension of 14 kg, ensuring it can be safely installed without compromising performance.

What is the significance of the twisted pair configuration in this data cable?

The twisted pair construction minimises crosstalk and ensures high-quality signal transmission, making it ideal for data communication purposes.

How does the PVC sheath affect the overall durability of the cable?

The PVC sheath provides excellent resistance to environmental conditions, enhancing the cable’s longevity and making it suitable for a range of applications.
